Find Pneumatic Air Cylinders & Double Acting Pneumatic Cylinder

Product Information

Detailed Description

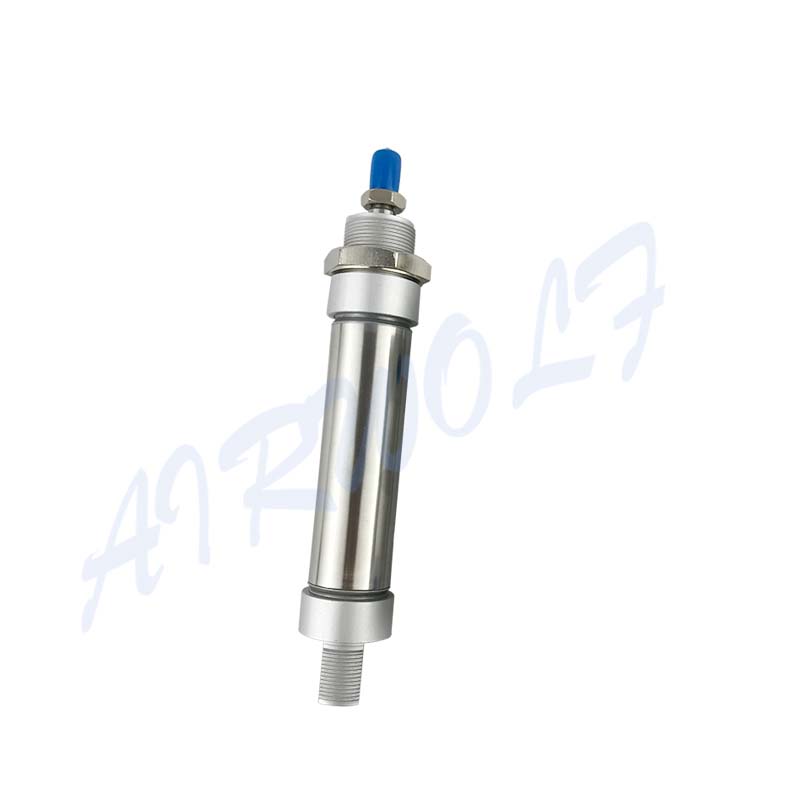

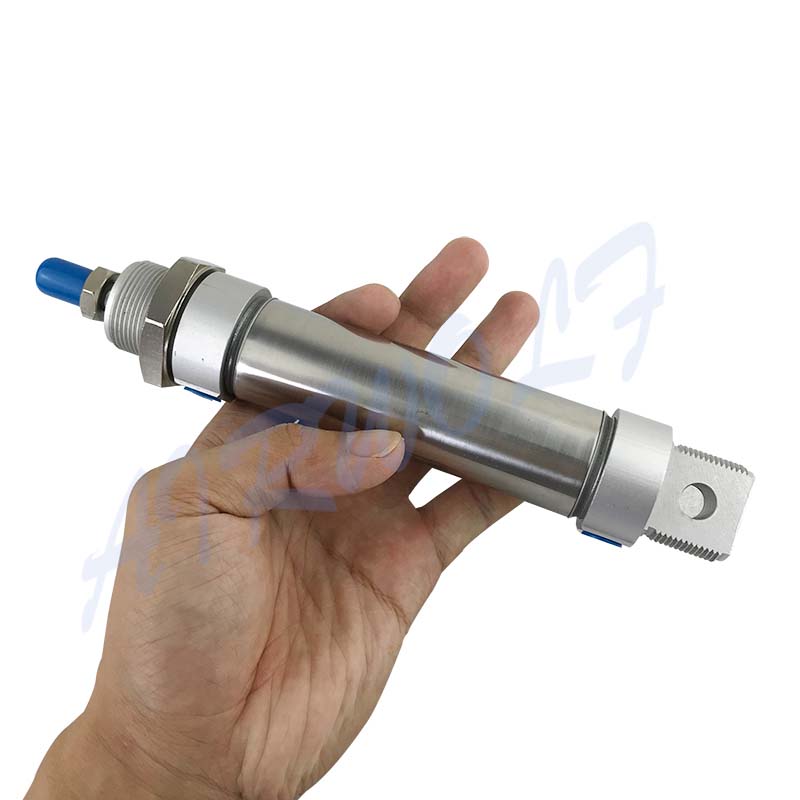

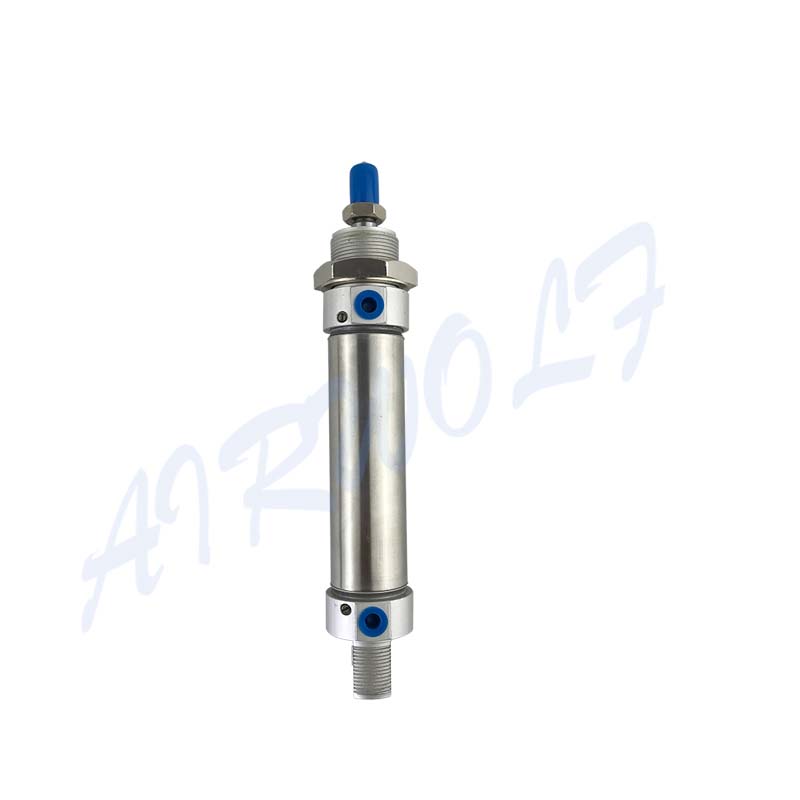

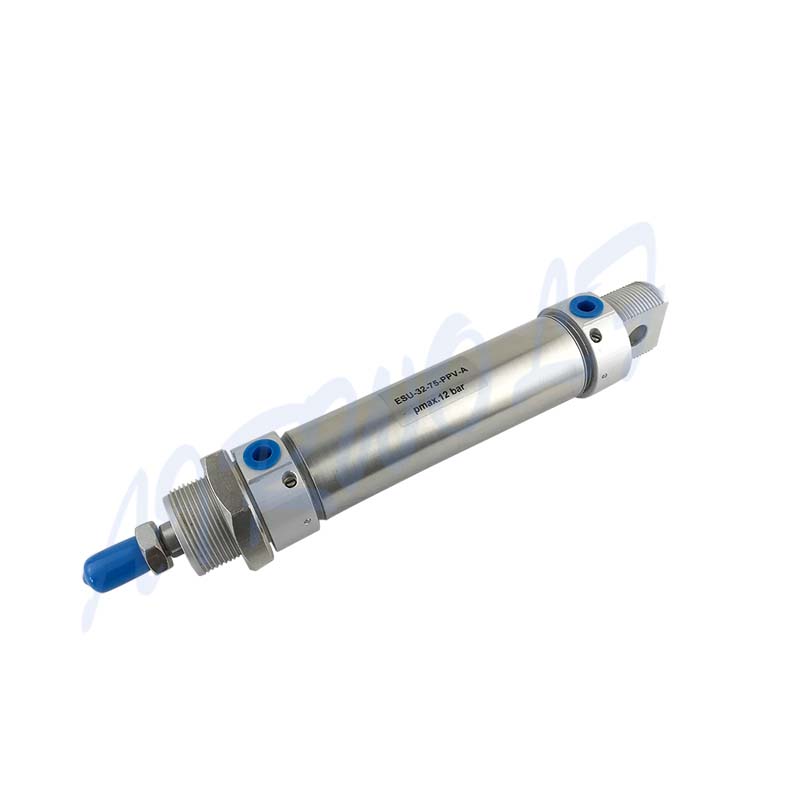

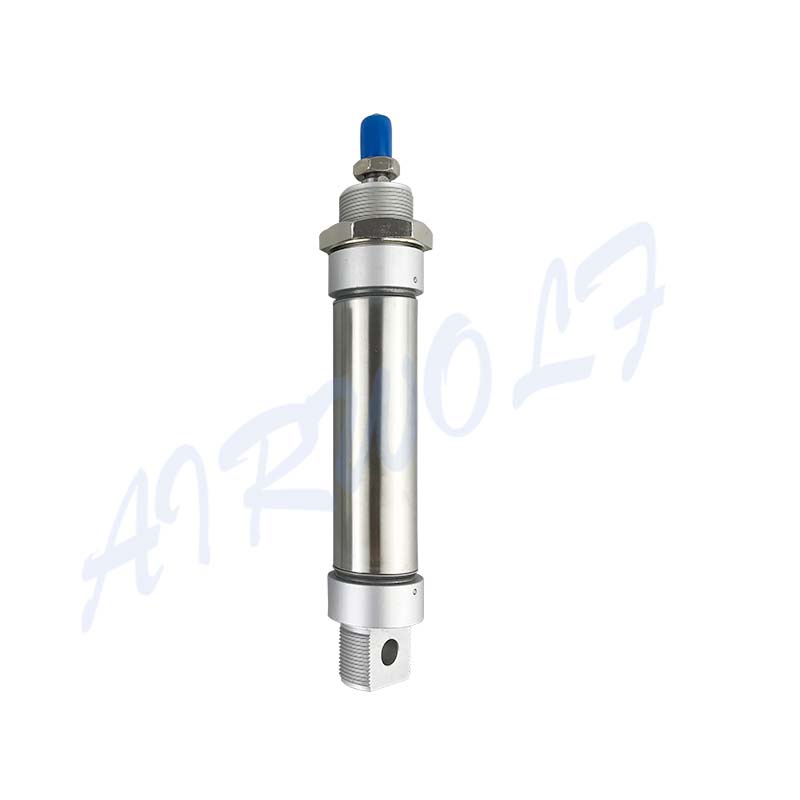

It's a DSNU series round standard double acting cylinder. DSNU series cylinder with stainless steel piston rod and wrought aluminium alloy bearing and end caps. Round cylinders with piston diameters from 8 to 25 mm. It is a cylindrical metal machine which guides the piston to move in a straight line reciprocating motion in the cylinder.

Materials

◈ Piston rod: High-alloy stainless steel

◈ Bearing cap: Anodised aluminium

◈Cylinder barrel: High-alloy stainless steel

◈End cap: Anodised aluminium

◈Seals: Polyurethane, nitrile rubber

Feature

part.1

DSNU mini stainless steel air cylinder.

part.2

Bore size 8, 10, 12, 16, 20, 25mm are conformed to ISO6432 standard.

part.3

Single and double action can be selected.

part.4

Built-in magnet,cylinder kits, barrel, piston are available.

part.5

Normal are with rubber cushion,adjustable air cushion at both ends are optional.

part.6

With self lubricating bearing,the piston rod is lubrication free.

part.7

Precision grinding stainless steel piston rod,cylinder parts were processed by high precision CNC lathe and CNC macining centre,and also good seals to guarantee good action and long lifetime.

Mounting attachments and accessories note

◈ Cannot be used on the bearing cap in combination with bellows kit DADB.

◈Only push-in fittings or one-way flow control valves with cylindrical connecting thread (M or G thread) may be used for the compressed air ports in conjunction with the DSNUP.

◈The bellows kit protects the cylinder (piston rod, seal and bearings) against a wide range of media and thus prevents premature wear. It can only be used in combination with an extended piston rod.
