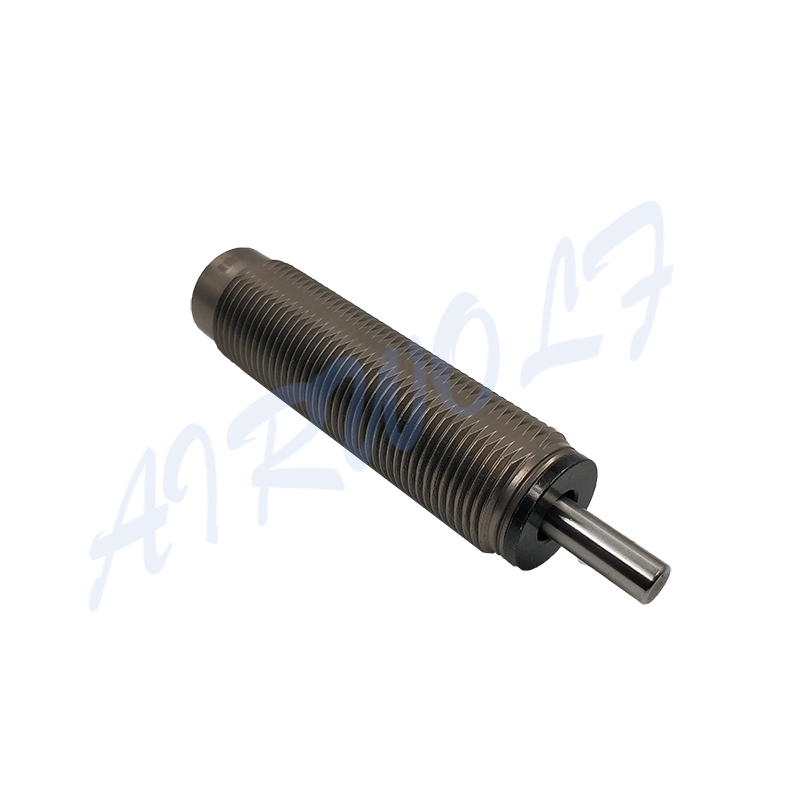

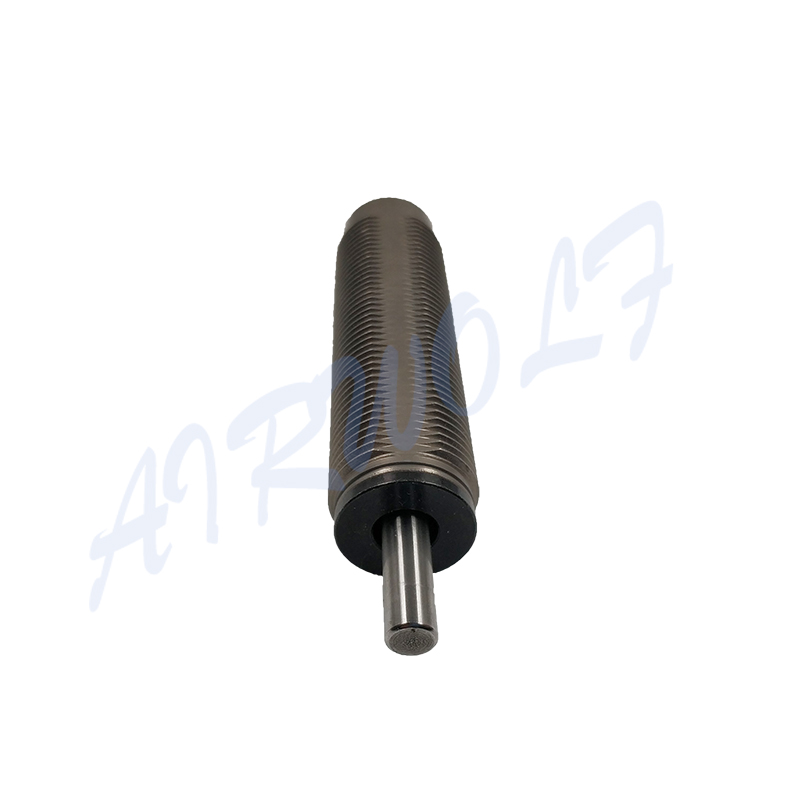

Shock absorber is used to restrain the shock of spring when it rebounds after shock absorption and the impact from road surface. Widely used in automobiles.
◈ Outer tube: Rolled steel
◈ Inner tube: Special steel
◈ Piston: Special steel
◈ Lock ring: Copper
◈ Spring guide: Carbon steel
◈ Set screw: Special steel
◈ In order for the shock absorbers to operate accurately for long hours, it is necessary to select a model that is well-suited to your operating conditions. If the impact energy is smaller than 5% of the maximum energy absorption, select a model that is one class smaller.
◈All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
◈If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

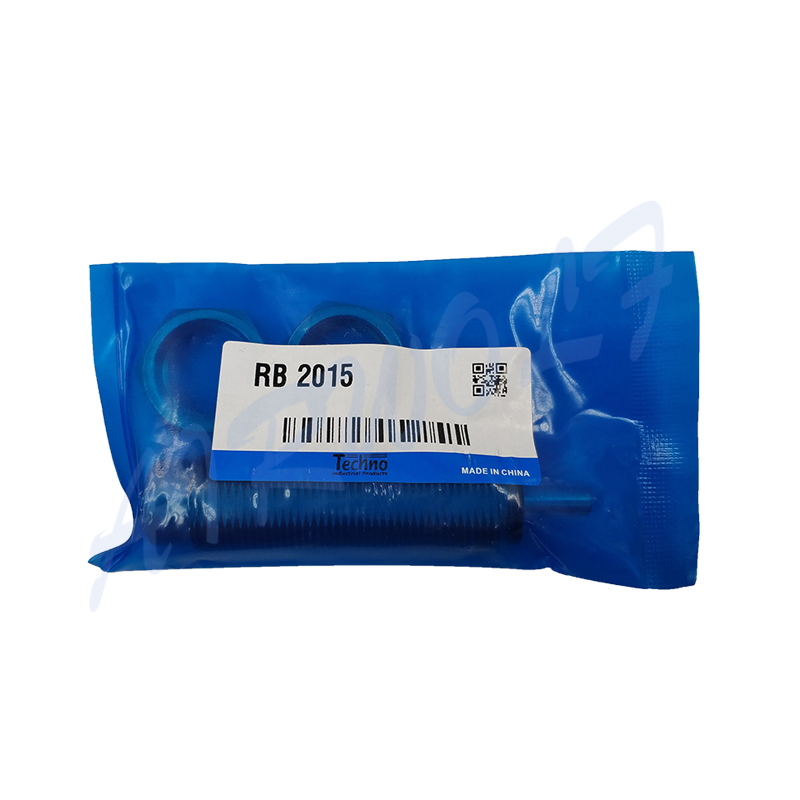

| Model | Basic type | RB0805 | RB0806 | RB1006 | RB1007 | RB1411 | RB1412 | RB2015 | RB2725 |
| With cap | RBC0805 | RBC0806 | RBC1006 | RBC1007 | RBC1411 | RBC1412 | RBC2015 | RBC2725 | |
| Max. energy absorption (J) | 0.98 | 2.94 | 3.92 | 5.88 | 14.7 | 19.6 | 58.8 | 147 | |
| Stroke absorption (mm) | 5 | 6 | 6 | 7 | 11 | 12 | 15 | 25 | |
| Collision speed (m/s) | 0.05 to 5.0 | ||||||||
| Max. operating frequency ∗ (cycle/min) | 80 | 80 | 70 | 70 | 45 | 45 | 25 | 10 | |
| Max. allowable thrust (N) | 245 | 245 | 422 | 422 | 814 | 814 | 1961 | 2942 | |
| Ambient temperature range (°C) | –10 to 80 (No freezing) | ||||||||
| Spring force (N) | Extended | 1.96 | 1.96 | 4.22 | 4.22 | 6.86 | 6.86 | 8.34 | 8.83 |
| Retracted | 3.83 | 4.22 | 6.18 | 6.86 | 15.3 | 15.98 | 20.5 | 20.01 | |
| Weight (g) | Basic type | 15 | 15 | 23 | 23 | 65 | 65 | 150 | 350 |
| With cap | 16 | 16 | 25 | 25 | 70 | 70 | 165 | 400 | |
∗ It denotes the values at the maximum energy absorption per one cycle.
Max. operation cycle/min can increase in proportion to energy absorption.
