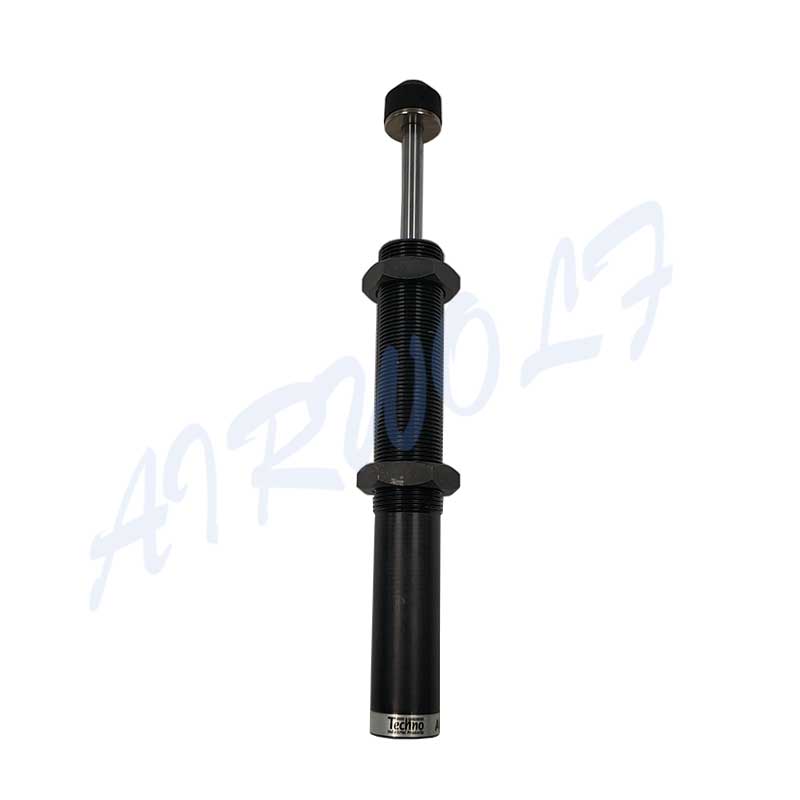

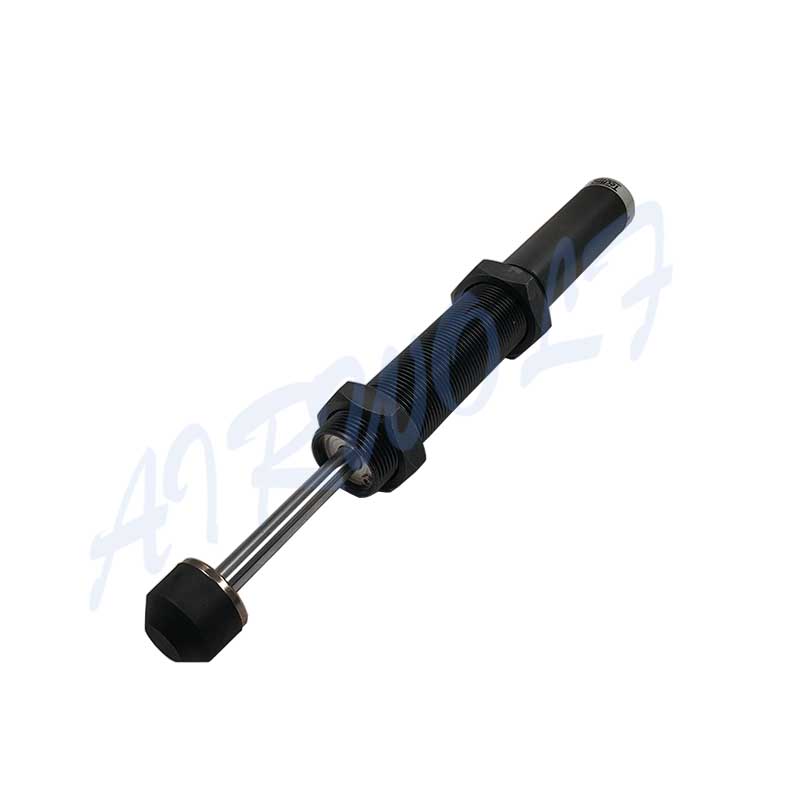

The AC series Self-compensation Shock absorber have special oiling process leads to stable shock absorbing. We use Special lubricants as buffer medum, which adapts to wide temperature range and ensures stable cushioning. The oil pressure buffer is mainly used in cylinder, combined air pressure manipulator, lathe, robot, Conveyor Systems etc. Examples of Application: drill pree, platform drill hole, circular saw cutting, lathe turning tool cutting, pneumatic aiguille drill hole, slide carriage stable speed.
◈Body material: Iron
◈Stroke: 50 mm
◈Working temperature:-10 ~+80 ℃
◈ Impact speed: Middle speed
Principle:
When piston rod is impacted, it will drive piston to press oil in inner
tube. Oil will be pressed out through orifice holes of inner tube. At
the same time, the oil returns to inner tube through returning hole of
inner tube.
After outside force vanishes, spring makes piston rod
immediately return to its position. Oil will return to inner tube
through check valve. Then shock absorber will return to be ready
position waiting for next action.
Feature
| Model | Stroke （mm） | Max. Impact Speed (m/s) |
| AC1410-2 | 10 | 2 |
| AC1420-2 | 20 | 2 |
| AC1425-2 | 25 | 2 |
| AC2020-2 | 20 | 2 |
| AC2030-2 | 30 | 2 |
| AC2050-2 | 50 | 2 |
| AC2525-2 | 25 | 2 |
| AC2550-2 | 50 | 2 |
| AC3660-2 | 60 | 2 |
Attention
1. It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft.
2. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
3. It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.
