Material: Nitrile, Viton
Certification: CE
Availability: OEM
Delivery Time: 1-3 work days
Start Port: Ningbo/Shanghai
Supply Ability: 10000 PCS/Week
Company Advantages1. The quality control of AIRWOLF diaphragm valve repair kit is conducted at the preliminary production stages to guarantee that it meets inspection percentage of the feedstock in the textile industry. Located at a coastal province - Zhejiang, Airwolf Automation offers cost-effective shipping
2. AIRWOLF CO, LTD can provide professional customized service. Airwolf Automation promises a fast turnaround time, usually 1-10 working days
3. The product has the reliable performance with long service life. Airwolf Automation always offers pneumatic components with compact design and long service life
4. The product has advantages of long service life and excellent performance. Airwolf Automation offers OEM/customization service to meet customers' specific requirements

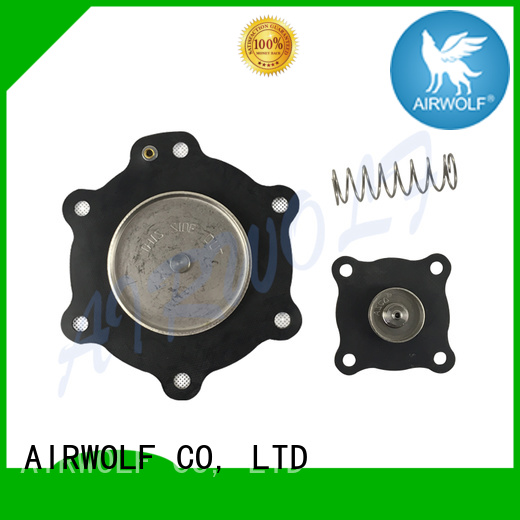

C113685 and C113686 are diaphragm repair kits for ASCO 2 Inch and 2-1/2 Inch pulse valve. Like G353A050 and G353A051. Have two material to chose: Viton and Nitrile.
◈Model: C113685, C113686
◈Color: Black
◈Working pressure: 0.05-1.0 Mpa
◈Working Temperature: -20ºC- +82 ºC
◈Cover: SS304Feature
part.1
With six 8.4mm holes and a 4mm air hole.
part.2
Materials
Diaphragm: Nitrile
Spring: Stainless steel
part.3
Lifespan:1 million cycles
part.4
Packing in high quality transparent sealed bags. It can be customized according to your requirements.
Advantages
1. Good air tightness
2. Aging resistance
3. Long service life
4. Strong oil resistance
5. High temperature resistance
| Ordering Code | Fitted Valve Code | Valve port size | Material |
| C113443 | G353A041,G353042, | 3/4", 1" | TPU / NBR |
| C113444 | SCG353A043, SCG353A044 | 3/4", 1" | TPU / NBR |
| C113825 | G353A045 | 1 1/2" | NBR /BUNA |
| C113826 | G353A046 | 1 1/2" | NBR /BUNA |
| C113827 | SCG353A047 | 1 1/2" | NBR /BUNA |
| C113685 C113686 | SCG353A050,SCG353A051,G353A048,G353A049 | 2" , 2 1/2" | NBR /BUNA |
| C113928 | SCEX353.060 | 3" | NBR /BUNA |
