Detailed Description

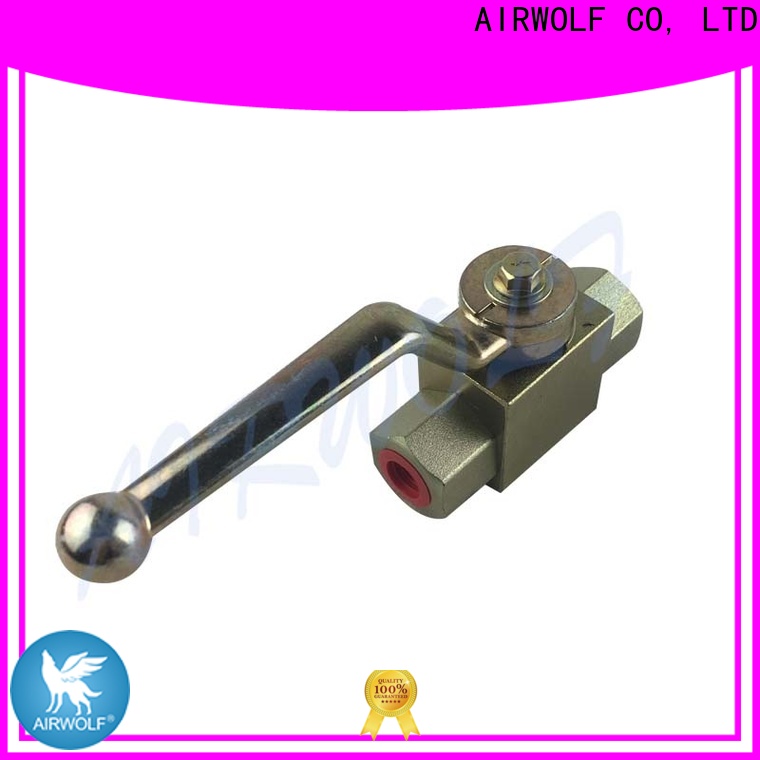

KHB high pressure ball valve is suitable for opening and closing of various pipelines in hydraulic and chemical systems. It is mainly used to control the flow and cut-off of oil in hydraulic pipeline. As long as the stem rotates 90 degrees, the ball valve completes the full opening or full closing action, and it is easy to achieve rapid opening and closing. When the ball valve opens and closes, the stem only rotates, so the packing seal of the stem is not easy to be destroyed, and the sealing force of the reverse seal of the stem increases with the increase of the medium pressure.

AIRWOLF popular hydraulic ball valve ask now for CAB-1

Available Options

◈Locking devices

◈Stainless steel valve bodies

◈Off-set or straight control handles

◈Pneumatic or electrical actuators

◈Limit switch

Product Features

AIRWOLF popular hydraulic ball valve ask now for CAB-2

part.1

Full passage for unrestricted flow of medium

AIRWOLF popular hydraulic ball valve ask now for CAB-3

part.2

Floating ball provides positive seal

AIRWOLF popular hydraulic ball valve ask now for CAB-4

part.3

Fluoroelastomer O-rings (standard)

AIRWOLF popular hydraulic ball valve ask now for CAB-5

part.4

Valve positioning controlled by a stop pin and limit washer

AIRWOLF popular hydraulic ball valve ask now for CAB-6

part.5

Direction of flow indicated by milled slot in control spindle

AIRWOLF popular hydraulic ball valve ask now for CAB-7

part.6

Phosphate coated carbon steel valve body (standard)

Specifications

AIRWOLF popular hydraulic ball valve ask now for CAB-8

AIRWOLF popular hydraulic ball valve ask now for CAB-9

◈1/4” - 2” Full Port Design

◈ Polyacetal Ball Seals (standard)

◈ NPT or SAE O-Ring connections

◈ Forged Housing - Sizes 32 - 50

◈ Carbon Steel Housing

◈ Block Housing - Sizes 06 - 25

◈ FPM (Fluoroelastomer) O-Rings (standard)

◈ Operating Pressure to 7250 psi Depending on Valve Size and Seal Materials Selected

◈ Temp Range: 14°F to 176°F with Standard materials up to max. pressure rating. Extended Temperature range -40°F to 392°F on request with special materials and reduced pressure rating.

Advantages

◈ Small loss of flow resistance, reliable sealing performance, easy operation, exquisite appearance
