OEM stainless steel ball valve custom way for wholesale

OEM stainless steel ball valve custom way for wholesale

Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time
within 1-10 working days after payment
Payment Terms
T/T , Western Union,Paypal
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Product Information of OEM stainless steel ball valve custom way for wholesale


Detailed Description

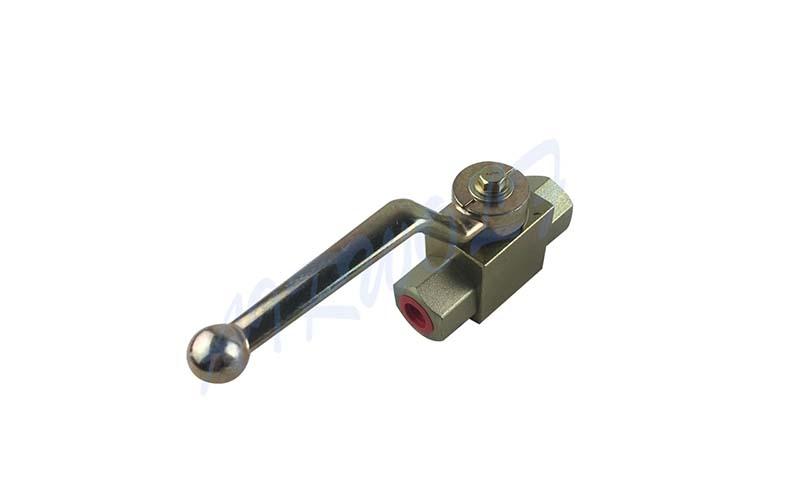

KHB high pressure ball valve is suitable for opening and closing of various pipelines in hydraulic and chemical systems. It is mainly used to control the flow and cut-off of oil in hydraulic pipeline. As long as the stem rotates 90 degrees, the ball valve completes the full opening or full closing action, and it is easy to achieve rapid opening and closing. When the ball valve opens and closes, the stem only rotates, so the packing seal of the stem is not easy to be destroyed, and the sealing force of the reverse seal of the stem increases with the increase of the medium pressure.

OEM stainless steel ball valve custom way for wholesale-1
Available Options

Locking devices

Stainless steel valve bodies

Off-set or straight control handles

Pneumatic or electrical actuators

Limit switch

Product Features
OEM stainless steel ball valve custom way for wholesale-2

part.1
Full passage for unrestricted flow of medium
OEM stainless steel ball valve custom way for wholesale-3

part.2
Floating ball provides positive seal
OEM stainless steel ball valve custom way for wholesale-4

part.3
Fluoroelastomer O-rings (standard)
OEM stainless steel ball valve custom way for wholesale-5

part.4
Valve positioning controlled by a stop pin and limit washer
OEM stainless steel ball valve custom way for wholesale-6

part.5
Direction of flow indicated by milled slot in control spindle
OEM stainless steel ball valve custom way for wholesale-7

part.6
Phosphate coated carbon steel valve body (standard)


Specifications
OEM stainless steel ball valve custom way for wholesale-8
OEM stainless steel ball valve custom way for wholesale-9

1/4” - 2” Full Port Design

Polyacetal Ball Seals (standard)

NPT or SAE O-Ring connections

Forged Housing - Sizes 32 - 50

Carbon Steel Housing

Block Housing - Sizes 06 - 25

FPM (Fluoroelastomer) O-Rings (standard)

Operating Pressure to 7250 psi Depending on Valve Size and Seal Materials Selected

Temp Range: 14°F to 176°F with Standard materials up to max. pressure rating. Extended Temperature range -40°F to 392°F on request with special materials and reduced pressure rating.


Advantages

Small loss of flow resistance, reliable sealing performance, easy operation, exquisite appearance
