pneumatic manual valves | Pneumatic manual valves

Product Information
Customer Reviews

Material: Aluminum Alloy

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Product Comparison

AIRWOLF insists on the use of high-quality materials and advanced technology to manufacture pneumatic parts supplier. Besides, we strictly monitor and control the quality and cost in each production process. All this guarantees the product to have high quality and favorable price.Compared with products in the same category, pneumatic parts supplier we produce is equipped with the following advantages.

Product Details

Choose AIRWOLF's custompneumaticcomponents for the following reasons.AIRWOLF provides diversified choices for customers. custompneumaticcomponents is available in a wide range of types and styles, in good quality and in reasonable price.

Company Advantages
1. AIRWOLF push button pneumatic air valve is backed by skilled and experienced R&D engineers and its high quality LED chips are sourced from globally famous brands.
2. With a sleek and simple new design structure, it is easy to set-up and looks great on the desk. It is especially suitable for those creative talents.
3. The product is characterized by its toughness. It has the ability to absorb the energy and gets plastically deformed without fracturing.
4. AIRWOLF has been constantly improving the quality of pneumatic manual valves .
5. Years of production and application have shown its sound prospects.

Detailed Description

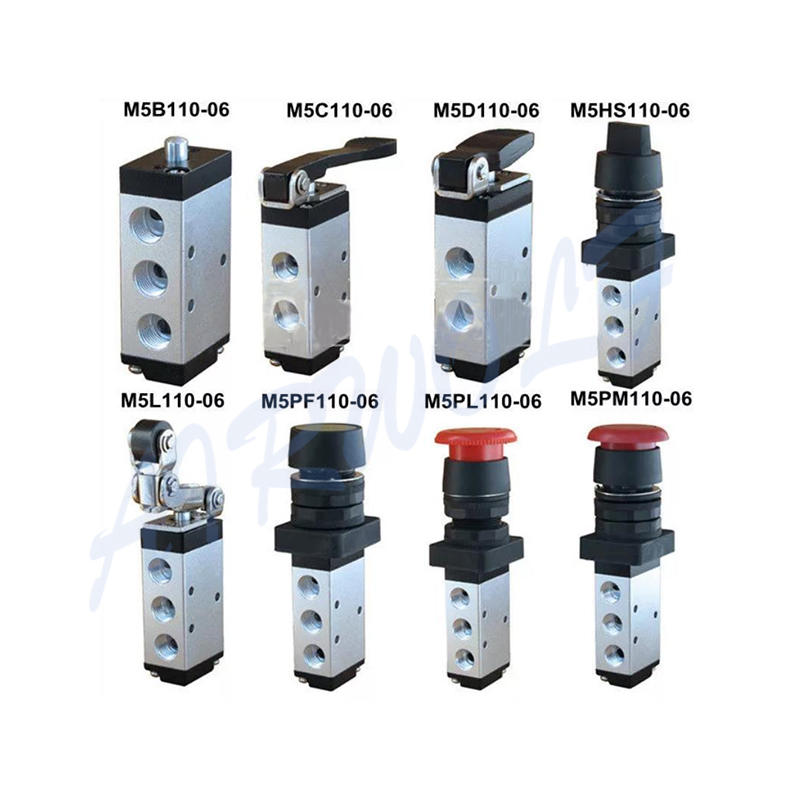

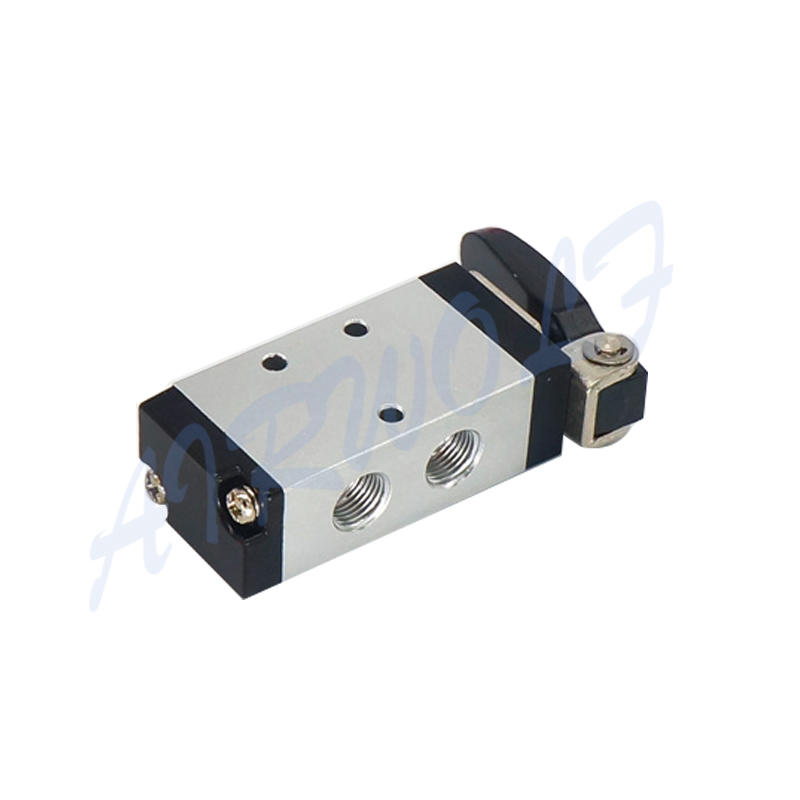

M5C, M5D, M5Y, M5PF, M5PM, M5PP, M5PL and M5HS are operated manually, owning control joints with several structure forms and suitable for application under different conditions.

Technology

◈ Model: M5B M5C M5D M5R M5L M5Y M5PM M5PP M5PF M5PL M5HS

◈ Operating Temperature: -5~60°C

◈ Fluid: Compress Air

◈ Working-pressure: 0.05~1.2MPa

Features

part.1

lt is in sliding column structure that the control force is not influenced by working pressure (that is, there is no back pressure effect); internal circle is sealed with good tightness and the direction-change is sensitive.5. No need to add oil for lubrication.

part.2

Multi-mounting makes it convenient to install and apply;

Specification

Model

M5B

M5C

M5D

M5R

M5L

M5Y

M5PM

M5PP

M5PF

M5PL

M5HS

Fluid

Air(to be filtered by 40 μm filter element)

Operating

External control direct acting type

Port size

05:M5; 06:1/8"; 08:1/4"

Orifice
size

Mini type

05:2.5mm²

110

06:8.0mm²

210

06:9.0mm²; 08:12.0mm²

Valve type

5/2 way

Lubrication

Not required

Pressure range

0~1.0 MPa

Proof pressure

1.5MPa

Temperature

-20~70℃

Material body

Aluminum Alloy

Quality Standards
The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount, but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance, according to the original quality standards, during warranty with product problems, need confirmation testing by the manufacturer, the supplier to be solved, the demand side due to storage, use, poor maintenance caused by lower- quality product, and not raise objections.

Samples
You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

Company Features
1. AIRWOLF CO, LTD has developed full range of pneumatic manual valves such as push button pneumatic air valve .
2. The technology capability of AIRWOLF CO, LTD is widely recognized by pneumatic push button valve industry.
3. Leading the pneumatic manual control valve industry has always been one of the aims of AIRWOLF CO, LTD. Call now! AIRWOLF strives to be the dominant player in the market. Call now!
