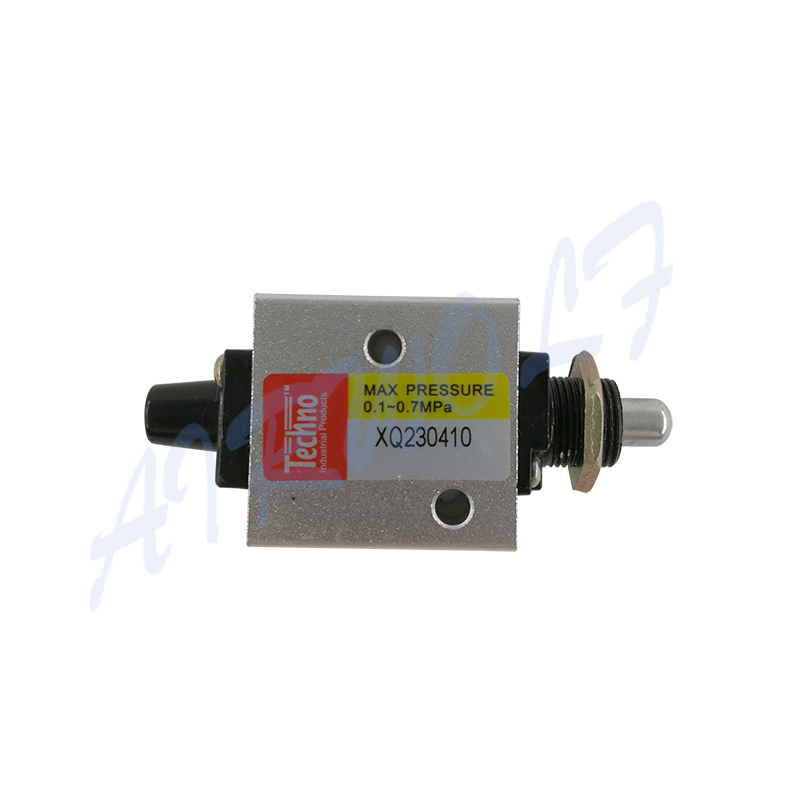

XQ Series XQ250410 XQ230410 1/8 Aluminium Alloy Plunger Type Mechanical Valve



Function

◈ Model: XQ250410 XQ230410

◈ Valve type: 3/2 way, 5/2 way

◈ Material of valve body: Aluminum alloy

◈ Operating pressure: 0~1.0MPa

◈ Service life: 10 million times



part.1

When the external forces disappear the valves reset automatically. There are several control types: plunger, roller plunger, roller lever and one way roller lever, 2- Pos. 3-Port and 2-Pos. 5-Port. The P port and R port of a 2-Pos. 3-Port valve can be exchanged so as to change the valve from normally closed to normally open.



part.2

When a mechanical valve is in stalled, the moving direction of the ram should be in angle against the valve and the plunger should be pressed down a S distance (the direction-changed stroke) as shown in diagram (XQ230410).

◈All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.

◈If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

◈ If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
