Yellow solenoid valve repair kit on-sale membranes electronics industry

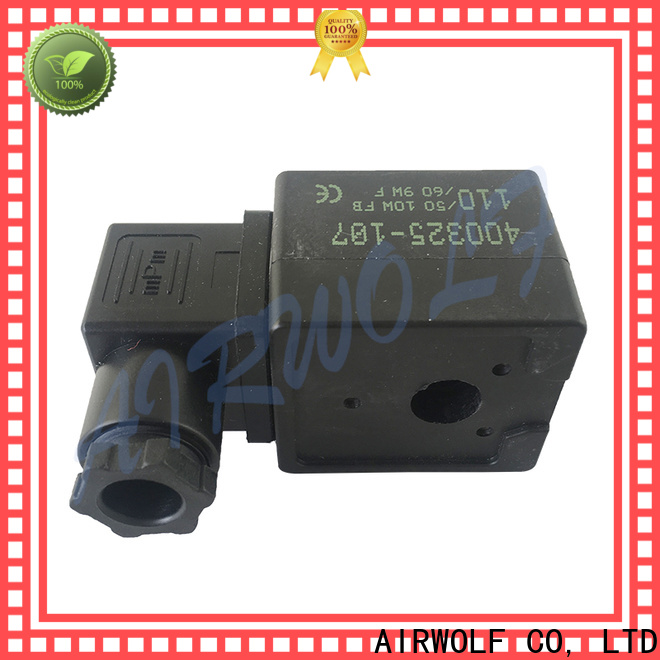

Ordering Code

◈ 400425-117

◈ 400425-107

◈ 400425-142

Type

◈ 220VAC

◈ 110VAC

◈ 24VDC

Fitted Valve Code

◈ SCG353A043

◈ SCG353A044



part.1

Solenoid valve is composed of magnetic coil and magnetic core, is a valve body containing one or several holes.When the coil is energized or cut off, the operation of the magnetic core will cause the flow through the valve body or be cut off to change the direction of the flow.



part.2

The electromagnetic coil is composed of fixed iron core, moving iron core, coil and other parts.The valve body is composed of slide spool, slide sleeve and spring base.The solenoid coil is mounted directly on the valve body, which is enclosed in a sealed tube in a compact and compact combination.

◈ Voltages：The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.

◈ Installation requirements：The solenoid valve coils are generally screwed on. After a long time of work, the vibration will cause the screws to loosen. If the coil is pulled down, it may cause the coil to fall down.

2. Coil & nameplate
3. Gasket
4. Connector assembly

After-sale service

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
