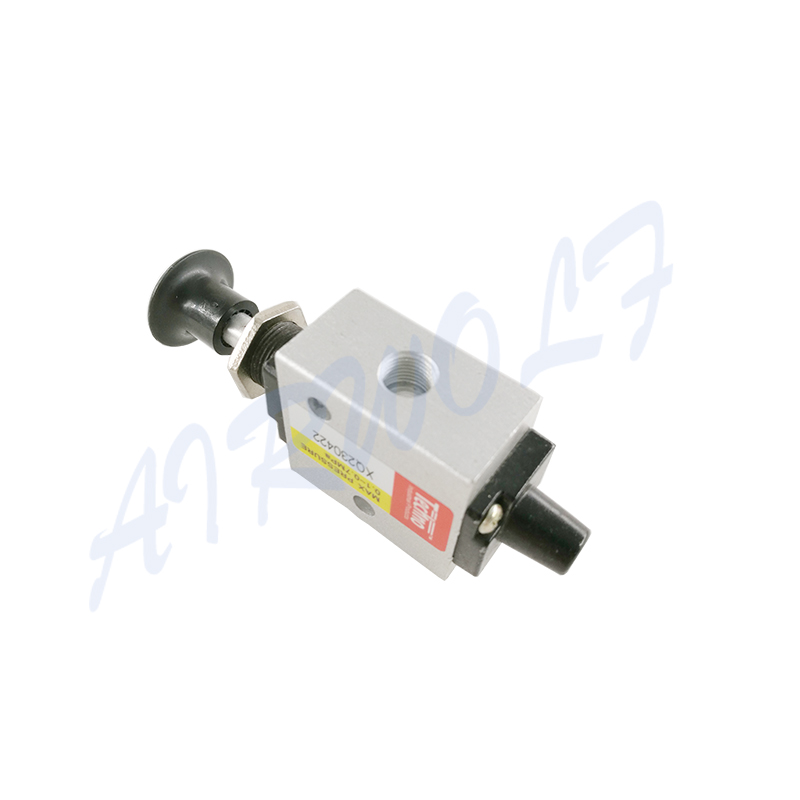

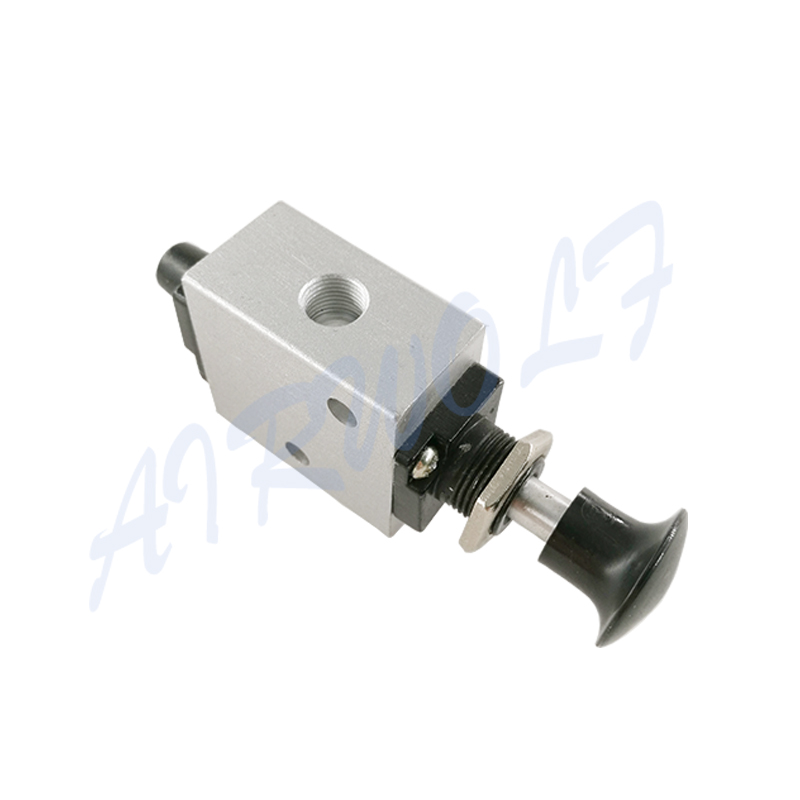

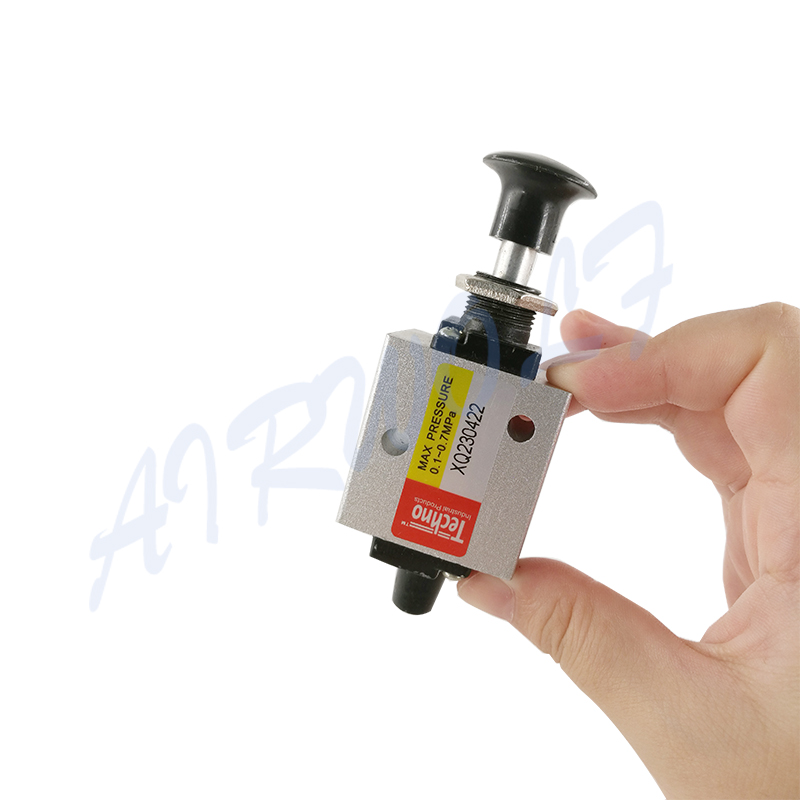

◈ Model: XQ230422 XQ250422
◈ Type: 3/2 way, 5/2 way
◈ Pressure range: 0~1.0 MPa
◈ Material: Aluminum Alloy
◈ Temperature: -10~60℃
Valves can be operated according to predetermined requirements under the action of pressure, temperature or other forms of sensing signals, or simply opened or closed without relying on sensing signals.
The valve relies on the driving or automatic mechanism to make the opening and closing parts move up and down, slip, swing or turn, thus changing the size of its runner area to achieve its control function.
| Model | Type | Port size | Nominal dia. | Operating force | Operating | Fluid | Ambient | Service life |
| mm | pressure | temperature | temperature | |||||
| XQ230420 | 3/2 | G1/8 | 4 | 26N | 0~1.0MPa | -10~+60℃ | 5~+60℃ | 10 million times |
| XQ230620 | G1/4 | 6 | 35N | |||||
| XQ250420 | 5/2 | G1/8 | 4 | 30N | ||||
| XQ250620 | G1/4 | 6 | 40N | |||||
| XQ230420.1 | 3/2 | G1/8 | 4 | 26N | ||||
| XQ230620.1 | G1/4 | 6 | 35N | |||||
| XQ250420.1 | 5/2 | G1/8 | 4 | 30N | ||||
| XQ250620.1 | G1/4 | 6 | 40N | |||||
| XQ230421 | 3/2 | G1/8 | 4 | 15N.cm | ||||
| XQ230621 | G1/4 | 6 | 28N.cm | |||||
| XQ250421 | 5/2 | G1/8 | 4 | 17N.cm | ||||
| XQ250621 | G1/4 | 6 | 32N.cm | |||||
| XQ230422 | 3/2 | G1/8 | 4 | 13N | ||||
| XQ230622 | G1/4 | 6 | 17N | |||||
| XQ250422 | 5/2 | G1/8 | 4 | 15N | ||||
| XQ250622 | G1/4 | 6 | 20N | |||||
| XQ230423 | 3/2 | G1/8 | 4 | 20N | ||||
| XQ230623 | G1/4 | 6 | 22N | |||||
| XQ250423 | 5/2 | G1/8 | 4 | 25N | ||||
| XQ250623 | G1/4 | 6 | 28N |
