Water Solenoid Valves | Us-25 Normally Open Brass Water Valve

Product Information

Detailed Description

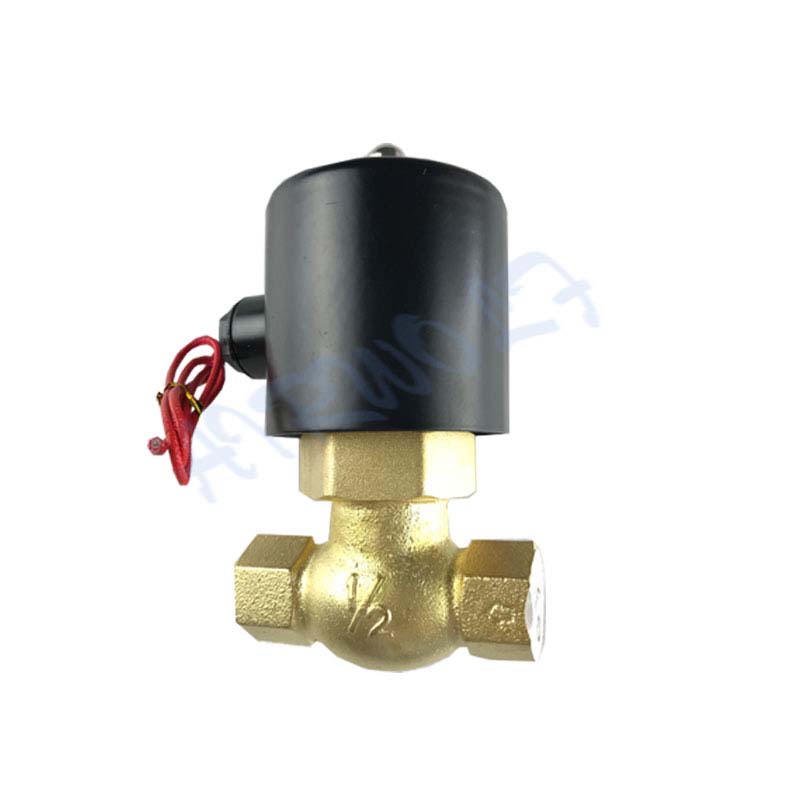

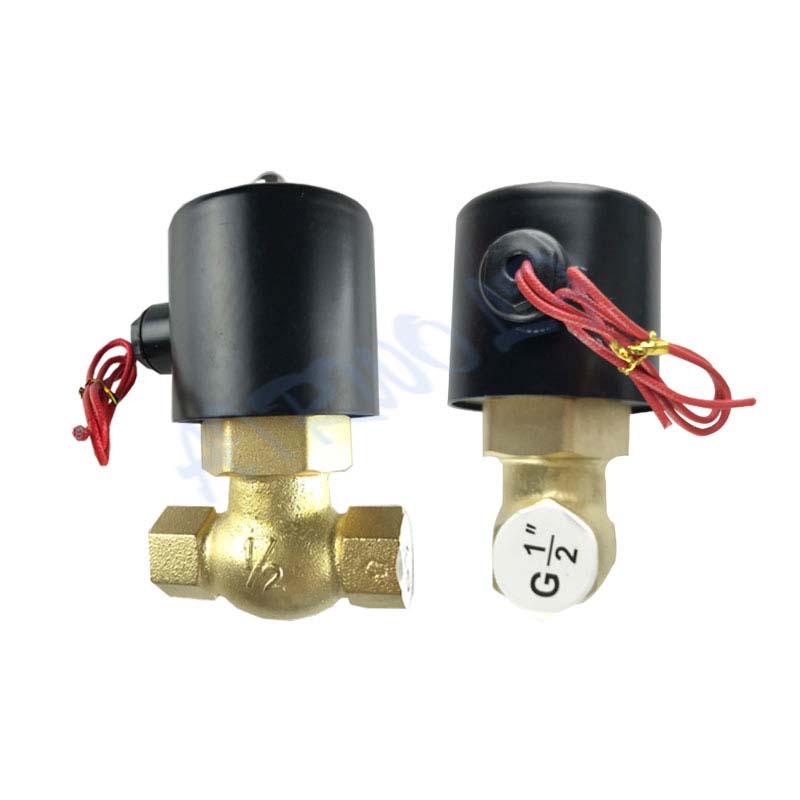

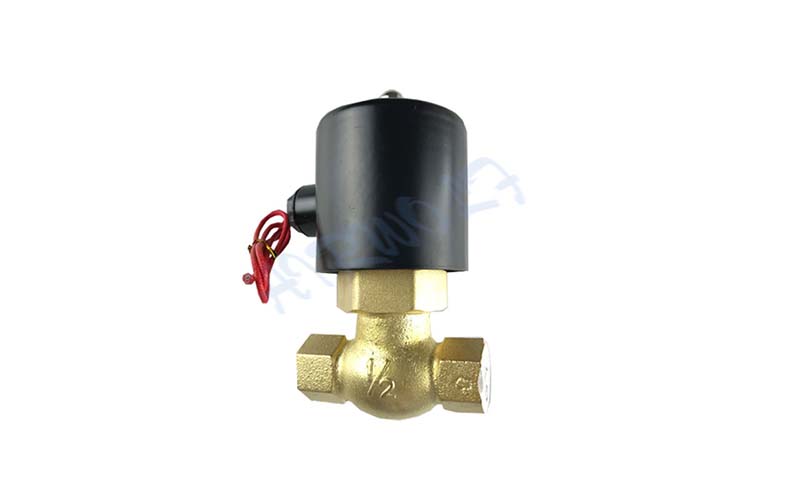

US series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.

1.Able to operate under no differential pressure

2.Material PTFE is applied to steam.

Features & Benefits

◈Model: US-10 US-15 US-20 US-25 US-35 US-40 US-50 Joint Pipe Bore:G1/8;G1/4;G3/8;G1/2;G1;G2.

◈Operation Fluid Viscosity:20 CST (Below)

◈Working-pressure:0~2.0MPa

◈Max. Pressure Resistance:3.5MPa

◈Operating Temperature Range:-5~+80℃

◈Standard voltage:AC220,AC110V,AC24V,DC24V,DC12V.

◈Voltage Range:±10%

◈Material of Body:Brass

◈Material of Oil Seal:NBR, EPDMVITON / NBR, EPDM or VITON

◈Type:Normal Close Type ; Normal Open Type

◈Motion Pattern:Direct Drive Type

◈Working Medium: Air, Water, Oil, Gas,Fuel

Cautions

part.1

Before pipelining, the pipe line must be very clean without any contaminants or impurity.

part.2

To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.

part.3

The temperature of steam should not over 185℃

part.4

AC voltage tolerance: ± 10%; DC voltage tolerance: ± 1%

part.5

It should be installed horizontally; vertical installation is not advisable.

Application

◈ Water solenoid valve is suitable for water or liquid as the working medium, can automatically control or remote control of water, oil, liquid and other working medium pipeline on and off.Because this valve USES the rubber seal, therefore to the working medium cleanliness greatly reduces, has opens and closes quickly, the reliability high characteristic.

Not Suitalbe For Fluid As Below

◈Liquid status when it is in high temperature; solid status when it is in low temperature.

◈Corrosive fluid

◈Viscosity over 50cst
