Turbo Type Submerged type pulse jet valve SQP75-IN 3 inch Aluminium alloy



Structure

◈Coil+Connector:BH10...V/50-60Hz

◈Screws+Washer:VTE6x +VROS6

◈Pole assembly:GPC 10

◈Cover:TCOP 25

◈Cover remote operate:TCOP25FM

◈Screws+Washer:VTE10x25+VROS10

◈Spring:TMOL40

◈Main diaphragm:M75

◈Body:TCOR75FLQ - TCOR100FLQ

◈O-Ring:OR 177 17x6,99 - OR 100 17x5,33



part.1

The pulse valve is controlled by a pilot valve such as electromagnetic or pneumatic, and can open and close the diaphragm valve of the high-pressure gas source to generate a pulse.



part.2

The pulse valve is the main component of the bag filter, which is sprayed more than 1 million times.



part.3

The pulse valve is a valve that relies on the airflow through the air resistance and the delay of the air volume to make the input long signal become a pulse signal.



part.4

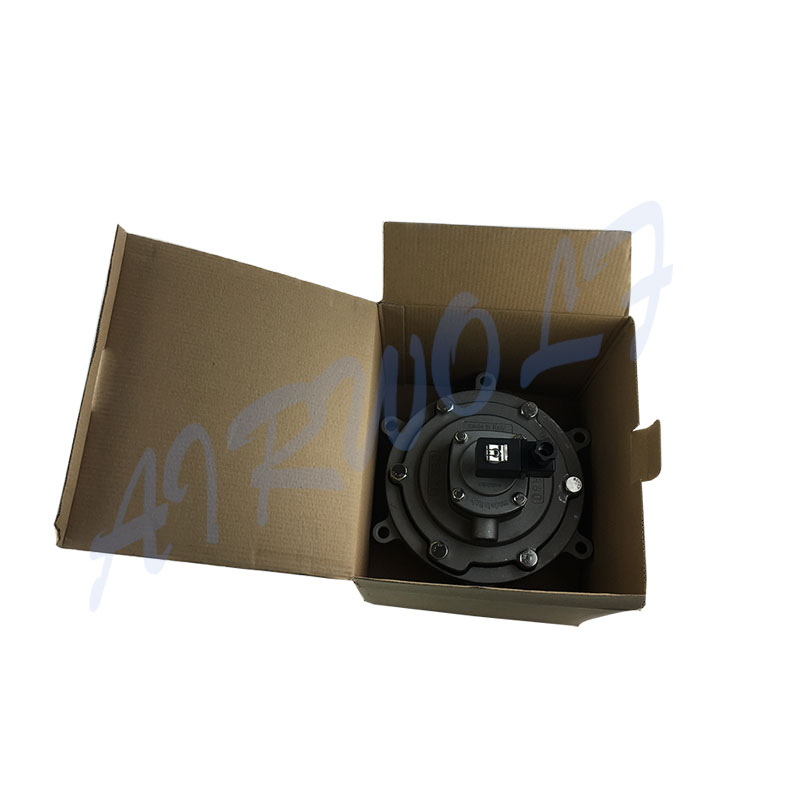

Carton pack for easy transport and protection of the valve body.



◈Spring damage, pulse valve spool on the spring is easy to damage, resulting in the appearance of the pulse valve to blow air into the nozzle for a long time, the treatment is to replace the spring.

◈Spool fouling, because the intake is not clean, resulting in fouling accumulation in the spool, resulting in the appearance of the nozzle is a long-term intake or get electricity after the pulse valve does not act, the way is to clean the spool.

◈The diaphragm is damaged, after long-term work, the diaphragm is prone to fatigue, oxidation, etc., resulting in the appearance of the pressure relief port long-term gas, pulse valve does not work, the treatment is to replace the diaphragm

Advantages:

◈Small resistance, good circulation, expanding the scope of use of gas pressure.

◈Super Long Life.
