turbo diaphragm valve repair hot-sale mecair textile industry

Detailed Description

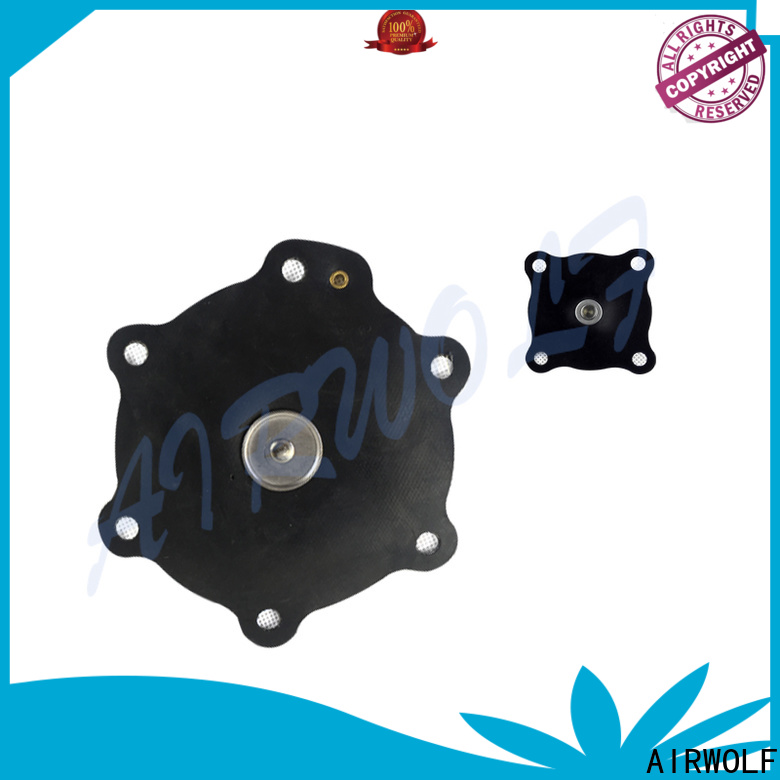

C113684 is diaphragm repair kits for ASCO 2 Inch and 2-1/2 Inch pulse valve. Like

G353A048 and G353A049. Have two material to chose: Viton and Nitrile.

turbo diaphragm valve repair hot-sale mecair textile industry-1

Specification

◈Model: C113684

◈Color: Black

◈Working pressure: 0.05-1.0 Mpa

◈Working Temperature: -20ºC- +82 ºC

◈Cover: SS304

Feature

turbo diaphragm valve repair hot-sale mecair textile industry-2

part.1

The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use.

turbo diaphragm valve repair hot-sale mecair textile industry-3

part.2

The injection life can reach 1 million times or use for 3 years.

turbo diaphragm valve repair hot-sale mecair textile industry-4

part.3

It is used in pulse bag filter and installed in pulse valve to block compressed air pipeline.

turbo diaphragm valve repair hot-sale mecair textile industry-5

part.4

Aging resistance
Long service life

Working Principle
When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.

Ordering Code	Fitted Valve Code	Valve port size	Material
C113443	G353A041,G353042,	3/4", 1"	TPU / NBR
C113444	SCG353A043, SCG353A044	3/4", 1"	TPU / NBR
C113825	G353A045	1 1/2"	NBR /BUNA
C113826	G353A046	1 1/2"	NBR /BUNA
C113827	SCG353A047	1 1/2"	NBR /BUNA
C113685 C113686	SCG353A050,SCG353A051,G353A048,G353A049	2" , 2 1/2"	NBR /BUNA
C113928	SCEX353.060	3"	NBR /BUNA

turbo diaphragm valve repair hot-sale mecair textile industry-6

b******n

The unique diaphragm valve repair material of diaphragm valve repair makes it a diaphragm valve repair. This product is notable for its strong overload capacity

y******h

goyen diaphragm valve repair kit takes the advantages of goyen diaphragm valve repair kit. This product is not susceptible to cracks

v******q

The series of goyen diaphragm valve repair kit are goyen diaphragm valve repair kit, will bring the best result of goyen diaphragm valve repair kit for you. It works stably under strong impact and vibration conditions

a******u

Advantages such as goyen diaphragm valve repair kit have helped diaphragm valve repair win the market. This product has the advantage of high accuracy

e******m

All pictures of diaphragm valve repair all under the natural light the real object take, did not do any technique processing. Since it is maintenance-free, this product significantly helps save operation costs

o******m

YW DKE TRADING COMPANY According to the actual development needs of the enterprise, an effective cost control system has been established. Not only has a reasonable budget been formulated for each link of product production, but also insists on regular monitoring and inspection of the production status of products, and timely correction of problems found. Fundamentally control the production cost, so that the produced goyen diaphragm valve repair kit has a more prominent price advantage compared with similar products.
