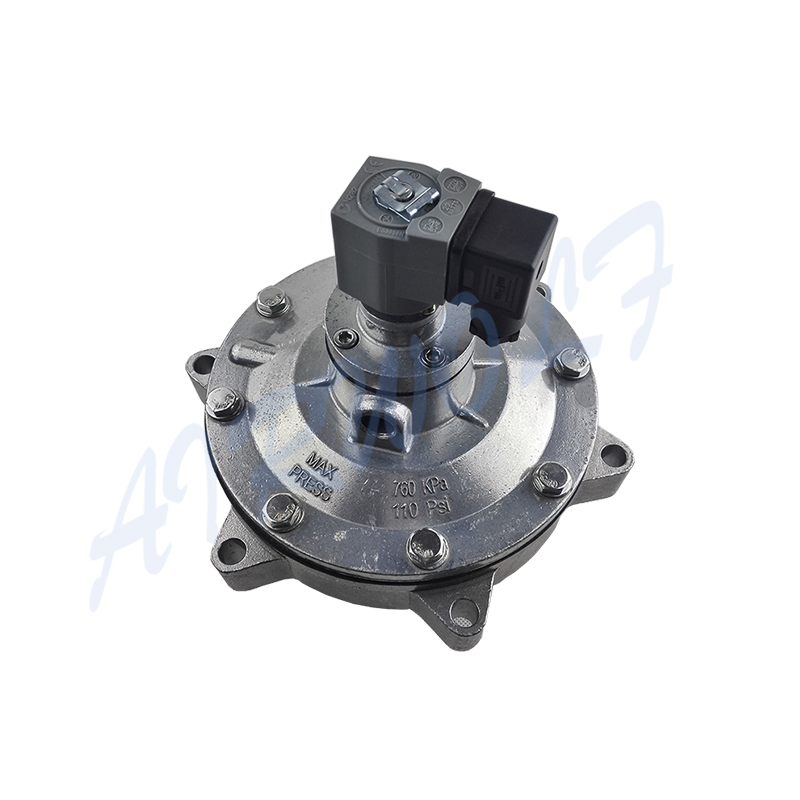

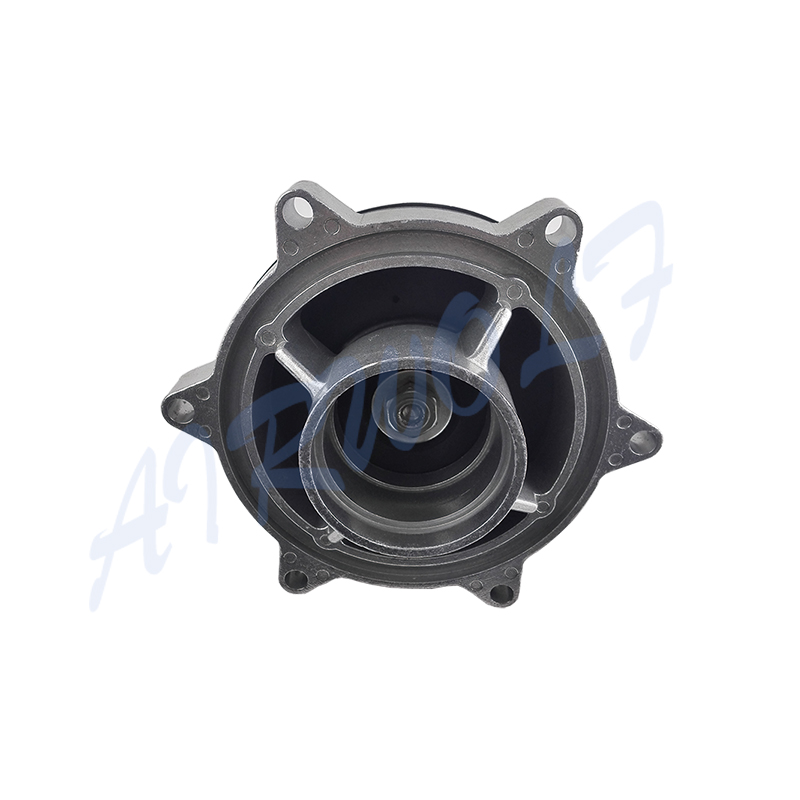

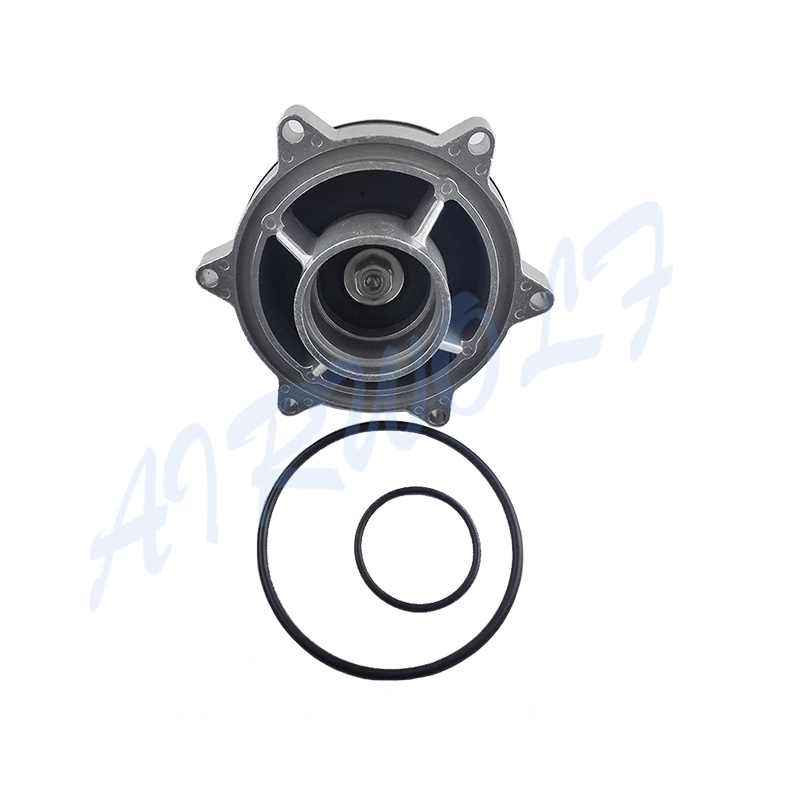

Submerged CA50MM CA62MM Electric Control Slivery Goyen Type Pulse Valve



Construction

◈ Model: CA50MM CA62MM

◈ Body and Dresser Nuts: Diecast Aluminium

◈ Ferrule: 304 SS

◈ Armature: 430FR SS

◈ Spring: 304 SS

◈ Screws: 302 SS



part.1

The performance is stable and reliable, and the service life of the diaphragm is more than 1 million times or three years.



part.2

All other parts of the same type and specification can be used and exchanged.

◈  Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.

◈Port: Ningbo/Shanghai

◈Delivery time: 1-3 work days

◈Spring damage. The springs on the pilot head of the pulse valve are easily damaged, which results in the long-term bleeding of the pulse valve to the nozzle.
   Solution: Replace the spring.

◈Damage of rubber pad. After using for a long time, the rubber pad on the pilot head of the pulse valve is easily damaged, resulting in the long-term bleeding of the pulse valve to the nozzle.
   Solution: Replace the rubber pad

◈Pilot dirt. Because the air intake is not clean, the fouling of the pilot is accumulated, resulting in the long-term intake of the nozzle or the pulse valve doesn't work after electrification.
   Solution: Clean the pilot.

◈Damage of diaphragm. After long-term operation, the diaphragm is easy to oxidize, resulting in leakage of the pressure relief port, and the pulse valve doesn't work.
   Solution: Change diaphragm.

◈ Port size: 2-1/2"

◈ Color: Slivery

Recommended on-time range: 50–500 ms

Recommended time between pulses: 1 minute or greater

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
