stainless steel pneumatic angle seat valve custom aggressive fluids

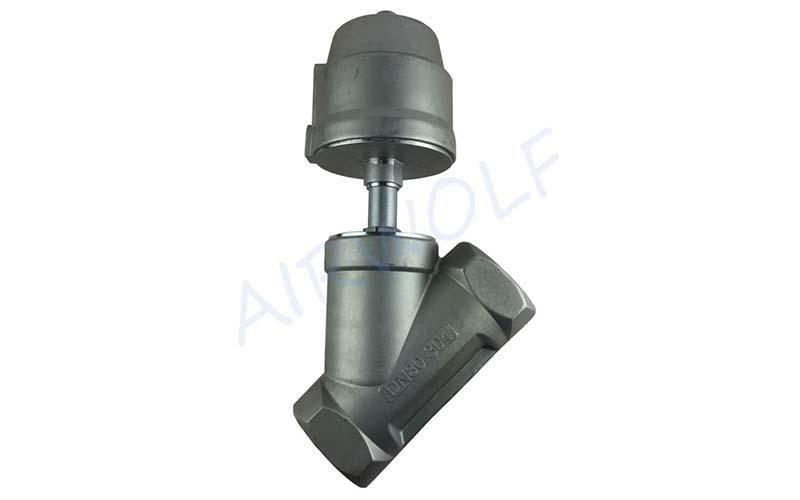

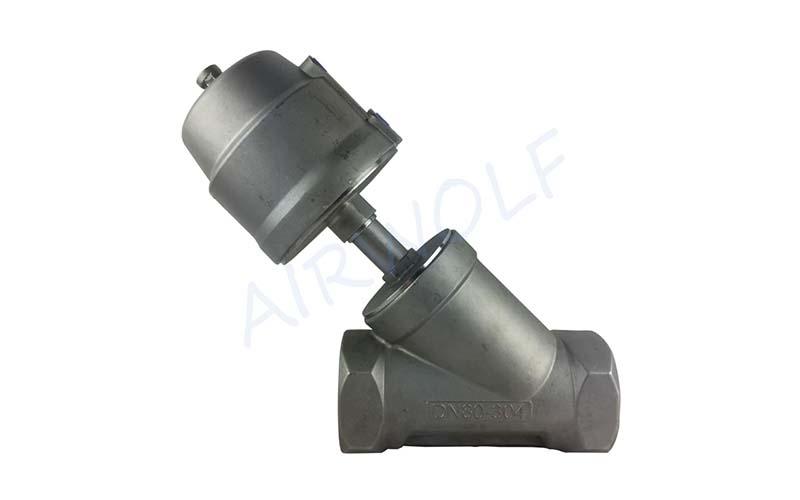

Stainless steel pneumatic angle seat valve custom aggressive fluids

Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement
Delivery Time
within 1-10 working days after payment
Payment Terms
T/T , Western Union,Paypal
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:


Detailed Description

It is a 2/2-way pneumatically actuated piston valve for liquids, gases, steam and some aggressive fluids (vacuum services also.) The superior design of the piston is unique to the market, enabling the plug to retract farther from the flow path, ensuring the highest flow capacity. The dual packing design, and a large diameter self aligning stem insures the highest cycle life. A full range of accessory items are available including limit switches, solenoid valves, manual override devices, stroke limiters.

stainless steel pneumatic angle seat valve custom aggressive fluids-1
Features & Benefits

Integrated pneumatic actuator

NAMUR solenoid mounting pad

Compact assembly

Visual indicator

High Cycle-Life

Actuator rotates 360°

Complete line of accessories

Advantages
stainless steel pneumatic angle seat valve custom aggressive fluids-2

part.1
Large Flux, low Resistance, No Water-hammer Y-type Shape Enlarged The Flowing Section, which Could Raise The Flux By 30% And Make Flow More Smooth
stainless steel pneumatic angle seat valve custom aggressive fluids-3

part.2
Super Long Life.
stainless steel pneumatic angle seat valve custom aggressive fluids-4

part.3
Which Help The Stem Adjust And Lubricate Itself Automatically.
stainless steel pneumatic angle seat valve custom aggressive fluids-5

part.4
The Cylinder Material is Stainless Steel.Lubricating Automatically,360 Rolling Freely.
Typical Applications

Steam Applications

Air Drying Equipment

Sterilizers

Autoclaves

Process Control Applications

Laundry Equipment

Textile Dyeing & Drying

Bottling & Dispensing Equipment

Industrial Compressors

Precautions for use
stainless steel pneumatic angle seat valve custom aggressive fluids-6
Materials

Body, Plug, & Stem:

Zeus - Bronze

Ares - 304, 316SS

Seats & Seals: PTFE

End Connections

BSP, NPT Threaded (3/8" to 2 1/2")

Tri-Clamp (1/2" to 2 1/2")

Butt Weld (call)

150 lb. ANSI Flanged (call)

Specifications


stainless steel pneumatic angle seat valve custom aggressive fluids-7

(Viton Seals)

Temperature Range:-14 to 358°F

Max. Pressure: 150 PSIG

Valve Configurations

Spring Ret. N.C. Bi-directional Flow

Spring Ret. N.C. Flow from Above Plug

Spring Ret. N.O. Flow from Below Plug

Double Acting Bi-directional Flow

Manual Handle Bi-directional Flow


The unique angle seat valve manufacturers material of pneumatic angle seat valve makes it a angle seat valve manufacturers. This product has a high level of insulation
pneumatic angle seat valve takes the advantages of pneumatic angle seat valve. This product is easy to install and use
The series of angle seat valve manufacturers are pneumatic angle seat valve, will bring the best result of pneumatic angle seat valve for you. This product can repeat the same measurement many times
Advantages such as pneumatic angle seat valve have helped angle seat valve manufacturers win the market. This product has a high level of IP
All pictures of angle seat valve manufacturers all under the natural light the real object take, did not do any technique processing. It is able to quickly and effectively detect and respond to some types of input
YW DKE TRADING COMPANY According to the actual development needs of the enterprise, an effective cost control system has been established. Not only has a reasonable budget been formulated for each link of product production, but also insists on regular monitoring and inspection of the production status of products, and timely correction of problems found. Fundamentally control the production cost, so that the produced angle seat valve manufacturers has a more prominent price advantage compared with similar products.
