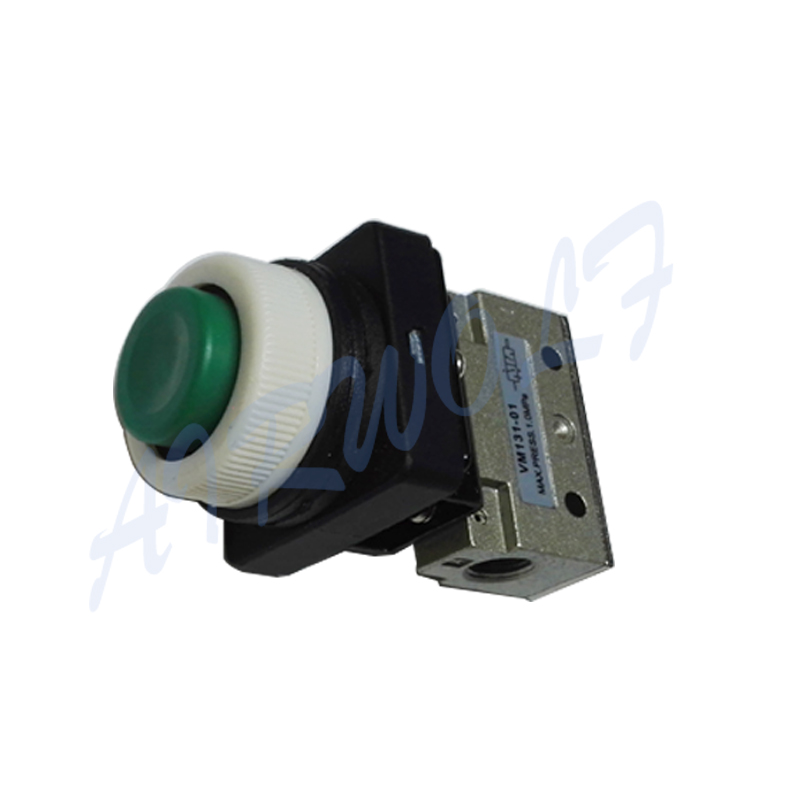

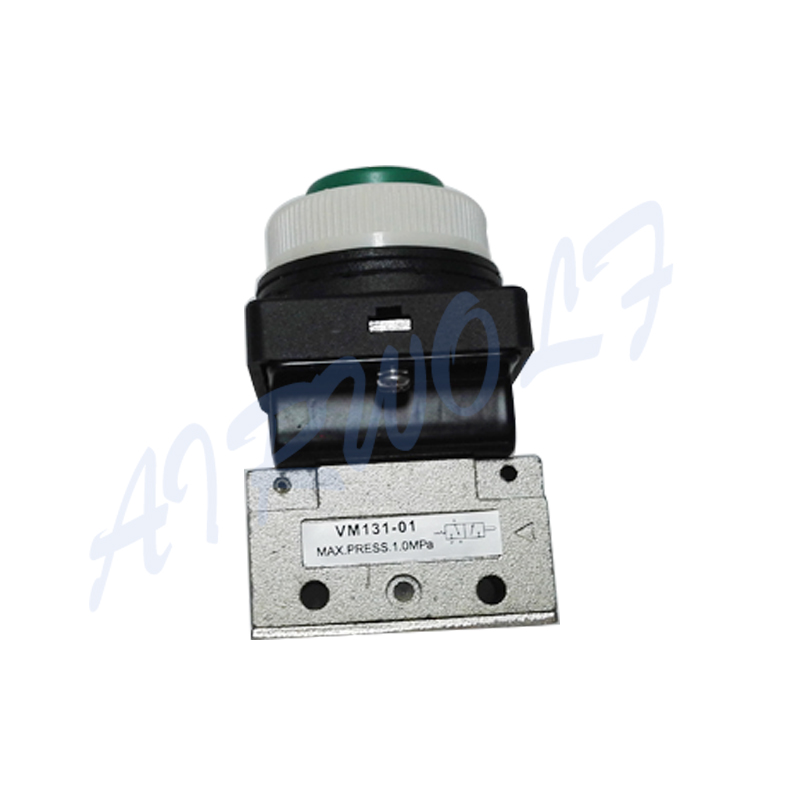

SMC Type VM131 Series Protruding Type Mechanical valve VM131-01-00 VM131-01-01



Technology

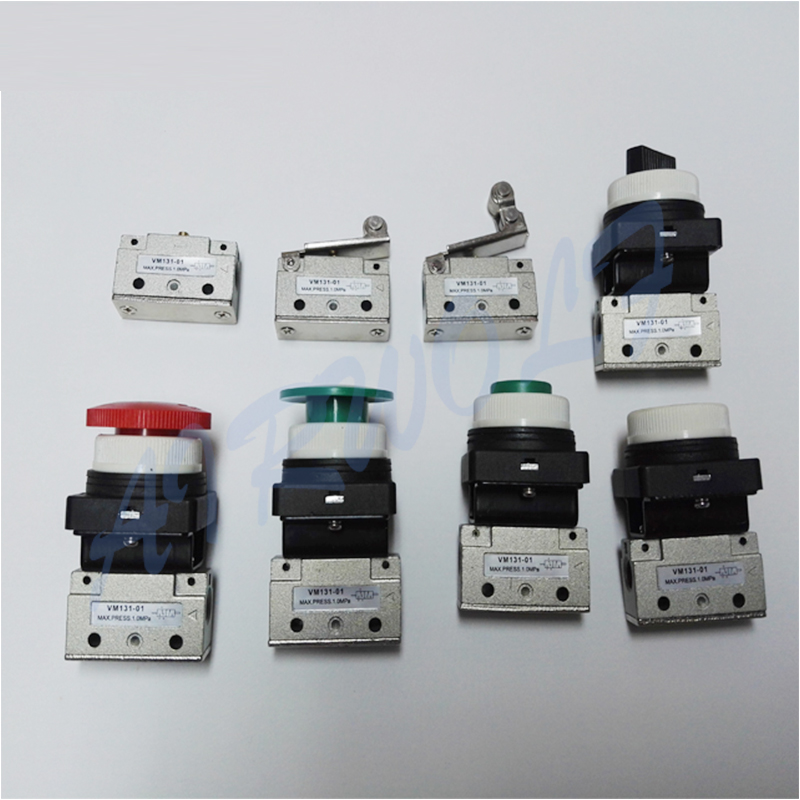

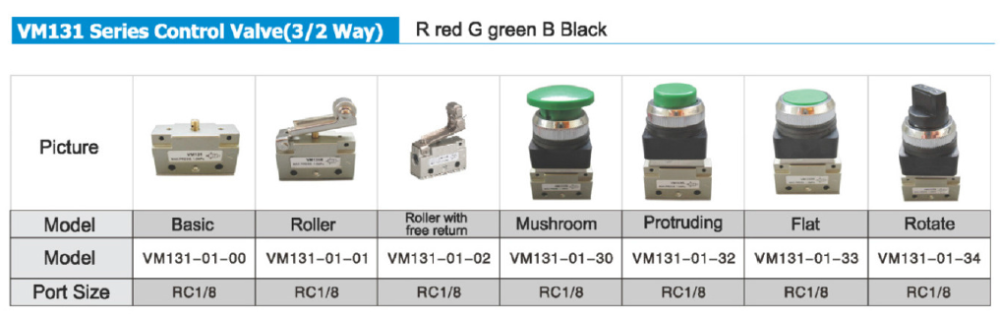

◈ Model: VM131-01-00 VM131-01-01 VM131-01-02 VM131-01-37 VM131-01-30 VM131-01-32 VM131-01-33 VM131-01-34

◈ Working media: Air

◈ Operating  pressure: -100kPa to 1.0MPa

◈ Effective area: 2.5mm²



part.1

Conditions for mechanical operation
Do not move the mechanical operation beyond the operating limit position, as this could damage the mechanical valve itself and lead to equipment malfunction.



part.2

Actuator Stroke
Operate the mechanism within the stroke range that has been obtained through the formula given below. (Do not move beyond the operating limit position.)
Operating stroke: P.T. + 0.5 X O.T.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.4. Also we can send by your delivery acount if you want.

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
