Custom Pneumatic Push Button Valve Now, At Discount

Product Information

Material: Aluminum Alloy

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Detailed Description

Do not operate it in an area in which fluids such as oil, coolant, or water splash on it or dust comes in contact with it.

Technology

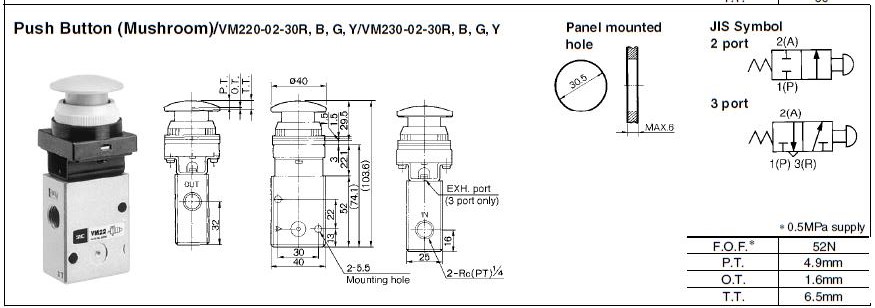

◈ Model: VM230-02-00 VM230-02-01 VM230-2-37 VM230-02-30 VM230-2-32 VM230-02-33 VM230-02-34

◈ Type: 3/2 way

◈ Operating pressure: 0-1.0Mpa

◈ Weight (Basic): 111g

Features

part.1

Perform inspections on a regular basis as necessary, such as at the beginning of an operation, to make sure that the mechanical valve operates properly.

part.2

Operate all manual valves such as the push pin styles, the selector styles, and the flip toggle styles with your finger.

Specification

Fluid	Air
Operating pressure	0 to 1.0MPa
Fluid temperature	-5 to 60°C (No freezing)
Effective area (Nl/min)	19mm²
Recommended lubricant	Not required/Turbine oil #1 (lSO VG32)
Port size	1/4
Weight (Basic)	111g

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
