custom pneumatic components, manufactured based on high-quality materials and advanced technology, has excellent quality and favorable price. It is a trustworthy product which receives recognition and support in the market.Compared with other products in the same category, AIRWOLF's custom pneumatic components has the following advantages.

Company Advantages
1. The structure of pneumatic cylinder is flexible and reasonable.
2. The complete detection of this product ensures its higher quality in the market.
3. Many famous brand pneumatic cylinder is actually made by AIRWOLF CO, LTD's factories in mainland China.
4. It turns out to be efficient that the successful establishment of complete sales network will contribute to the development of AIRWOLF.

Detailed Description

It's a DSNU series round standard double acting cylinder. DSNU series cylinder with stainless steel piston rod and wrought aluminium alloy bearing and end caps. Round cylinders with piston diameters from 8 to 25 mm. It is a cylindrical metal machine which guides the piston to move in a straight line reciprocating motion in the cylinder.

Materials

◈ Piston rod: High-alloy stainless steel

◈ Bearing cap: Anodised aluminium

◈Cylinder barrel: High-alloy stainless steel

◈End cap: Anodised aluminium

◈Seals: Polyurethane, nitrile rubber

Feature

part.1

DSNU mini stainless steel air cylinder.

part.2

Bore size 8, 10, 12, 16, 20, 25mm are conformed to ISO6432 standard.

part.3

Single and double action can be selected.

part.4

Built-in magnet,cylinder kits, barrel, piston are available.

part.5

Normal are with rubber cushion,adjustable air cushion at both ends are optional.

part.6

With self lubricating bearing,the piston rod is lubrication free.

part.7

Precision grinding stainless steel piston rod,cylinder parts were processed by high precision CNC lathe and CNC macining centre,and also good seals to guarantee good action and long lifetime.

Mounting attachments and accessories note

◈ Cannot be used on the bearing cap in combination with bellows kit DADB.

◈Only push-in fittings or one-way flow control valves with cylindrical connecting thread (M or G thread) may be used for the compressed air ports in conjunction with the DSNUP.

◈The bellows kit protects the cylinder (piston rod, seal and bearings) against a wide range of media and thus prevents premature wear. It can only be used in combination with an extended piston rod.

Packaging & Delivery

◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.

◈ Port: Ningbo/Shanghai

◈ Supply Ability: 1000 pieces per 12 working days

Typical Applications

◈ Printing (Tension Control)

◈Semiconductor (spot welding machine, chip grinding)

◈Automation Control

◈ Robot

◈Opening and closing doors of automobiles, metros and CNC machine tools

◈Mobile Positioning of Manipulator Coordinates

Specifications

◈ Bore size: 40 mm

◈Acting type: Double acting

◈ Fluid: Air

◈ Operating pressure: 0.15~1.0 MPa

◈Proof pressure: 1.5 MPa

◈ Temperature: -20~70℃

◈ Cushion type: Variable cushion

Company Features
1. AIRWOLF CO, LTD is a Chinese manufacturer specializing in high quality pneumatic cylinder .
2. By using our advanced machines, there are few defected air cylinder provided.
3. AIRWOLF CO, LTD is going to actively lead the pneumatic air cylinders industry with high quality and best service. Check now! AIRWOLF CO, LTD is committed to producing the most valuable air pressure cylinder with less cost. Check now! AIRWOLF CO, LTD will keep making progress, constantly challenge itself and provide better and better services for customers. Check now!

Air cylinder :SI series

Features:

1.Standard design, simple structure, low starting pressure, smooth motion.

2.Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safety and with low noise.

3.Wide range for sizes

4.With self-lubricating bearing, the piston rod is lubrication free.

5.Mickey mouse shape tube.

Specifications:

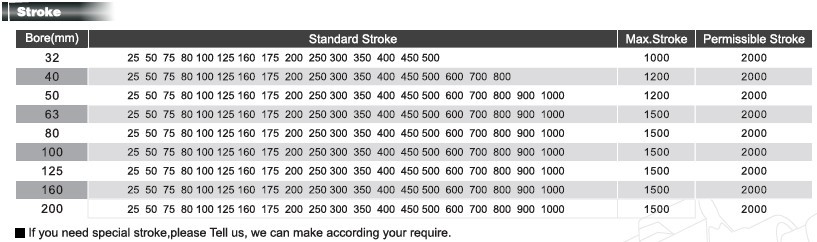

Bore(mm)	32	40	50	63	80	100	125	160	200
Motion Pattern	Double Action
Working Medium	Air

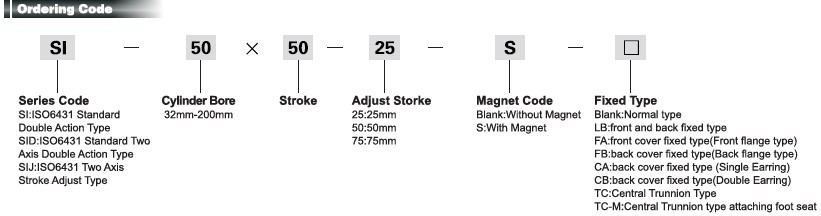

Fixed Type	Normal type:FA/FB/CA/CB/LB/TC
Working Pressure Range	0.1-0.9MPa
Ensured Pressure Resisitance	1.35MPa
Operating Temperature Range	-5-70°C
Operating Speed Range	50-800m/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24						32
Por Size	G1/8"	G1/4"		G3/8"		G1/2"		G3/4"
