Company Advantages1. air pulse valve is available in varying materials and colour options. Airwolf Automation has nearly 15 years of experience in manufacturing pneumatic components
2. The product finds its market place and has a high market share. Airwolf Automation has built a wide sales network over 70 countries
3. The strict quality control system is conducted to ensure the quality of the product. Various easy-to-maintain and easy-to-use pneumatic components are available at Airwolf Automation
FEATURES

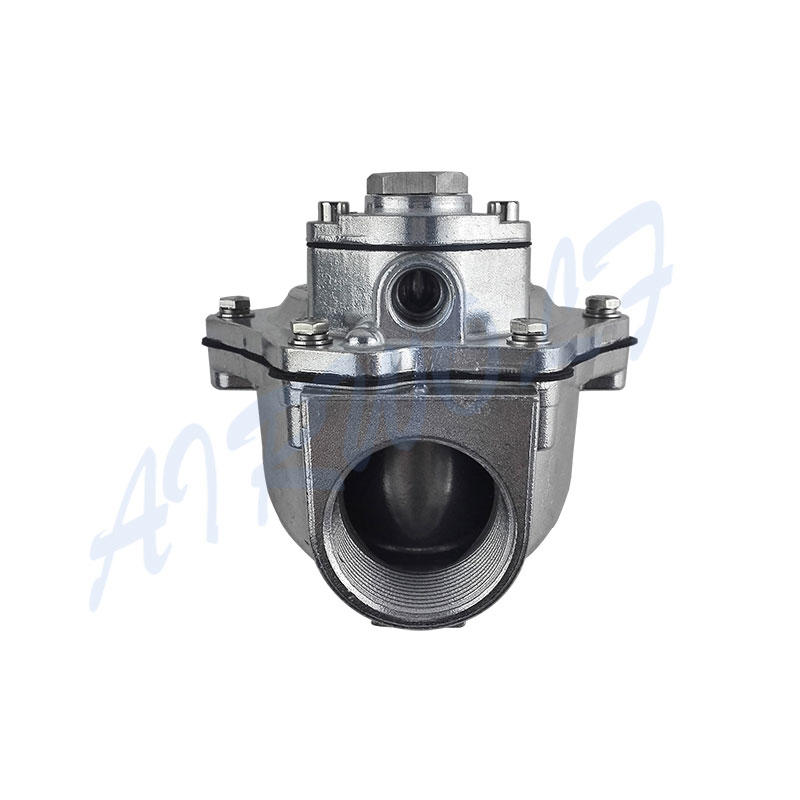

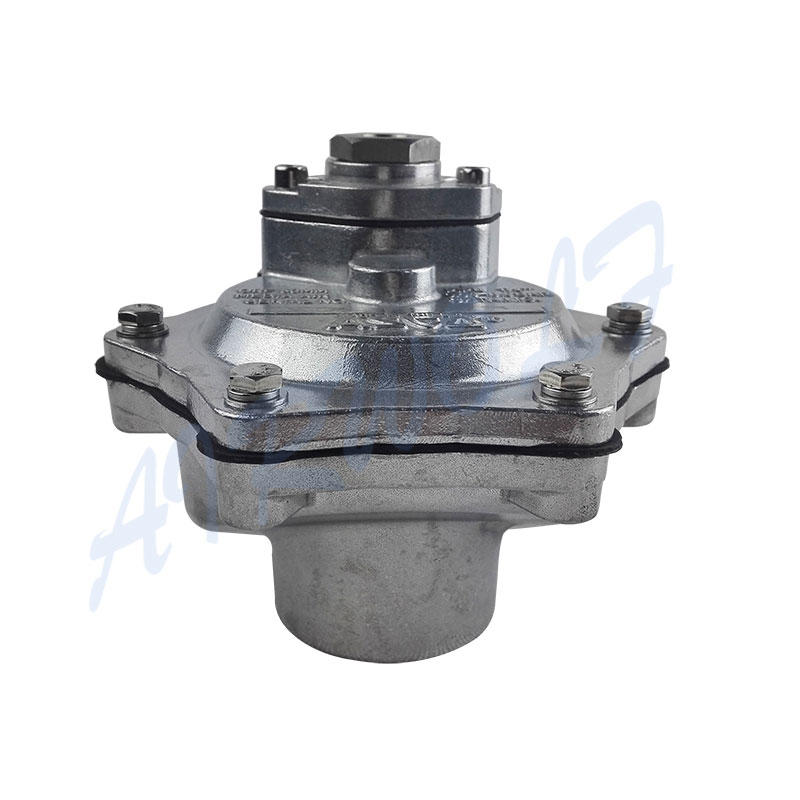

Series 353 are 2-way, remote pilot operated, single stage pulse diaphragm valves. The valve body is aluminium construction with threaded pipe connections.
◈Body: Aluminum alloy
◈ Diaphragm: TPE (hytrel)
◈ Ambient temperature range: -20 to +85°C
◈ Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa]
◈ Electrical safety: IEC 335
◈ Shading coil: Copper
◈ Size:3/4"
◈ Type:Normal Colse
part.1
The valves with long operating life,even under extreme conditions.
part.2
All parts are now accessible for cleaning or replacement.
part.3
ASCO components are intended to be used
only within the technical characteristics as specified on the nameplate.
Changes to the equipment are only allowed after consulting the
manufacturer or its representative. Before installation depressurise the
piping system and clean internally.The equipment may be mounted in any
position.The flow direction and pipe connection of valves are indicated
on the body.
part.4
After maintenance, operate the valve a few times to be sure of
proper operation.
part.5
Before pressurising the system, first carry-out an electrical test. In case of remote pilot solenoid valves, energise the coil a few times and notice a metal click signifying the solenoid operation.
◈Voltages:The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.
Packaging
◈Packaging Details:plastic bags,boxes, carton, pallet or as customer advice
◈Payment Terms:T/T, Western Union,Paypal
◈Supply Ability:1000 pieces per 12 working days.
Shipping
◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
◈Weight:0.7kg
Company Features1. After successfully introducing high technologies, AIRWOLF has been more confident to create high quality air pulse valve.
2. AIRWOLF CO, LTD values technological innovation as the cornerstone of its core competitiveness and sustainability.
3. AIRWOLF CO, LTD will further enhance its sense of social responsibility. Contact us!
