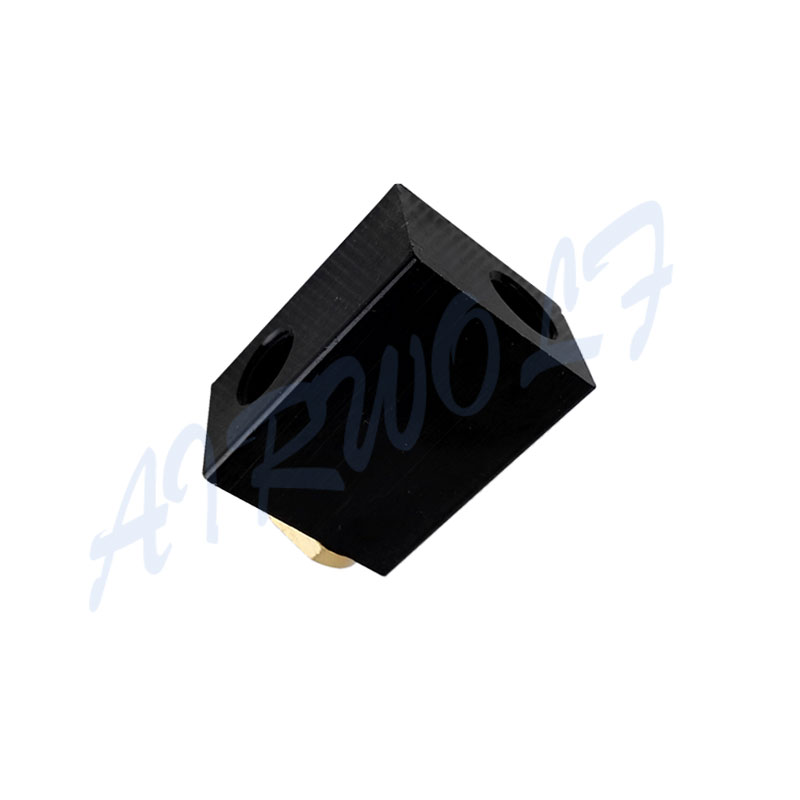

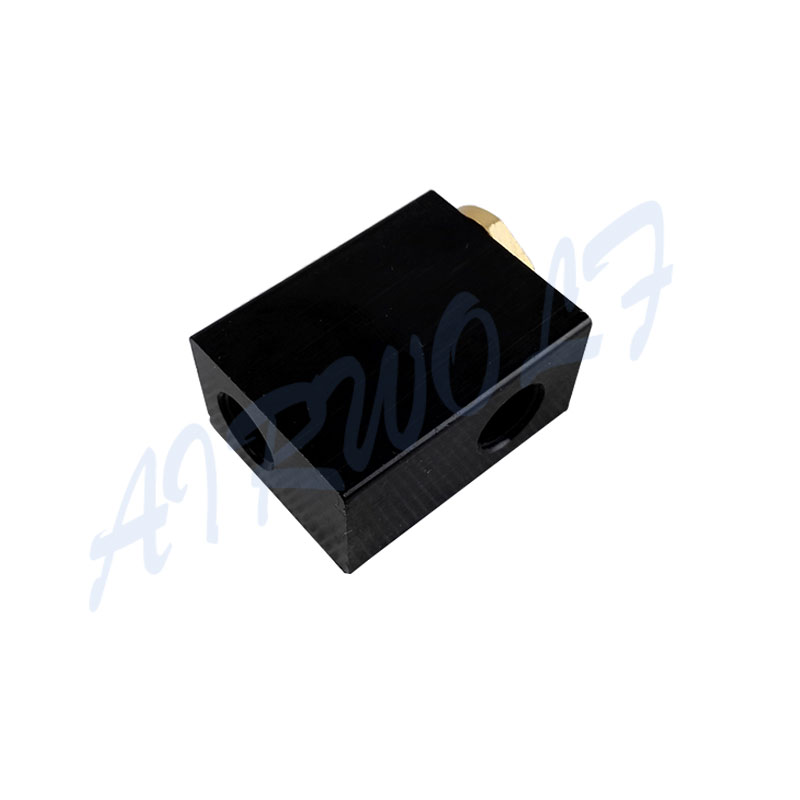

◈ Model: QE-01 QE-02 QE-03 QE-04 QE-06
◈Port size:1/8 1/4 3/8 1/2 3/4
◈ Fluid: Air
◈ Pressure range: 0~1.0 MPa
◈ Material: Aluminum Alloy
◈ Temperature: 0~60℃
Pneumatic control in the important components, one-way direction control components.It is usually arranged between the cylinder and the reversing valve, so that the gas in the cylinder does not pass through the reversing valve and directly discharge from the valve.
Applicable occasions
It is suitable for quick movement of cylinder.
Size
| Type | Bore | L | W | H | A | B | C | D |
| QE-01 | 1/8 | 46 | 20 | 32 | 30 | 4.3 | 27 | 40 |
| QE-02 | 1/4 | 62 | 25 | 40 | 39 | 5.6 | 33.5 | 55 |
| QE-03 | 3/8 | 62 | 25 | 40 | 39 | 5.6 | 33.5 | 55 |
| QE-04 | 1/2 | 98 | 38 | 64 | 40 | 8.5 | 51 | 90 |
| QE-06 | 3/4 | 98 | 38 | 64 | 40 | 8.5 | 51 | 90 |
