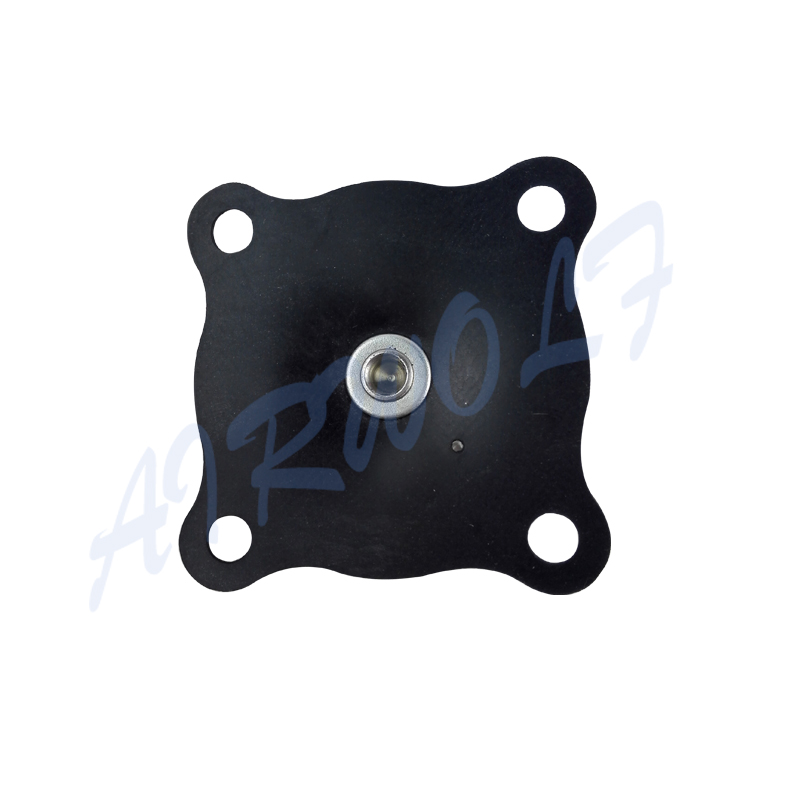

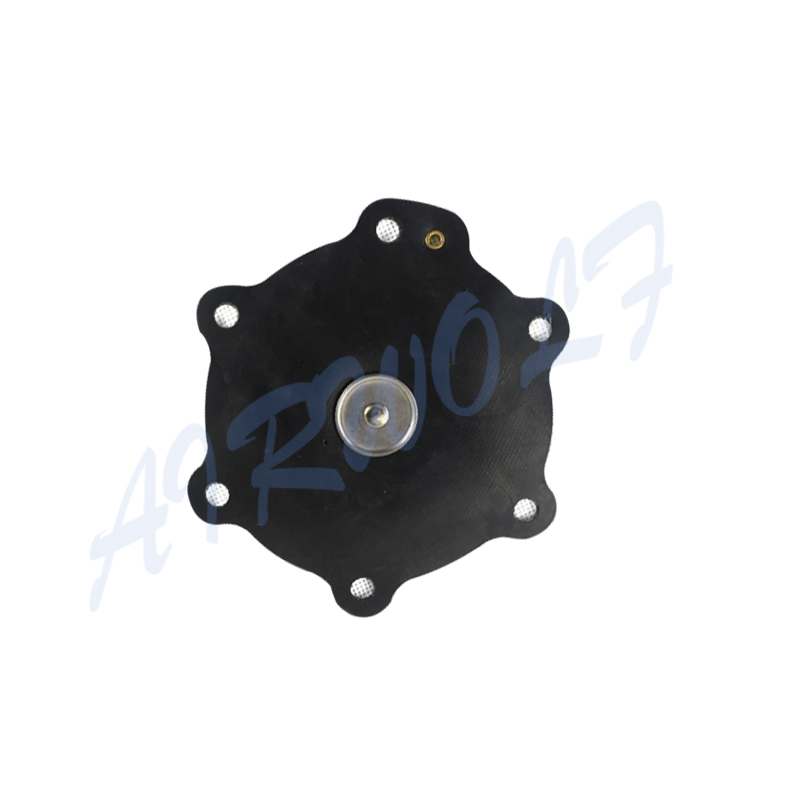

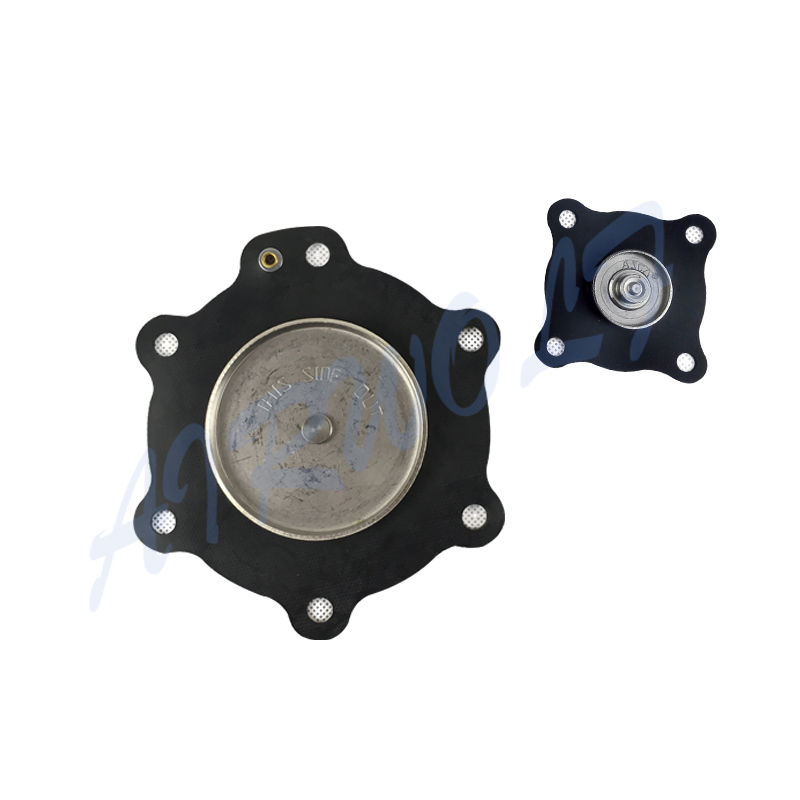

C113684 is diaphragm repair kits for ASCO 2 Inch and 2-1/2 Inch pulse valve. Like
G353A048 and G353A049. Have two material to chose: Viton and Nitrile.
◈Model: C113684
◈Color: Black
◈Working pressure: 0.05-1.0 Mpa
◈Working Temperature: -20ºC- +82 ºC
Aging resistance
Long service life
Working Principle
When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.
| Ordering Code | Fitted Valve Code | Valve port size | Material |
| C113443 | G353A041,G353042, | 3/4", 1" | TPU / NBR |
| C113444 | SCG353A043, SCG353A044 | 3/4", 1" | TPU / NBR |
| C113825 | G353A045 | 1 1/2" | NBR /BUNA |
| C113826 | G353A046 | 1 1/2" | NBR /BUNA |
| C113827 | SCG353A047 | 1 1/2" | NBR /BUNA |
| C113685 C113686 | SCG353A050,SCG353A051,G353A048,G353A049 | 2" , 2 1/2" | NBR /BUNA |
| C113928 | SCEX353.060 | 3" | NBR /BUNA |
