Function of Hydraulic Shock Absorber:It enhances the productivity: As shock absorber can smoothly stop the impaction, therefore it greatly enhancesthe production efficiency of the machine and equipment in HF and high speed operation, It prolongs the mechanical life: As the buffer absorbs the impaction energy, it greatly reduces the impact and shockof kinetic object to the machine. It avoids the mechanical damage due to any impact I shock. It reduces the repaircost, prolongs the service life of the machine, brings about less after sale services.
◈Weight:0.455 KG
◈Stroke:40 mm
◈ Head of the buffer:Nylon
◈Working temperature:-10 ~+85 ℃
Attention
◈ It is strictly prohibited to knock or collide the shaft, which may easily lead to bending of the shaft. The surface of the shaft should not be covered with sewage or dirty oil, and the shaft must operate in a clean environment.Otherwise, it will increase the probability of product leakage and reduce the service life of the product.
◈It is strictly prohibited to spray paint on the pipe teeth and axis, otherwise it will affect the heat dissipation effect and oil leakage.
Function of Hydraulic Shock Absorber
◈It enhances the safety of mechanical operation.
◈It avoids the mechanical damage due to any impact I shock. It reduces the repaircost, prolongs the service life of the machine, brings about less after sale services
Precise hydraulic pneumatic 99% alumina ceramic piston cylinder / plunger / shaft rod for pump
Product Description
Advantages of Ceramic plunger piston pump:
1. Refractory.
2. Long Service Life.
3. High Polished Surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.
They deliver 10 times longer working life than metal rod / tube.
Properties Sheet:
| Properties | Units | 95 Alumina | 99 Alumina | Zirconia |
| Density | g / cm3 | 3.65 | 3.92 | 5.95 - 6.0 |
| Water Absorption | % | 0 | 0 | 0 |
| Coefficient of Thermal Expansion | 10-6 / K | 7.9 | 8.5 | 10.5 |
| Modulus of Elasticity Young’s Mod | Gpa | 280 | 340 | 210 |
| Poisson’s Ratio | / | 0.21 | 0.22 | 0.3 |
| HV Hardness | Mpa | 1400 | 1650 | 1300 - 1365 |
| Flexural Strength @ Room Temperature | Mpa | 280 | 310 | 950 |
| Flexural Strength @ 700℃ | Mpa | 220 | 230 | 210 |
| Compressive Strength@Room Temperature | Mpa | 2000 | 2200 | 2000 |
| Fracture Toughness | Mpa * m½ | 3.8 | 4.2 | 10 |
| Heat Conductivity @ Room Temperature | W / m * k | 18 - 25 | 26 - 30 | 2.0 - 2.2 |
| Electrical Resistivity @ Room Temperature | Ω*mm2 / m | >1015 | >1016 | >1015 |
| Max Application Temperature | ℃ | 1500 | 1750 | 1050 |
| Resistance to Acid Alkaline | / | High | High | High |
| Dielectric Constant | / | 9.5 | 9.8 | 26 |
| Dielectric Strength | KV / mm | 16 | 22 | / |
| Thermal Shock Resistance | Δ T ( ℃ ) | 220 | 180 - 200 | 282 - 350 |
| Tensile Strength @ 25℃ | Mpa | 200 | 248 | 252 |
Detailed Images
Related Products
Ceramic plunger piston
Ceramic tubes / pipes / liners
Packaging and Shipping

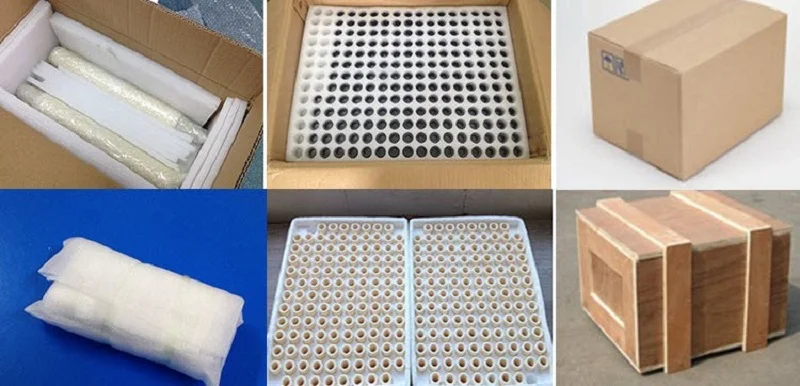

Ceramic plunger piston pump will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.
Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.
.
What Do We Do?
We have very advanced technologies in the production of zirconia and alumina ceramic nozzle, rod, ring, tube, shaft, plate, sleeve, valve, plunger, bearing, and semiconductive ceramics etc.. They are applicable to Electrical, Appliance, Oil & Gas, Energy & Power, Food & Medical, Agriculture, Aerospace, even other high-end fields.
Our products with some certificates, such as SGS, CE, TUV, etc..
