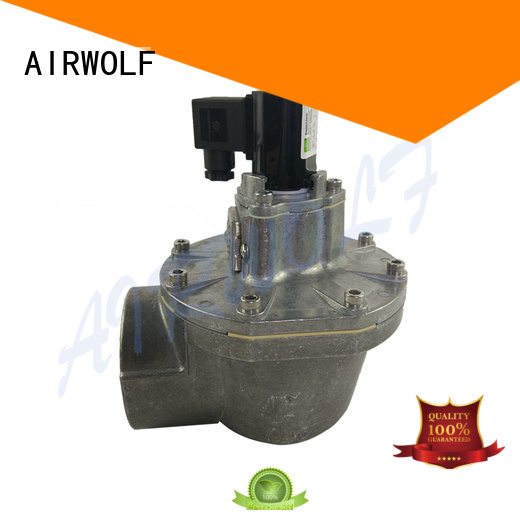

Dust filter systems have gained in importance over the years as environmental standards have risen. Air or gas contaminated with dust must nowadays be filtered before it can be discharged into the atmosphere. Pulse jet valve is the most important part of dust filter systems. It is widely used in Lime Industry, Chemical Working Indusrty, Environment, Mining, Pharmaceutical Indusrty etc.
Ordering Code: 8296800.8171
Material
◈Body: Aluminum
◈ Seat Seal: TPE
◈Spring: 304 SS
◈ Screws: 302 or 304 SS
◈ Port size: 2 1/2"
◈ Switching function: normally closed
◈ Operating pressure: 0.4 to 8 bar
◈ Fluid temperature: -40 °C up to max. +85 °C
◈ Ambient temperature: -20 °C up to max. +85 °C
◈ Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.
◈ Diaphragm and pilot inspection should be conducted annually.
◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.
◈Port: Ningbo/Shanghai
Solenoid 8171 standard voltage: DC24V, AC24V, AC110V, AC220V
Seat seal repair Kit
| Part number | For valves with solenoid 8171 and seal TPE |
| 1261253 | 8296300 |
| 1261253 | 8296400 |
| 1261402 | 8296600 |
| 1268274 | 8296700 |
| 1268274 | 8296800 |
| 1271526 | 8392900 |
Drawing
| Connection size G | H | H1 | L | L1 |
| G 3/4 | 105.5 | 83 | 95 | 50 |
| G 1 | 105.5 | 83 | 95 | 50 |
| G 1 1/2 | 166 | 136 | 135 | 70 |
| G 2 | 190.5 | 149 | 170 | 95 |
| G 2 1/2 | 205.5 | 160 | 170 | 95 |
| Index | Description |
| 101 | Valve body |
| 102 | Valve cover |
| 103 | Diaphragm |
| 104 | Allen head screw |
| 105 | Diaphragm |
| 106 | Valve cover |
| 107 | Silencer |
| 108 | Silencer housing |
| 109 | Allen head screw |
| 400 | Solenoid |
| 702 | Plunger |
| 705 | Pressure spring |
| 706 | Pressure spring |
| 707 | Silencer |
| 1400 | Electrical connector (included) |
Service kits
| Part number | For valves with solenoid 8171 and seal TPE |
| 1261253 | 8296300 |
| 1261253 | 8296400 |
| 1261402 | 8296600 |
| 1268274 | 8296700 |
| 1268274 | 8296800 |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2.
If the products which were customized, we will complete the production
within a specified period of time, and send it out the first time, we
can promise it.
3. Also we can send by your delivery acount if you want.
4.
We have a variety of ways to send goods, usually DHL, Fedex, TNL will
be normal ways. If you require use of a courier, we can do it.
Competitive Advantage
| Our product features | Our Services Guarantee: |
| 1) Competitive price | 1) Prompt respond (Reply with 24 hours) |
| 2) Good quality | 2) Free Samples (Customer pay for the delivery cost) |
| 3) Professional Packaging | 3) Registration support. |
| 4) Produce according to Customers’ instruction | 4) Photos/videos are available during production. |
| 5) None delay shipment | 5) Loading inspection, and send loading photos before shipment. |
Warranty
All
item Comes with Basic 3 Month Sellers Warranty, if item defective in 3
Month, We will offer replacement without extra Charger(including
shipping fee)After we Receive the Defective item.
If item Defective
after 3 Month, Buyers can still send it back, We will contact suppliers
or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee
For resend the replaced item.
After-sale Service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
