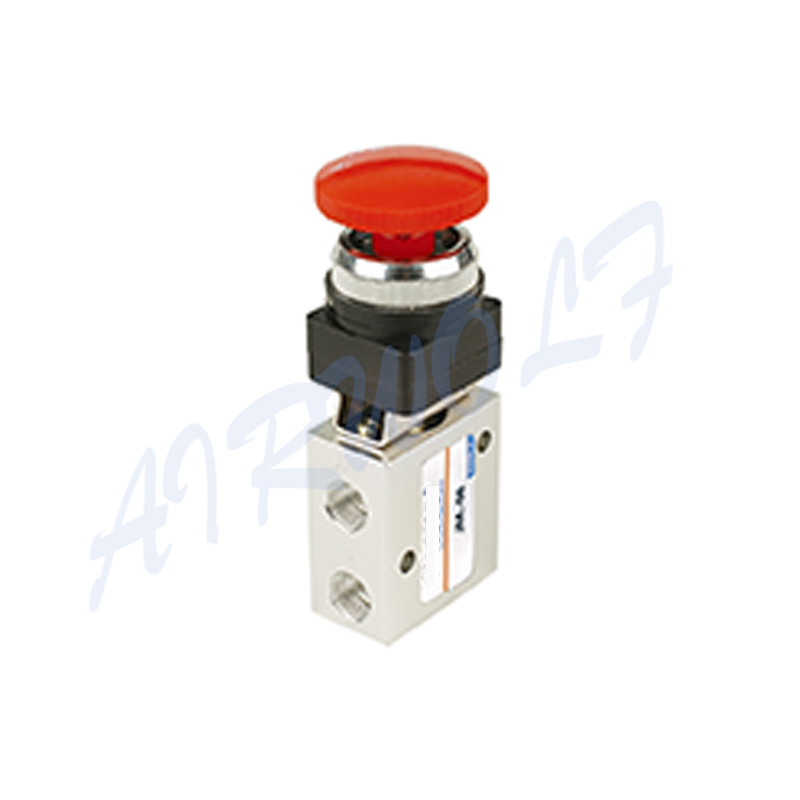

Pneumatic 3/2 way Manual Mechanical valve JM322R JM-07 JM322PP JM322PPL JM322PB JM-06A JM322EB



Technology

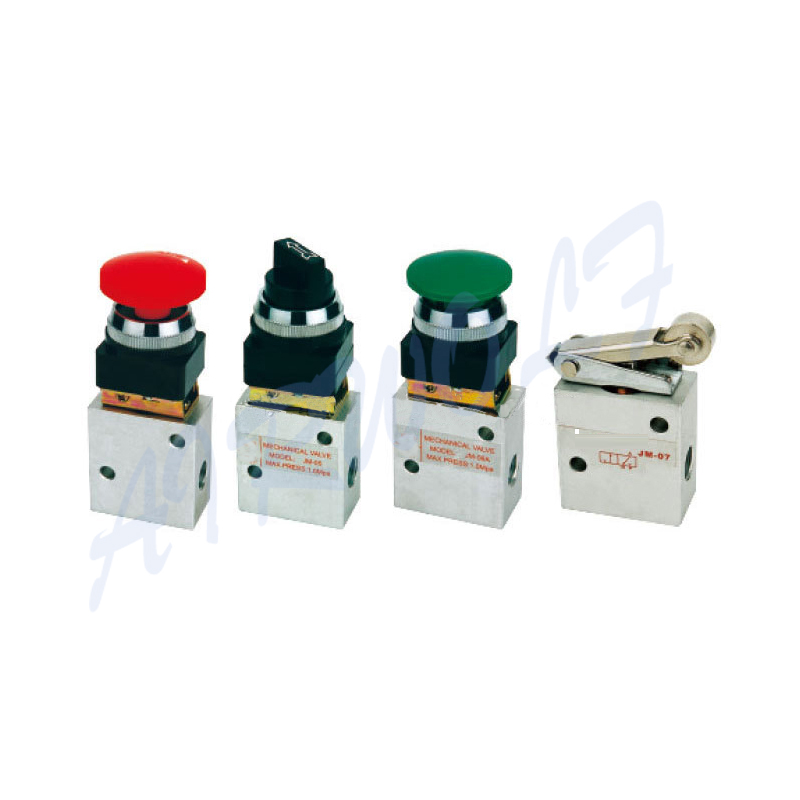

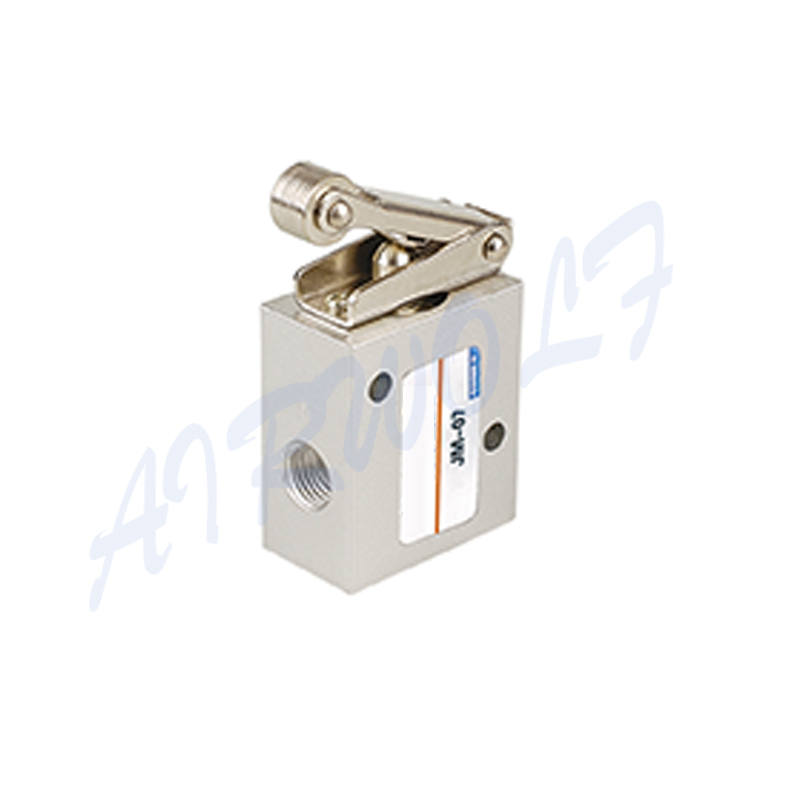

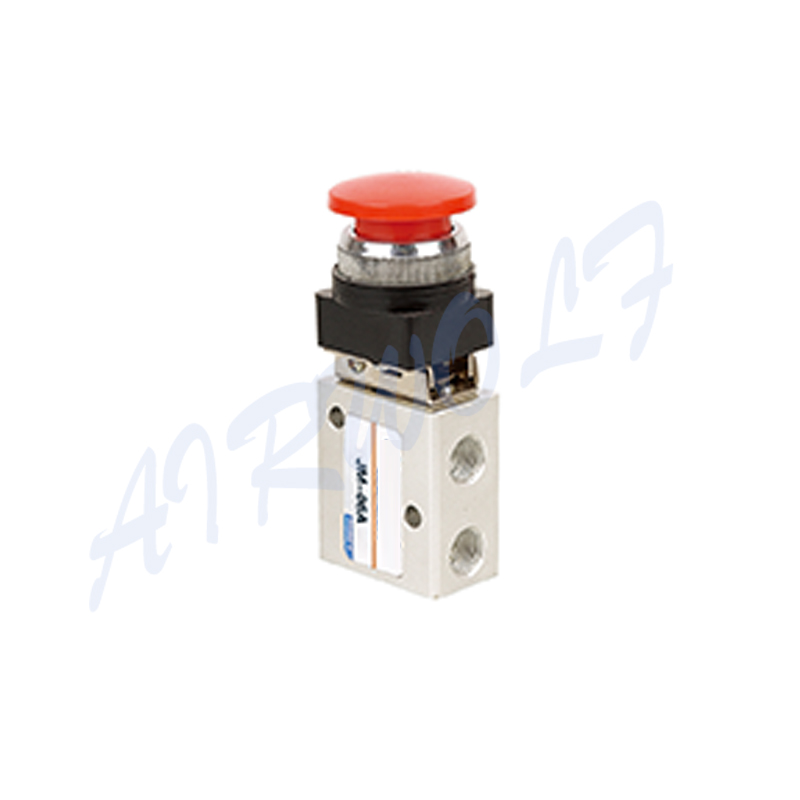

◈Models: JM-05， JM-06， JM-06A, JM-07

◈Port size:1/4"

◈Working pressure range: 0~0.8Mpa

◈Operating temperature range: 0~60C

◈Working Medium: 40 Micron filtered air



part.1

The control set is made of engineering plastic which only allows manual operation and switching valves through metal impact is forbidden.



part.2

Pay attention to the reversing stroke. The reversing stroke can not surpass its stroke stipulated in stroke control table when the direction change of the valve is forced by any external forces, otherwise it willcause the damage of the valve.

Specification

Model	CM3()-05	CM3()-06	CM3()-08
Operating	External control
Fluid	Air(to be filtered by 40 μm filter element)
Pressure range	0~1.0MPa
Proof pressure	1.5MPa
Temperature	-20~70℃
Valve type	3 port 2 position
Orifice size	2.0mm²	2.5mm²	15.0mm²
Lubrication	0.11	0.14	0.84
Port size	M5x0.8	1/8"	1/4"
Material	Aluminum Alloy

Packaging shipping
1. If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
2. By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
