normally open solenoid valve water | Water solenoid valves

Product Information
Customer Reviews

Application Scope

pneumatic parts supplier's application range is specifically as follows.AIRWOLF is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.

Company Advantages
1. The production of AIRWOLF normally open solenoid valve water is strictly controlled with necessary electrostatic protection, from the production environment and equipment to operation staff.
2. The quality of the product can withstand the test of time.
3. Due to its excellent properties, this product is widely used in the global market.
4. The development of the product keeps track with the current industry trends.

Detailed Description

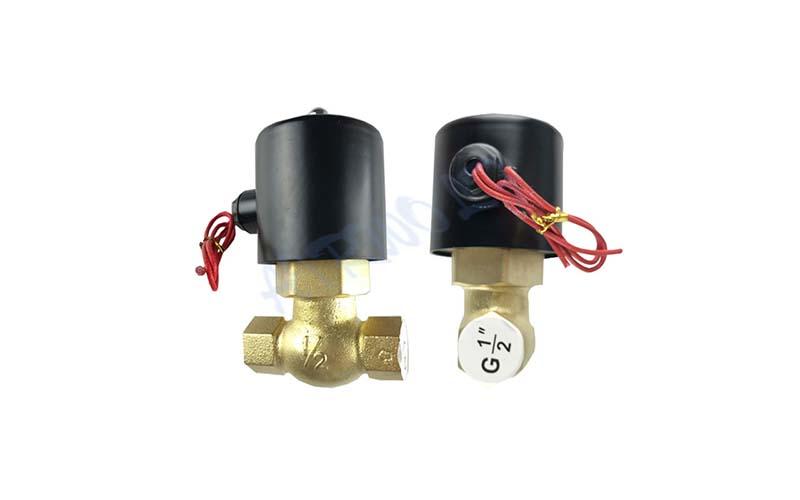

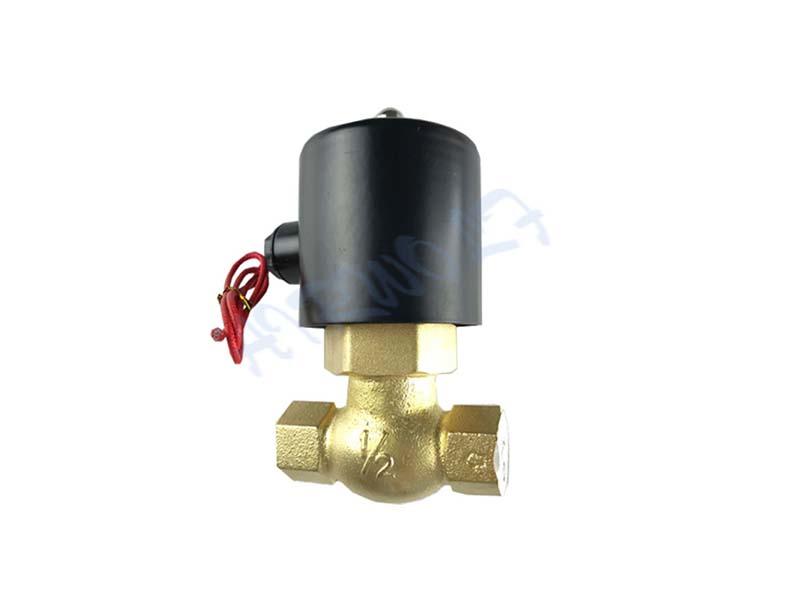

US series is direct-acting, conductive, and normally closed (NC) 2/2 way solenoid valve.

1.Able to operate under no differential pressure

2.Material PTFE is applied to steam.

Features & Benefits

◈Model: US-10 US-15 US-20 US-25 US-35 US-40 US-50 Joint Pipe Bore:G1/8;G1/4;G3/8;G1/2;G1;G2.

◈Operation Fluid Viscosity:20 CST (Below)

◈Working-pressure:0~2.0MPa

◈Max. Pressure Resistance:3.5MPa

◈Operating Temperature Range:-5~+80℃

◈Standard voltage:AC220,AC110V,AC24V,DC24V,DC12V.

◈Voltage Range:±10%

◈Material of Body:Brass

◈Material of Oil Seal:NBR, EPDMVITON / NBR, EPDM or VITON

◈Type:Normal Close Type ; Normal Open Type

◈Motion Pattern:Direct Drive Type

◈Working Medium: Air, Water, Oil, Gas,Fuel

Cautions

part.1

Before pipelining, the pipe line must be very clean without any contaminants or impurity.

part.2

To extend the lifetime, Y-line filter should be installed in the front end of solenoid valve.

part.3

The temperature of steam should not over 185℃

part.4

AC voltage tolerance: ± 10%; DC voltage tolerance: ± 1%

part.5

It should be installed horizontally; vertical installation is not advisable.

Application

◈ Water solenoid valve is suitable for water or liquid as the working medium, can automatically control or remote control of water, oil, liquid and other working medium pipeline on and off.Because this valve USES the rubber seal, therefore to the working medium cleanliness greatly reduces, has opens and closes quickly, the reliability high characteristic.

Not Suitalbe For Fluid As Below

◈Liquid status when it is in high temperature; solid status when it is in low temperature.

◈Corrosive fluid

◈Viscosity over 50cst

Company Features
1. Today, AIRWOLF CO, LTD still dedicates to serve all of the customers' needs on normally open solenoid valve water even it has become a leader in this industry.
2. AIRWOLF has been putting a lot of investment into research and development of brass solenoid valves water .
3. High quality is always put in first place in AIRWOLF CO, LTD. Contact! Excellent quality and superb service all comes from AIRWOLF. Contact!
