OEM Pneumatic Vibration Equipment Manufacturer, Contact Now

Product Information

Material: Stainless Steel

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Detailed Description

The vibration (linear) is produced by a freely vibrating differential pressure piston. In the standard version B+C the piston is knocking against an elastomer impact plate and works like a rubber hammer. In the version B without impact plate the piston works against an air cushion (noise reduced).

Technology

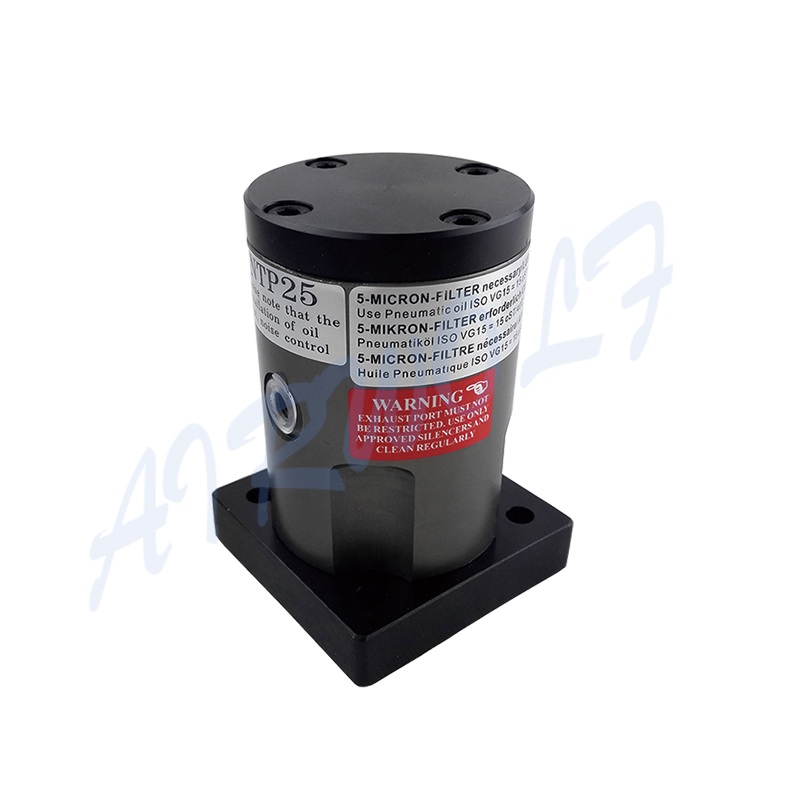

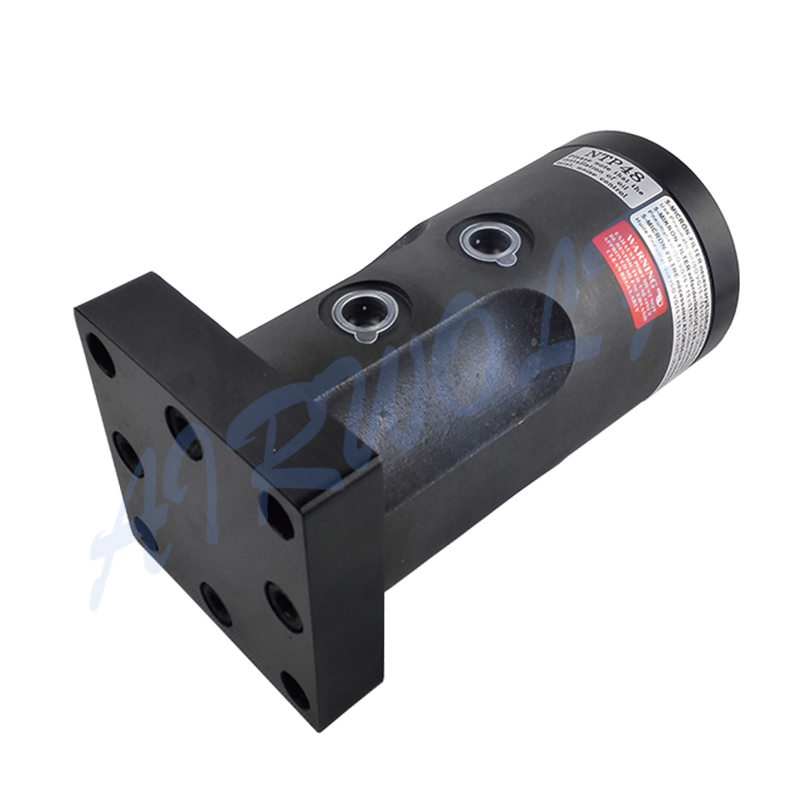

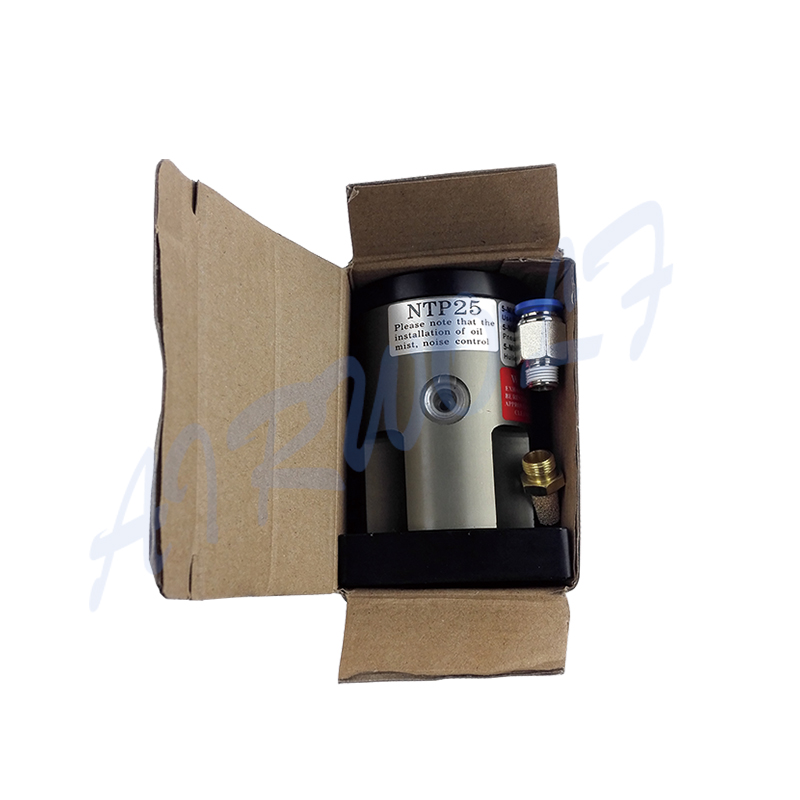

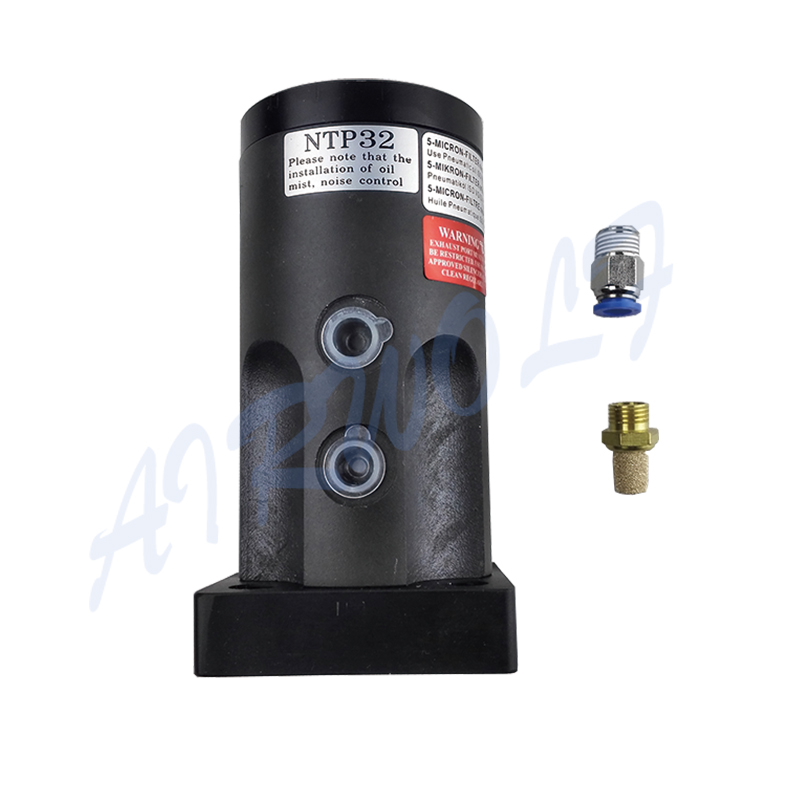

◈ Model: NTP25 NTP32 NTP48

◈ Drive medium: Compressed air or nitrogen (Filter ???? 5 μm), preferably with oil mist

◈ Operating pressure: 2 bar to 6 bar

◈ Ambient temperature: 5ºC to 60ºC

Applications

part.1

The pneumatic piston vibrators series NTP are especially suitable for knocking off material adhering to container walls in funnels, containers, silos and hoppers. They can be used as drives for vibrating tables and chutes and as assistance for emptying containers.

part.2

Special features of NTP vibrators are: impacts like a rubber hammer or vibrationwith high peak acceleration.

Specification

After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
