Pneumatic Manual Valves, Hand Operated Pneumatic Valve

Product Information

Material: Aluminum Alloy

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Detailed Description

Manual valve is the control part of pipeline fluid conveying system. It usually use the externa forces from cams or rams to change the fluid flowing directions.

Function

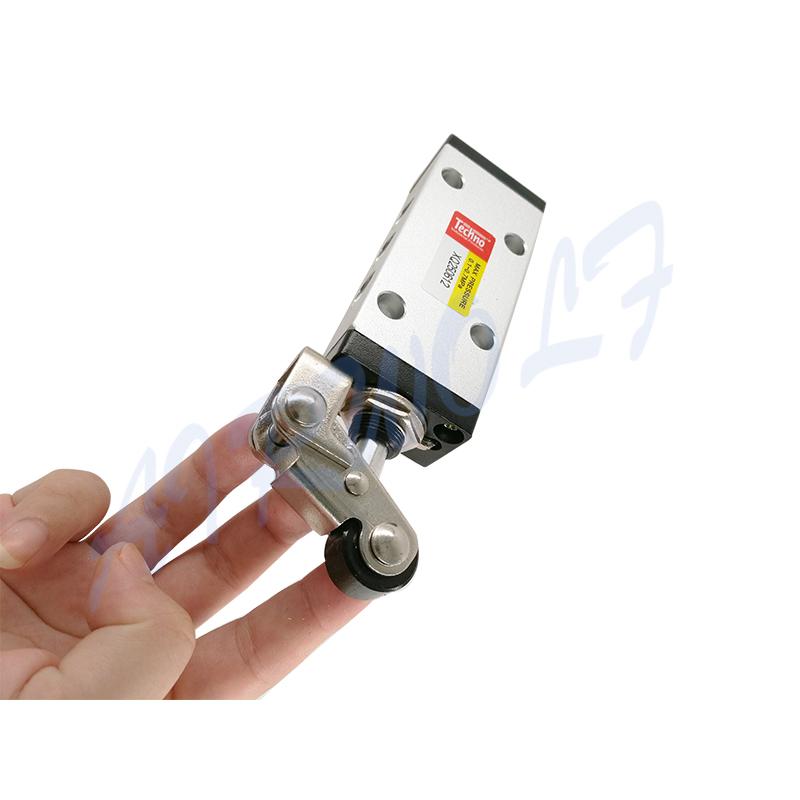

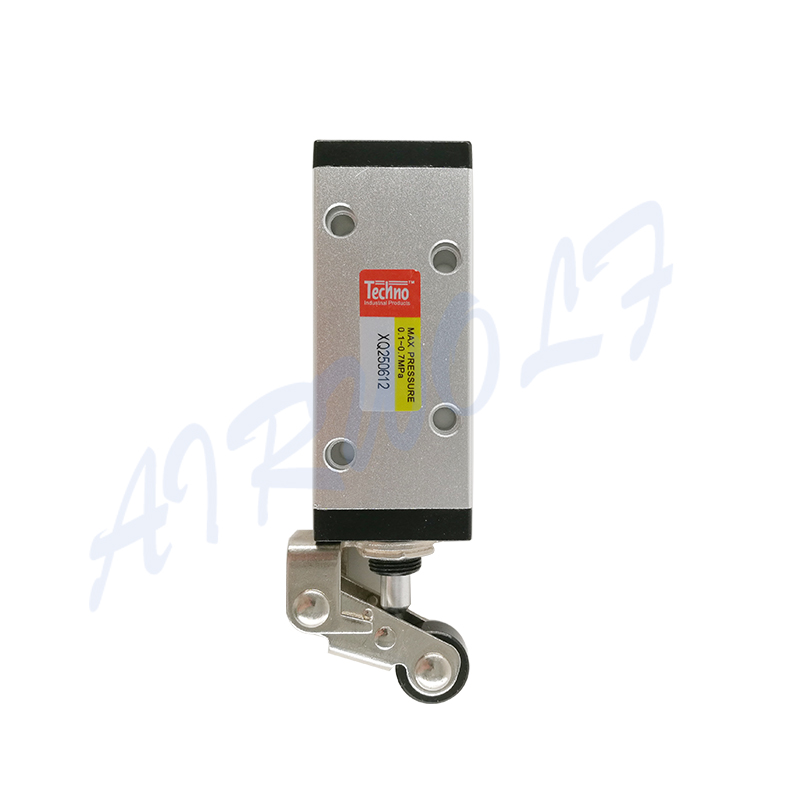

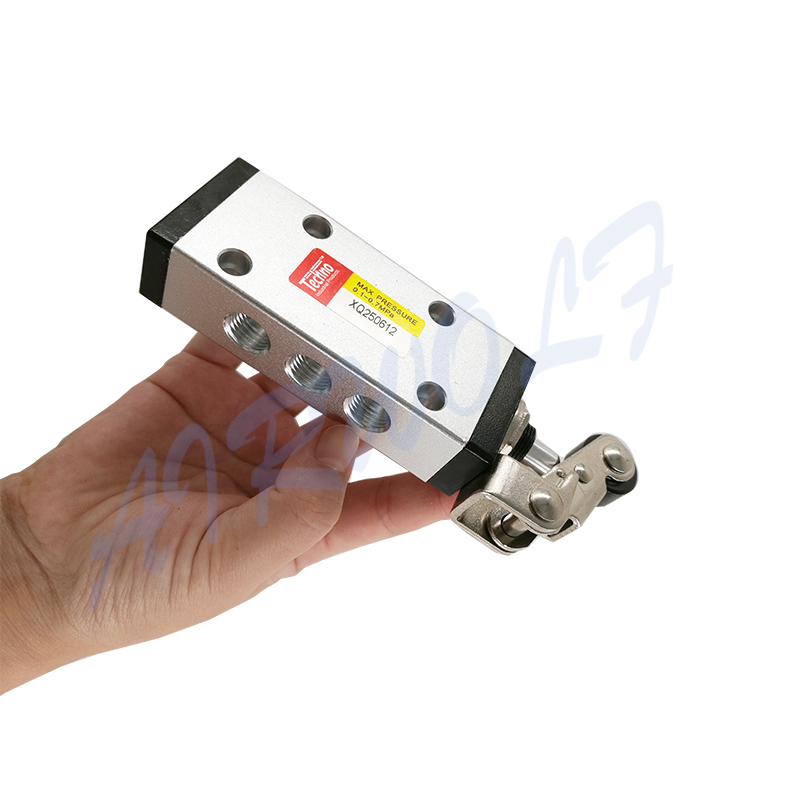

◈ Model: XQ250612 XQ230612

◈ Color: Slivery

◈ Fluid temperature: -10~+60℃

◈ Ambient temperature: 5~60℃

Feature

part.1

Manual Valve: This wheel or worm gear reducer can be set between the handwheel and the stem. If necessary, the universal joint and transmission shaft can also be used for long-distance operation.

part.2

When a mechanical valve is in stalled, the moving direction of the ram should be in angle against the valve and the plunger should be pressed down a S distance (the direction-changed stroke)

Specifications

Model	Type	Port size	Nominal dia.	Operating force	Operating	Fluid	Ambient	Service life
Model	Type	Port size	mm	Operating force	pressure	temperature	temperature	Service life
XQ230410	3/2	G1/8	4	26N	0~1.0MPa	-10~+60℃	5~60℃	10 million times
XQ230610	3/2	G1/4	6	35N
XQ250410	5/2	G1/8	4	30N
XQ250610	5/2	G1/4	6	40N
XQ230411	3/2	G1/8	4	26N
XQ230611	3/2	G1/4	6	35N
XQ250411	5/2	G1/8	4	30N
XQ250611	5/2	G1/4	6	40N
XQ230412	3/2	G1/8	4	16N
XQ230612	3/2	G1/4	6	24N
XQ250412	5/2	G1/8	4	19N
XQ250612	5/2	G1/4	6	27N
XQ230413	3/2	G1/8	4	17.8N
XQ230613	3/2	G1/4	6	20N
XQ250413	5/2	G1/8	4	21N
XQ250613	5/2	G1/4	6	23N

After-sale service

◈We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

◈Serves time
0:00 - 23:59
From Monday to Sunday

Packaging shipping

◈ If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

Products shopping guide

For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
