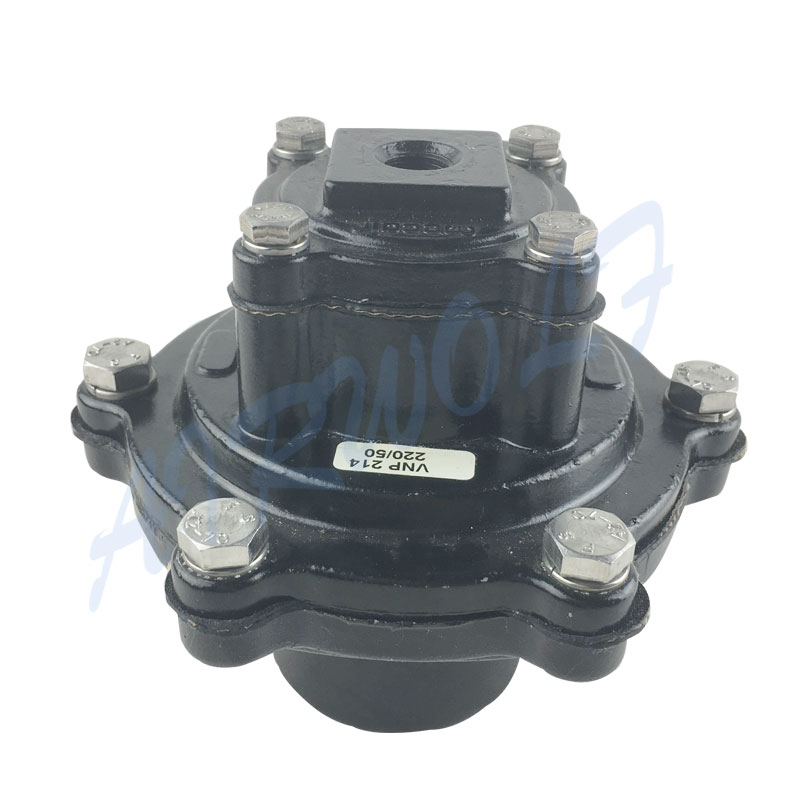

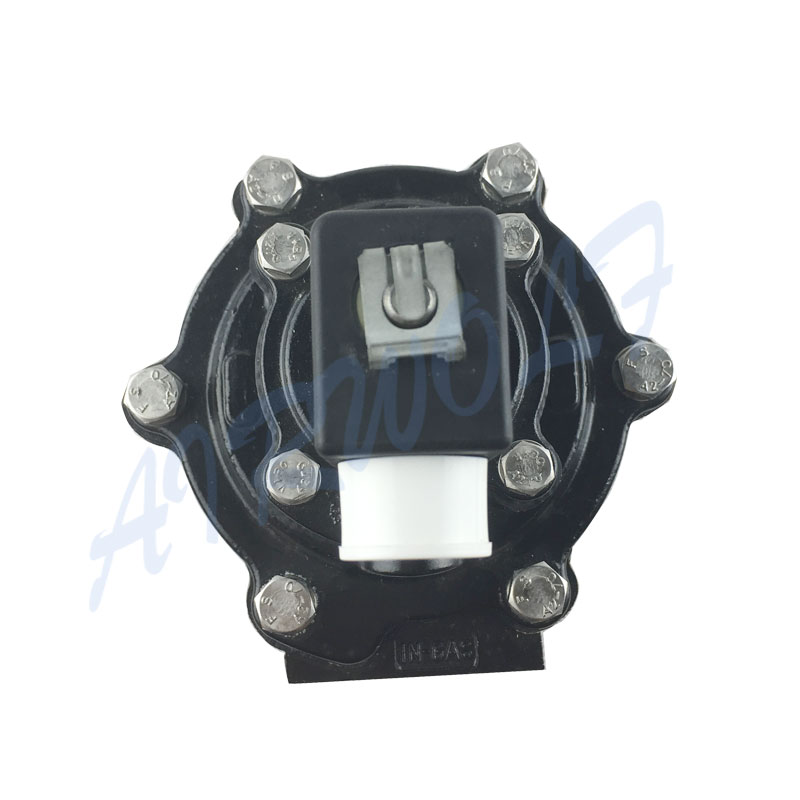

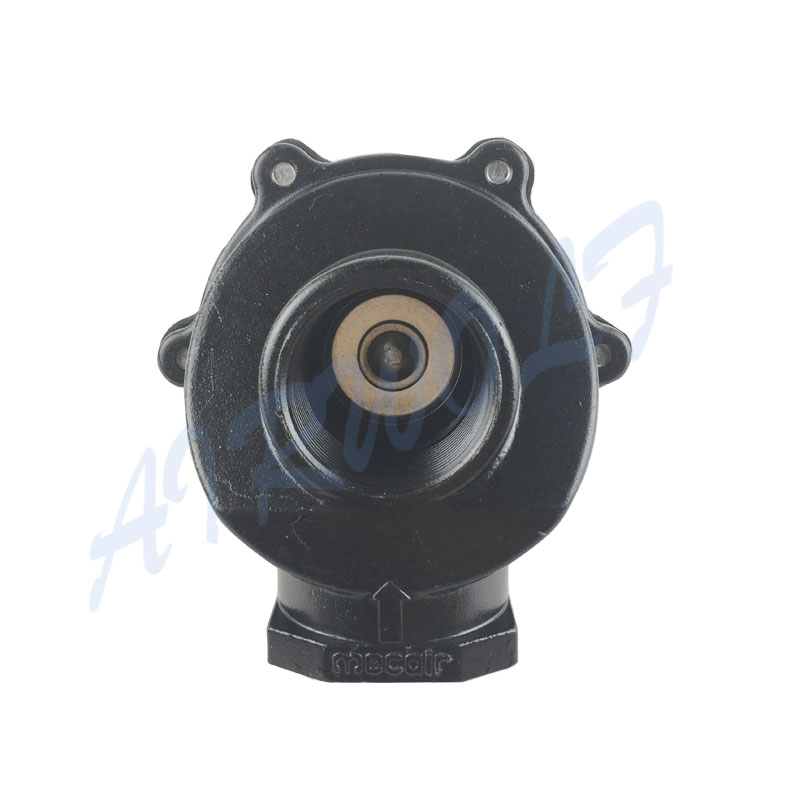

MECAIR type 1-1/2 inch aluminium black VEM214 pneumatic control pulse jet valve



CONSTRUCTION

◈Base-plate: Anodised aluminium

◈ FLUIDS:Filtered air and oil free

◈ PRESSURE RANGE: From 0.5 to 7.5 bar

◈ COIL INSULATION : Class H

◈ ELECTRICAL PROTECTION :IP65 EN60529

◈ DIAPHRAGM :NBR

◈ DIAPHRAGM SPRING: Stainless steel

◈Electrical connection:Spades according to DIN 46244



part.1

Bolts and screws are in stainless steel. The 200 Series is
available in the following versions:
• VNP, with integrated solenoid pilot
• VEM, with remote pneumatic connection.



part.2

DIAPHRAGM Standard
Nitrile: −20°C/+80°C
Optional
Viton: −30°C/+200°C



part.3

AMBIENT TEMPERATURE −20°C/+60°C



part.4

VOLTAGE RANGE 12 V DC (supply +10% max.) 18 W
24 V DC (supply +10% max.) 18 W
48 V DC (supply +10% max.) 18 W
110 V DC (supply +10% max.) 18 W
24 V 50/60 Hz (supply +10% max.) 38/31 VA
48 V 50/60 Hz (supply +10% max.) 41/32 VA
115 V 50/60 Hz (supply +10% max.) 63/53 VA
220/240 V 50/60 Hz (supply +10% max.) 46/37 VA



part.5

Upon request: Integral pilot valves with ATEX Certification: • ATEX II 3 D (94/9/CE); for the above approved
model the correct code to use is VEM+PV 24V/DCX
(solenoid coil is 24 V-DC/18 W and DIN connector in conformity with the ATEX Directive 94/9/CE) (PLG11-ATEX).
Remote pilot valves meet the requirements of: • ATEX
II 2 GD when mounted with PXA Pilot or CXD Enclosure
(94/9/CE).

◈Voltages:The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.

Package

◈Packaging Details:plastic bags,boxes, carton, pallet or as customer advice

◈Payment Terms:T/T, Western Union,Paypal

◈Supply Ability:1000 pieces per 12 working days.

◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.

◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

◈Weight:0.85kg
