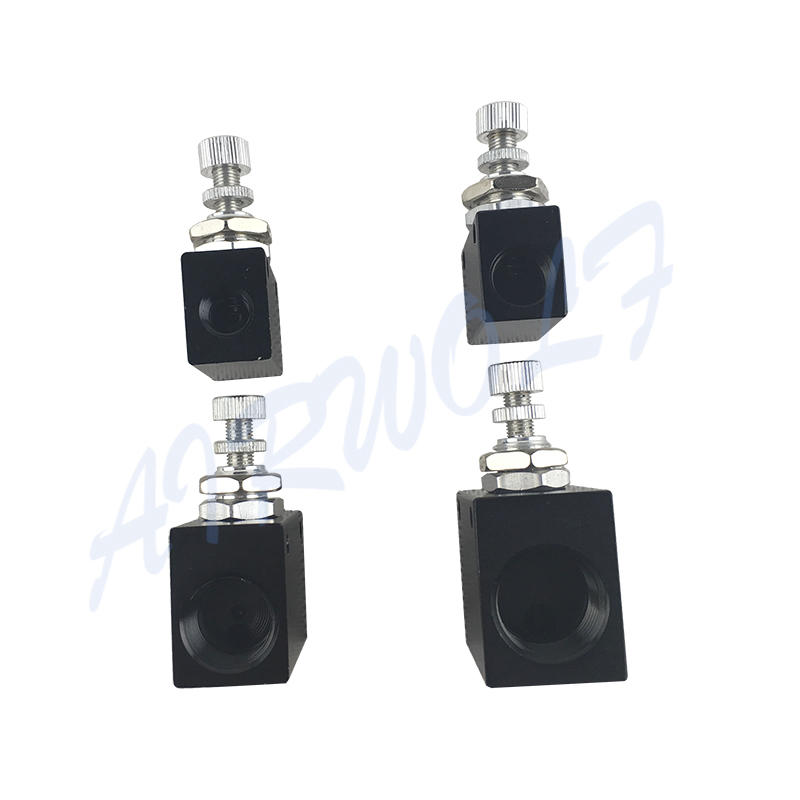

Offers Automatic industrial lined flow control valves for all pneumatic cylinders.These valves with small and compact structure, sensitive reaction, long lifespan. The adjustment screw is both sensitive and precise.Allows air to exhaust and cut off air flow. Can be mounted in various position to facilitate installation and application.
◈ Port size: 1/8", 1/4", 3/8", 1/2"
◈ Fluid: Air(to be fitted by 40μm filter element)
◈ Pressure range: 0.05~0.95MPa
◈ Temperature: 0~60℃
◈ Body material: Aluminum alloy
Small and compact structure.
Allows air to exhaust and cut off air flow. The adjustment screw is both sensitive and precise.
Model | ASC100-06 | ASC200-08 | ASC300-10 | ASC300-15 | |
Fluid | Air(to be filtered by 40 μm filter element) | ||||
Port size | 1/8" | 1/4" | 3/8" | 1/2" | |
Pressure range | 0.05~0.95MPa | ||||
Proof pressure | 1.5MPa | ||||
Temperature | -20~70℃ | ||||
Material body | Aluminum alloy | ||||
Flow (L/min) | Control flow | 200 | 450 | 1250 | 1650 |
Free flow | 400 | 800 | 1500 | 2500 |
Accessory parts:
1. Pneumatic fitting
2. muffler
Attention
1. The valve should be used the medium lubricated by 40μm filterelement.
2. Check the voltage satisfied with the technical requirement.
3. Use the silencer to keep the exhaust port dust away.
4. No need to add oil for lubrication.
