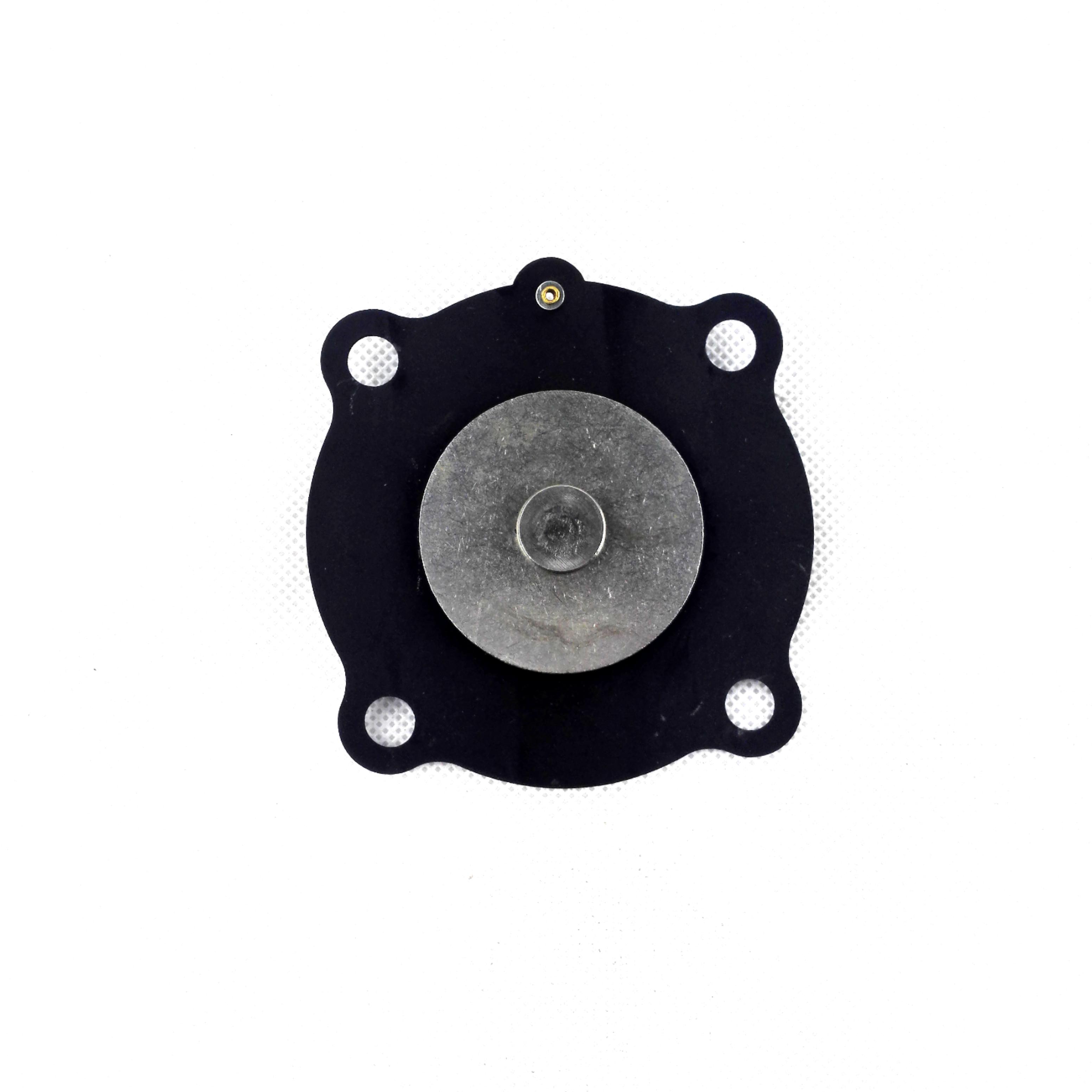

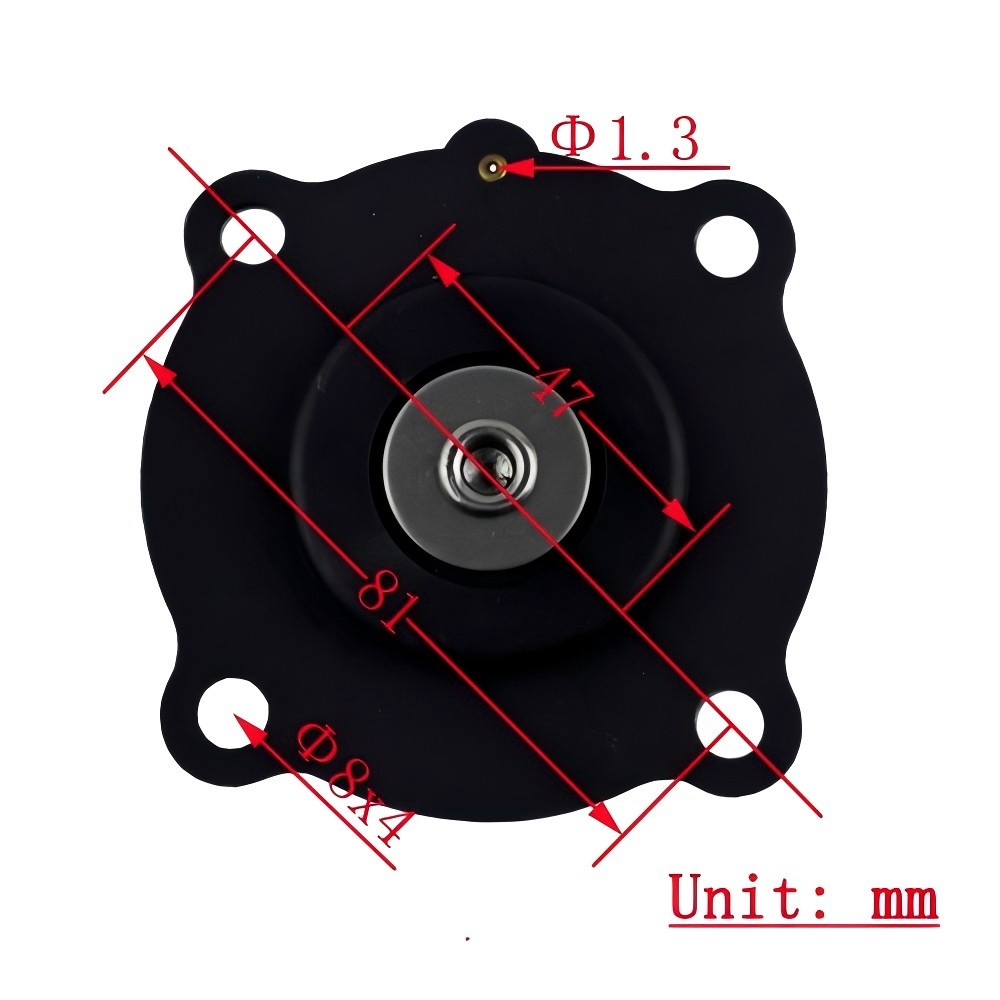

Joil Pulse Valve Diaphragm Dn25 Jisi25 Jici25 Jicr25 Korean Asahi 1-inch...

Product Information

Material: Nitrile rubber

Delivery Time: Nitrile rubber

Start Port: Ningbo

Supply Ability: 5000

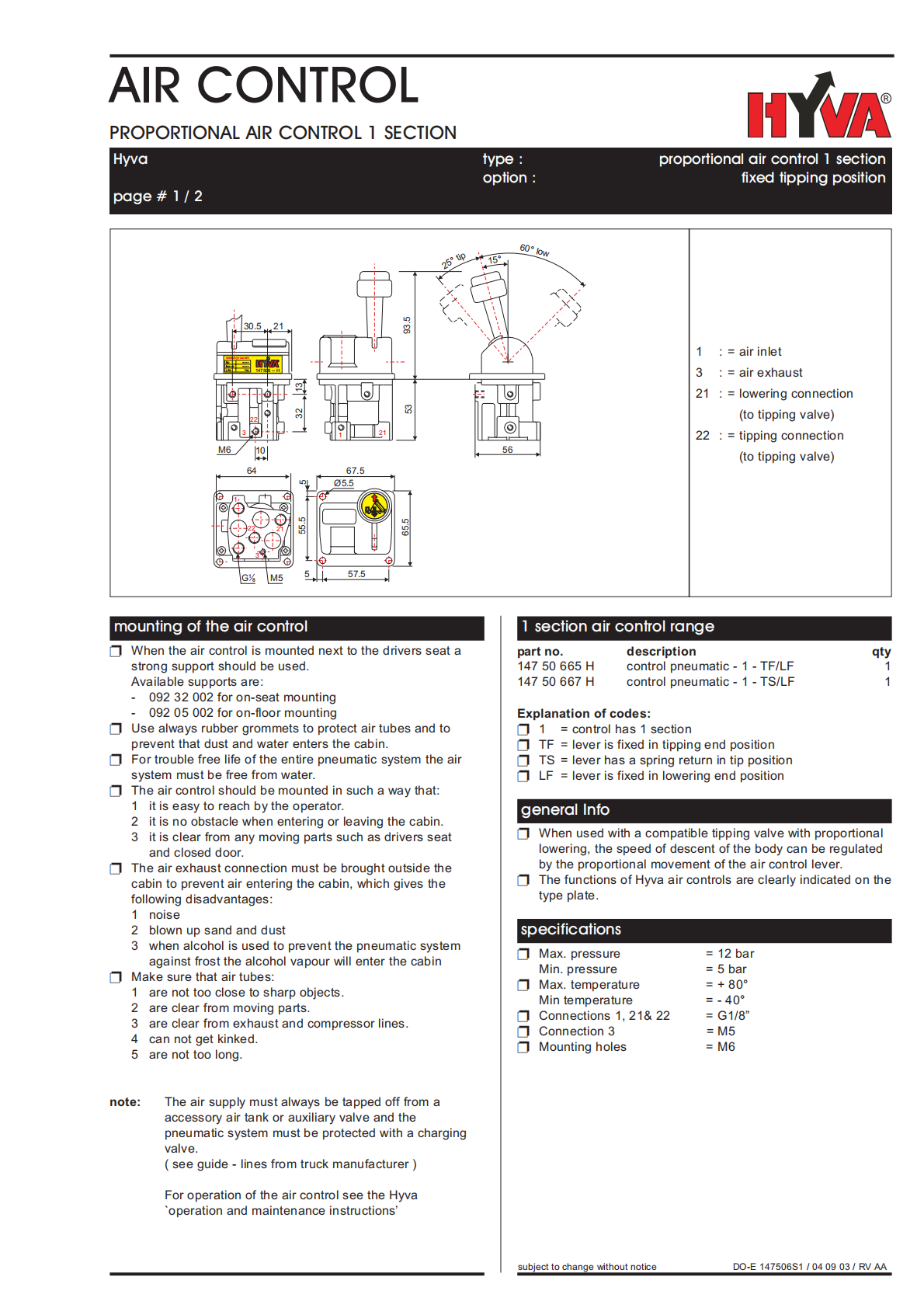

PROPORTIONAL TIP CONTROL 1- AND 2-SECTIONS (ALUMINIUM HOUSING)

Max. pressure =12 bar

Min. pressure =5 bar

Max. temperature =+80°

Min temperature =-40°

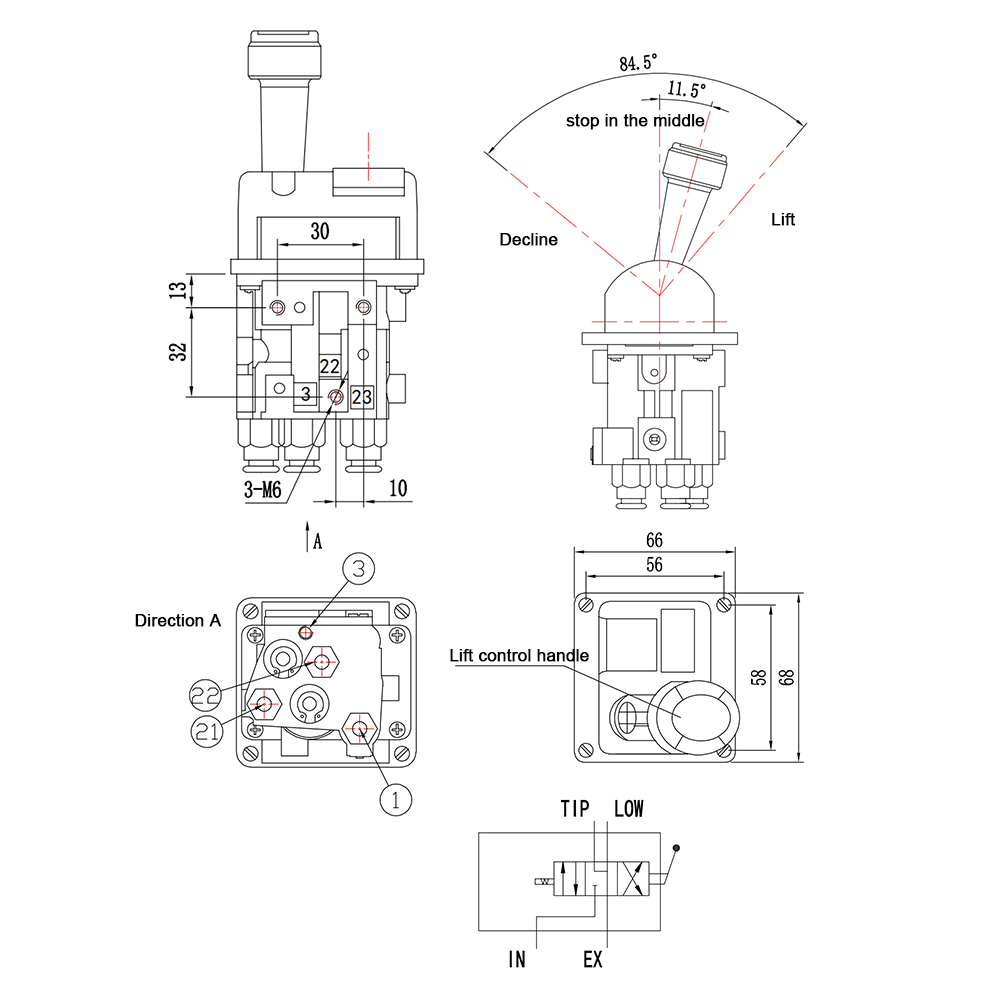

Connections 1,21& 22 =G1/8”

Connection 3 =M5

Mounting holes = M6

Part no.	Description	Section(s)	Max. pressure	Min. pressure	Voltage	Hose	Tipping	PTO

			(bar)	(bar)	lamp (V)	connections		disengage
14750667H	TIP CONTROL-AIR-TS/LF	1	12	5	24	6 mm	Spring	-
14750665H	TIP CONTROL-AIR-TF/LF	1	12	5	24	6 mm	Fixed	-
14750646H	TIP-PTO CONTROL-AIR-TS/LF-PNL	2	12	5	24	6 mm	Spring	Manual
14750652H	TIP-PTO CONTROL-AIR-TS/LF-PAL	2	12	5	24	6 mm	Spring	Automatic
14750644H	TIP-PTO CONTROL-AIR-TF/LF-PNL	2	12	5	24	6 mm	Fixed	Manual
14750650H	TIP-PTO CONTROL-AIR-TF/LF-PAL	2	12	5	24	6 mm	Fixed	Automatic

Products Show

Our Service

High quality

Passed the ISO9001:2008 quality system authentication and ROHS authentication.

Customer service

We have a great sales service team, We can provide the most perfect service for customers at all times.

FTA Certificate of origin

We can provide all kinds of certificates according to customers'needs.
FTA.CO,CQ,and Form E.

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Could you add our logo on your products?

A: Yes,if your quantity more than 50pcs. we could add your logo on the products.

Q: How long is your delivery time?

A: Generally it is 1-2 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Warranty

All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.

If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.

Packing and delivery

Packing Details : Standard Carton,and other special packing according to customer's requirement

Delivery Details : Ready to ship,1-5 days after payment
