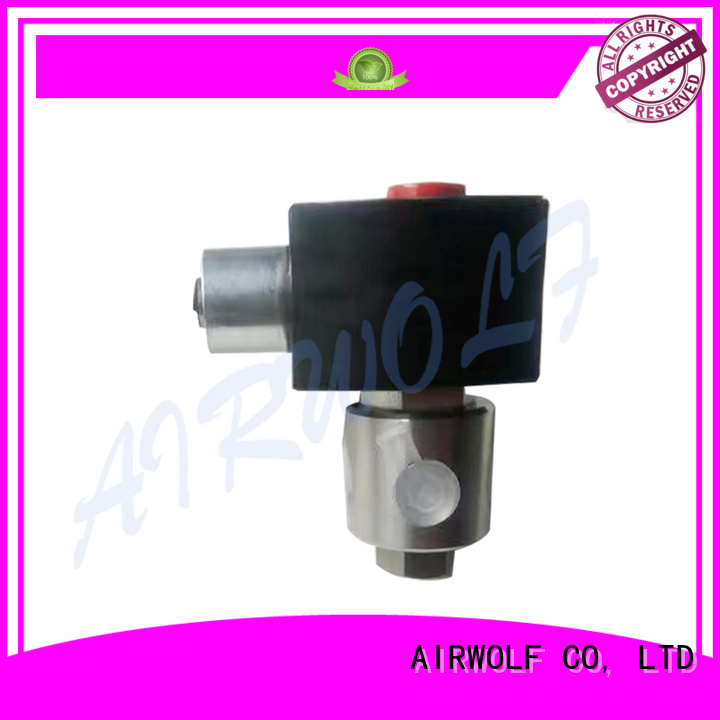

◈ Model: EF8320G202
◈ Type: 3/2 way
◈ Nominal Ambient Temp. Ranges:
AC: -40°F to 125°F (-40°C to 52°C)
DC: -40°F to 104°F (-40°C to 40°C)
◈ Standard Voltages: 24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz). 6, 12, 24, 120, 240 volts DC. Must be specified when ordering. Other voltages are available when required.
No Minimum Operating Pressure Differential required
Specification
Valve Parts in Contact with Fluids | ||
Body | Brass | 303 Stainless Steel |
Seals and Disc | NBR | |
Core Tube | 305 Stainless Steel | |
Core and Plugnut | 430F Stainless Steel | |
Core Springs | 302 Stainless Steel | |
Shading Coil | Copper | Silver |
Disc-Holder | POM | |
Core Guide | POM (10.1 and 17.1 Watt only) |
Delivery
1. If the products we have in store, we will send it out ASAP after payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex, TNT will be normal ways, If you require use of a courier, we can do it.
4. Also we can send by your delivery acount if you want.
After-sale service
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
