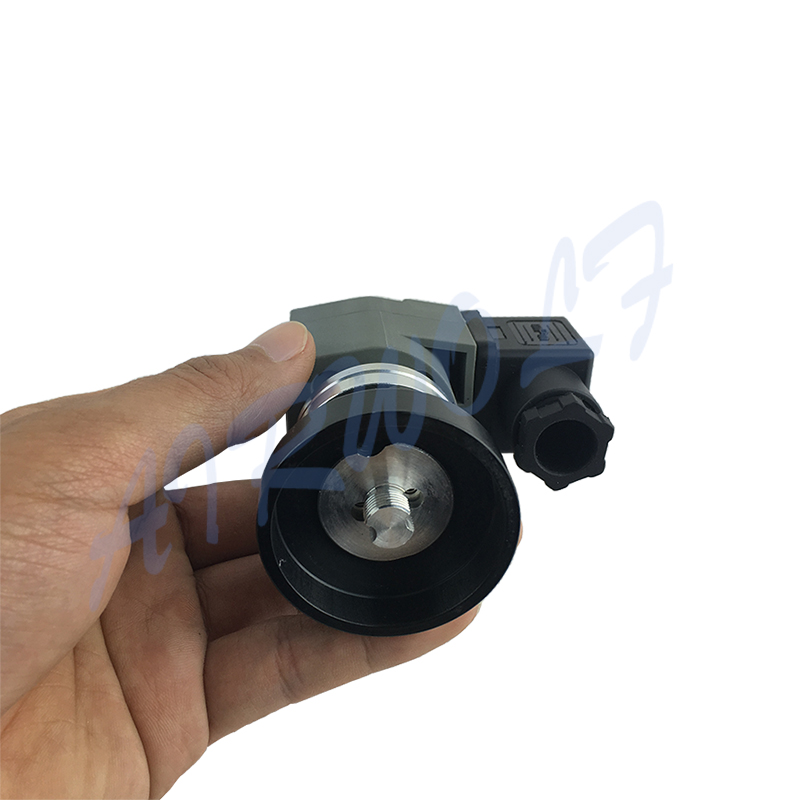

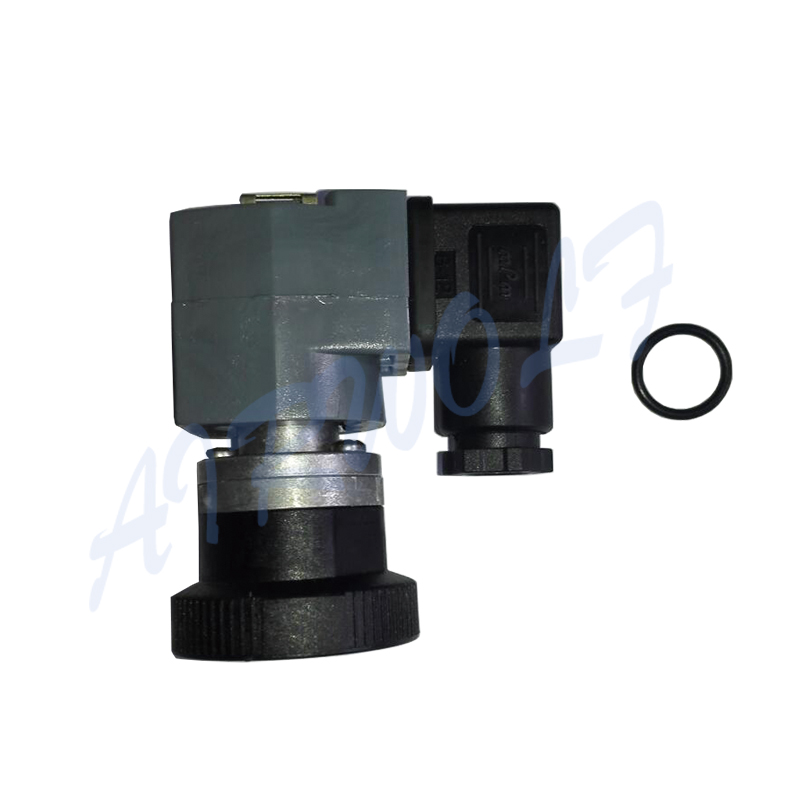

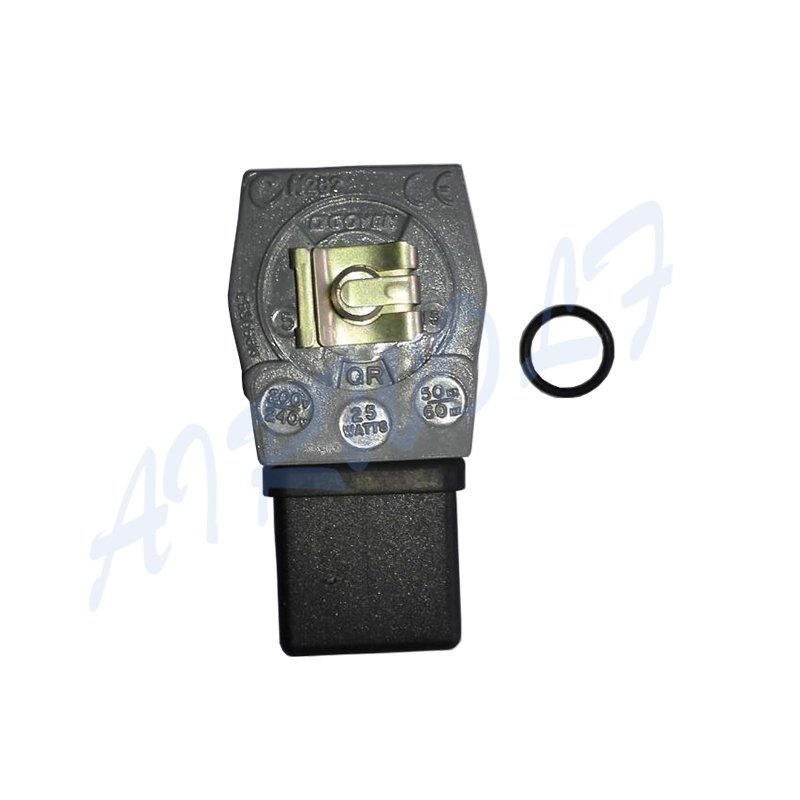

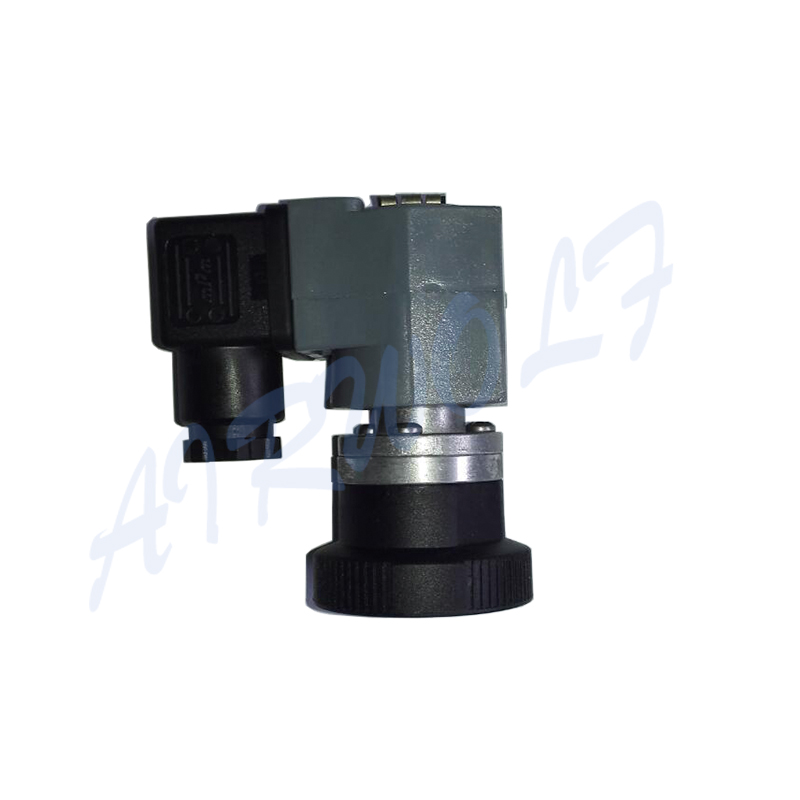

RCA3DS-300 are Goyen type 1/8 inch pilot valve. It's a pilot valve with integral silencer and dust shroud to mount directly to dust collector diaphragm valve.
◈ Body: AI 2011-T3
◈ Ferrule: 302 SS
◈ Armature: 430FR SS
◈ Encapsulation: PA-6
◈ Insulation: Class B/130°C
◈ Seals: Nitrile
• C-Tick
• EMC (89/336/CE)
◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.
◈Port: Ningbo/Shanghai
◈Delivery time: 1-3 work days
◈Ensure o-ring is in place on diaphragm valve cover. Gripping the shroud, hand tighten 3DS pilot valve onto cover of diaphragm valve. For reliable operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage. Solenoid is free to rotate on pilot valve. 3DS thread will suit 1/8 BSP T, 1/8 BSP P and 1/8 NPT ports. Replace pilot components within 1 million cycles (refer to Spare Parts).
| Type | Ordering code | Port size |
| GOYEN "T" | CA-15T | 1/2" |
| CA-20T | 3/4" | |
| CA-25T | 1" | |
| CA-35T | 1 1/2" | |
| CA-40T | 1 1/2" | |
| CA-50T | 2" | |
| CA-62T | 2 1/2" | |
| CA-76T | 3" | |
| GOYEN "DD" | CA-25DD | 1" |
| CA-45DD | 1 1/2" | |
| GOYEN "MM" | CA-25MM | 25mm |
| CA-40MM | 40mm | |
| CA-50MM | 50mm | |
| CA-62MM | 62mm | |
| CA-76MM | 76mm | |
| Goyen Remote solenoid valve | RCA3D2 | 1/8" |
| Goyen Remote solenoid valve | RCA3DS-300 | 1/8" |
| New Type Valve | CAC25T4 | 1" |
◈ Port size: 1/8"
◈ Color: Slivery
Recommended on time range: 50-500ms
Recommended time between pulses: 1 minute or greater
We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.
