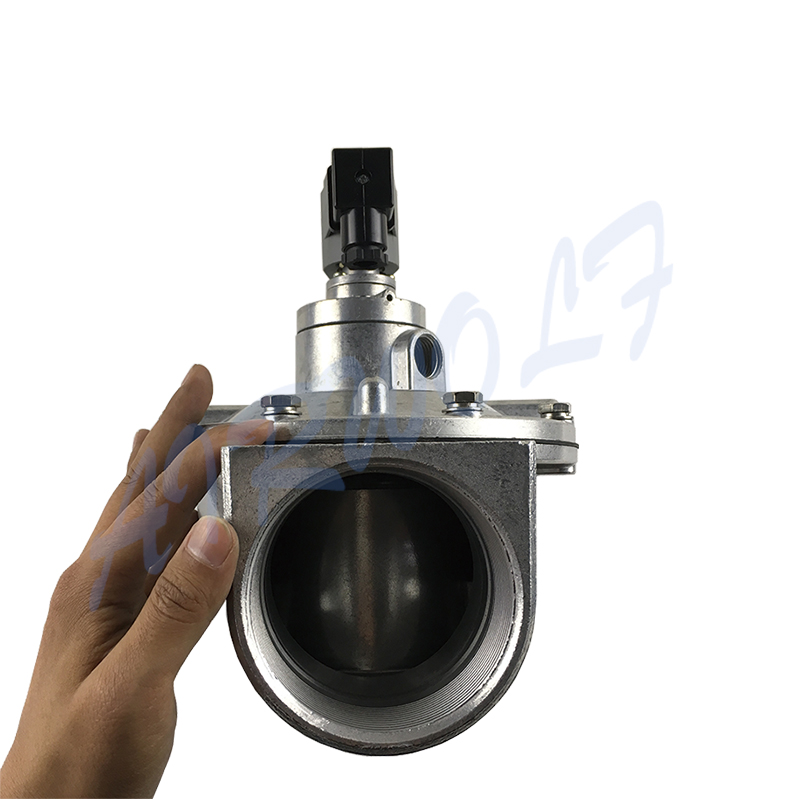

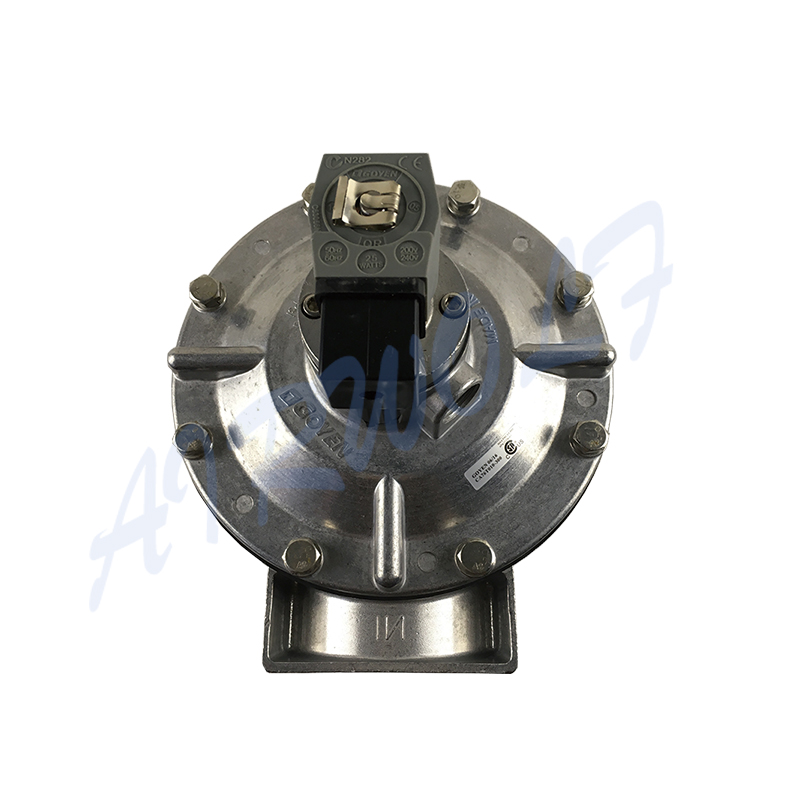

CA76T is a 3 Inch Goyen type pulse valve. Its repair kits have: K7600, K7601,K0380 and K0384. It's a normal closed double diaphragm dust removal pulse valve. Its body material is aluminum alloy. Its diaphragm have two material: Nitrile and Viton.
◈ Model: CA76T
◈ Pressure Range: 30(5) - 860(125) kPA(Psi)
◈ Nitrile Seal Temperature Range: -40 to 82 °C
◈ Port Size: 3"
◈ Pilot: Brass
◈ Armature: 430FR SS
◈ Prepare supply and blowtube pipes to suit valve specification. Avoid installing valves underneath the tank.
◈ Ensure tank and pipes are free from dirt, rust or other particulate.
◈ Ensure supply air is clean and dry.
◈ Mount valves to inlet pipes and blowtube to valves, ensuring no excess thread sealant can enter the valve itself.
◈ Make electrical connections to solenoid or connect RCA pilot port to pilot valve (RCA valves only).
◈ Apply moderate pressure to system and check for installation leaks.
◈ Fully pressurise system.
◈ Test fire and listen for proper actuation and crisp pulse noise.
◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.
◈Port: Ningbo/Shanghai
◈Delivery time: 1-3 work days
◈All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
◈If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
◈Weight
| Size | Integral Pilot: KG | Remote Pilot: KG |
| 20 | 0.6 | 0.38 |
| 25 | 0.73 | 0.53 |
| 35 | 1.04 | 0.83 |
| 45 | 1.5 | 1.28 |
| 50 | 2.89 | 2.68 |
| 62 | 3.31 | 3.09 |
| 76 | 4.77 | 4.56 |
◈ Port size: 3"
◈ Color: Slivery
Recommended on-time range: 50–500 ms
Recommended time between pulses: 1 minute or greater
Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
