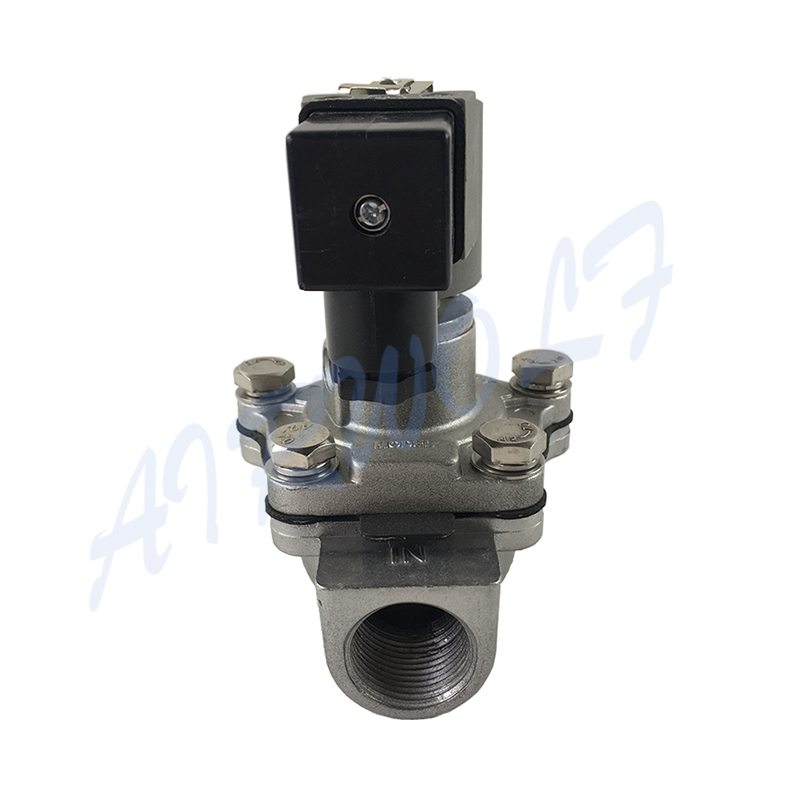

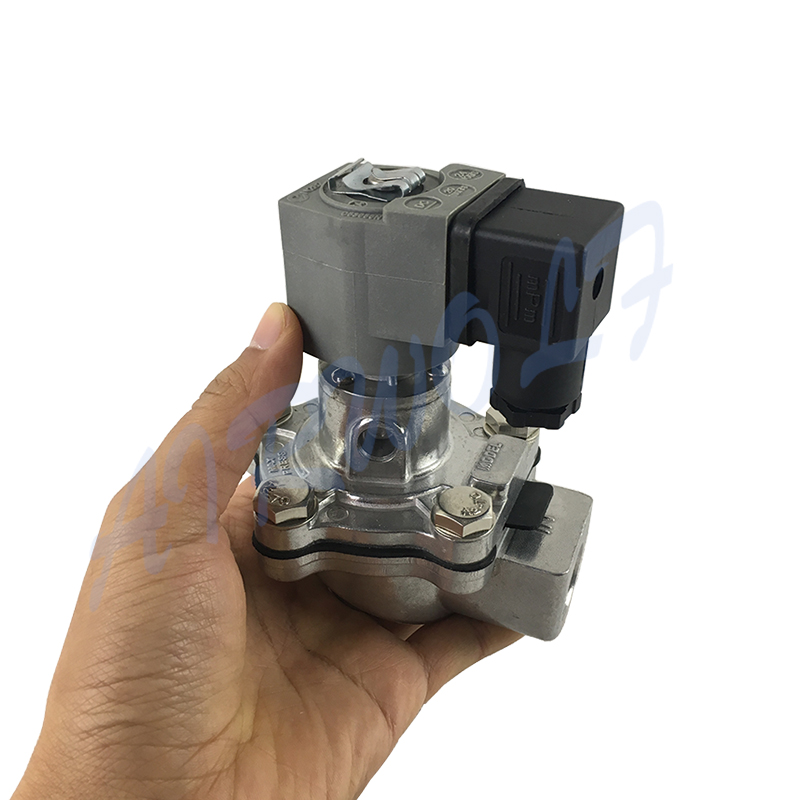

Goyen Type CA15T CA20T Aluminum Alloy Pulse Valve



Construction

◈Body: Aluminum

◈ Ferrule: 304 SS

◈ Armature: 430FR SS

◈ Seals: Nitrile or Viton.

◈Spring: 304 SS

◈ Screws: 302 SS

◈ Diaphragm Seat: Viton or Nitrile



part.1

Small resistance, good circulation, expanding the scope of use of gas pressure.



part.2

Super Long Life.

◈  Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled.

◈ Diaphragm and pilot inspection should be conducted annually.

◈Packaging Details: Plastic bags, boxes, cartons, and pallets. Meantime, we can pack the goods according to customers' special requirements.

◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.

◈By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

◈Port size: 1/2", 3/4"

◈ Color: Slivery

◈Pressure Range: 30(5)–860(125) kPa(psi)

◈Temperature Range: Nitrile Seals: -40°C~82°C, Viton Seals: -29°C~232°C

Order Code

Recommended on-time range: 50–500 ms

Recommended time between pulses: 1 minute or greater

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
