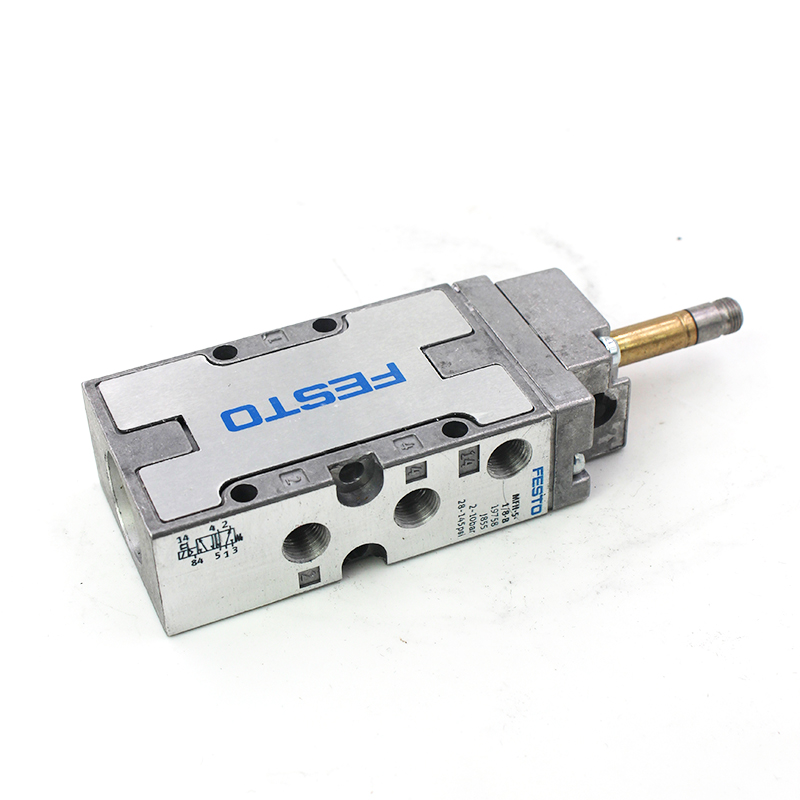

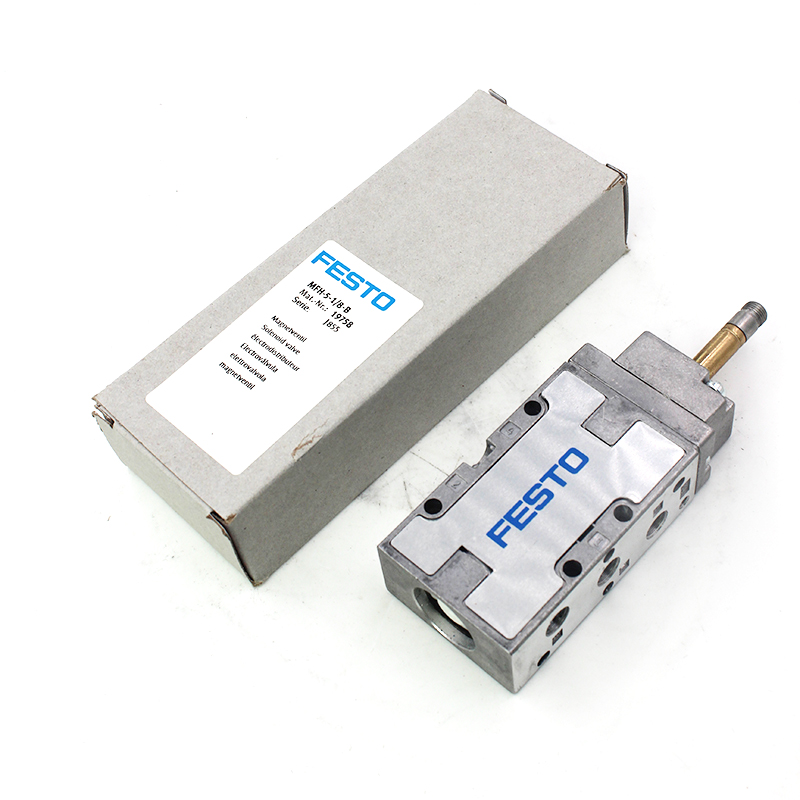

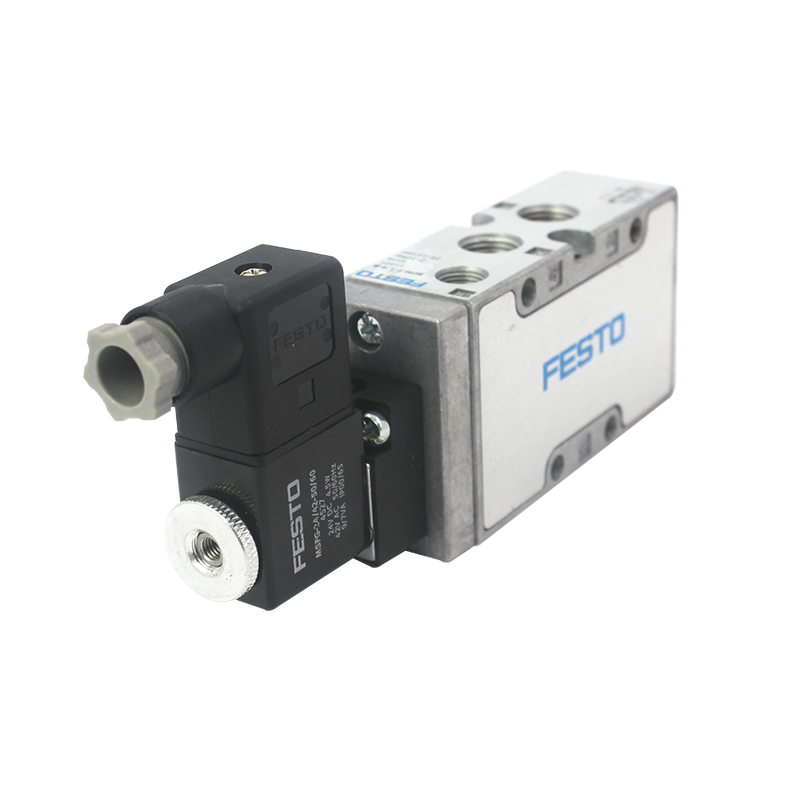

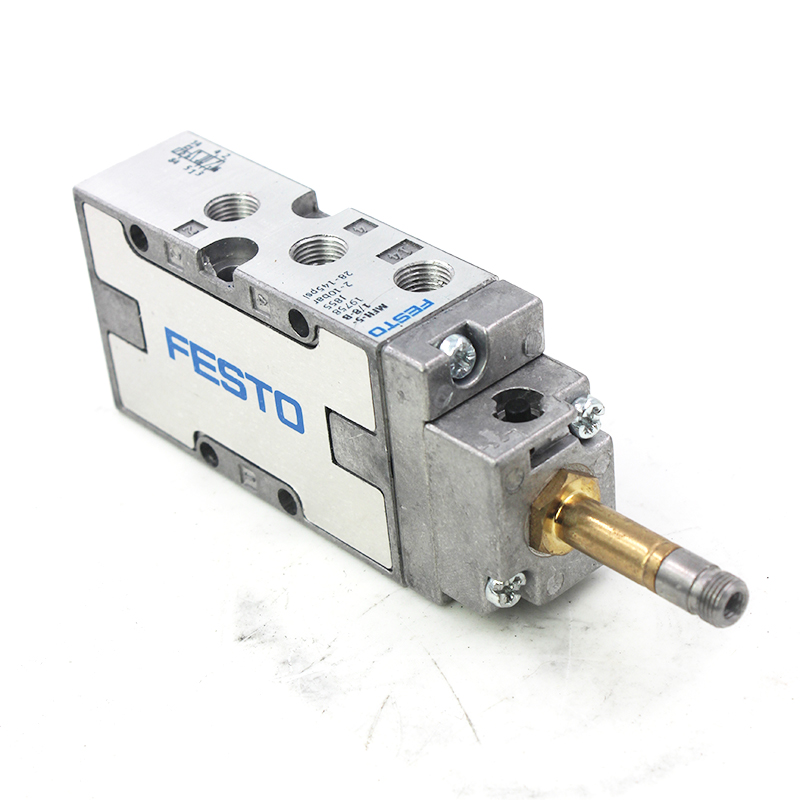

Festo MFH-5-1-8-B 19758 J855 MFH 5/2 way tiger valve 2-10 bar solenoid valve
| Model | MFH-5-1/8-B MFH-5-1/4-B |
| Type | 5/2 way |
| Effective section area | 22.5mm2(CV=1.32) |
| Port size | 1/8",1/4" |
| Filter precision | 40 micron filtered air |
| Operation | Internal piloted |
| Working pressure | 0.25-1.0MPa |
| Max.pressure | 1.2MPa |
| Temperature | 5~50 degrees centigrade |
| Voltage range | Plus or minus 10% |
| Power consumption | AC:5.5VA, DC:4.8W |
| Protection | F Class. IP65 |
| Wiring/Connector | Lead wire or DIN connector |
| Switching frequency | 5 cycles/sec |
| Response time | 0.05 sec |
| Standard voltage | DC12V, DC24V, AC24V, AC36V,AC110V, AC220V, AC380V |
◈ Operating pressure:0.15~0.8MPa(21~114psi)
◈ Max.frequency:3 cycle/sec
◈ Standard voltage:AC220,AC110V,,DC24V
◈ Protection:IP65
◈ Materials: Aluminium
◈ Suitalbe: Explosion proof environment
◈ Fluid:Air(to be filltered by 40um fillter element)
◈ Max. Pressure:1.0MPa (215psi)
◈ Temperature Range:-20 to 70°
◈ Valve Configurations:Connector;Coilvalve;Body
◈ End Connections:PT, NPT, G
Q: Where is your factory ? Can we visit your factory?
A:Our factory is located in Ningbo City, Zhejiang Province,China, 17kms away from Ningbo Airport. We sincerely welcome customers to visit our company and factory.
Q: Could you add our logo on your products?
A: Yes,if your quantity more than 50pcs. we could add your logo on the products.
Q: How long is your delivery time?
A: Generally it is 1-2 days if the goods are in stock. or it will be 3-5 weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample for free charge, but do not pay the cost of express freight.
Q: What is your payment term and payment way?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before shippment. Payment ways are : T/T, Western Union, Paypal, Alipay.
Q. What’s the shipping way?
A: For small packages, we will choose the door to door express, we cooperated with UPS,DHL,FEDEX,TNT more than 10 years,we gurantee the shipping cost that we offer to you will be the most favorable price among so many suppliers in China. We will send you the tracking number once we got it.
For big orders, By Air or By Sea through your shipping forwarder is acceptable, if you don't have forwarder in China, we will find the most cost-effective one for you.
All item Comes with Basic 3 Months Sellers Warranty, if item defective in 3 Months, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
Packing Details : Standard Carton,and other special packing according to customer's requirement
Delivery Details : Ready to ship,1-5 days after payment
