electrically pulse modulating valve aluminum alloy cheap price at sale

Detailed Description

It's a normal closed double diaphragm dust removal pulse valve. These valves, used for cleaning filter elements in air filtration systems, are specifically designed for flat surfaces like square header tanks and flanged tank. Like traditional model, with threaded and coupling connection, activating divided into two types:Electronic control type and Air control type.

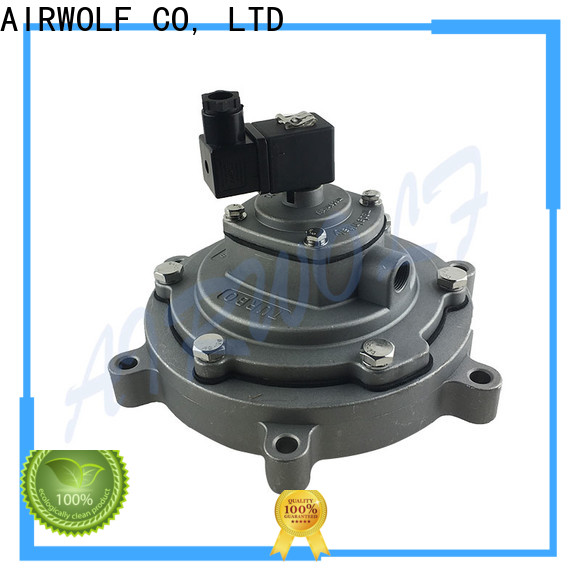

electrically pulse modulating valve aluminum alloy cheap price at sale-1

Structure

◈Coil+Connector:BH10...V/50-60Hz

◈Screws+Washer:VTE6x +VROS6

◈Pole assembly:GPC 10

◈Cover:TCOP 25

◈Cover remote operate:TCOP25FM

◈Screws+Washer:VTE10x25+VROS10

◈Spring:TMOL40

◈Main diaphragm:M75

◈Body:TCOR75FLQ - TCOR100FLQ

◈O-Ring:OR 177 17x6,99 - OR 100 17x5,33

Features

electrically pulse modulating valve aluminum alloy cheap price at sale-2

part.1

The pulse valve is controlled by a pilot valve such as electromagnetic or pneumatic, and can open and close the diaphragm valve of the high-pressure gas source to generate a pulse.

electrically pulse modulating valve aluminum alloy cheap price at sale-3

part.2

The pulse valve is the main component of the bag filter, which is sprayed more than 1 million times.

electrically pulse modulating valve aluminum alloy cheap price at sale-4

part.3

The pulse valve is a valve that relies on the airflow through the air resistance and the delay of the air volume to make the input long signal become a pulse signal.

electrically pulse modulating valve aluminum alloy cheap price at sale-5

part.4

Carton pack for easy transport and protection of the valve body.

Failure and repair

◈Spring damage, pulse valve spool on the spring is easy to damage, resulting in the appearance of the pulse valve to blow air into the nozzle for a long time, the treatment is to replace the spring.

◈Spool fouling, because the intake is not clean, resulting in fouling accumulation in the spool, resulting in the appearance of the nozzle is a long-term intake or get electricity after the pulse valve does not act, the way is to clean the spool.

◈The diaphragm is damaged, after long-term work, the diaphragm is prone to fatigue, oxidation, etc., resulting in the appearance of the pressure relief port long-term gas, pulse valve does not work, the treatment is to replace the diaphragm

Advantages:

◈Small resistance, good circulation, expanding the scope of use of gas pressure.

◈Super Long Life.
