air pressure cylinder | Pneumatic air cylinders

Product Information
Customer Reviews

Application Scope

AIRWOLF's pneumatic components can be used in multiple industries and fields.AIRWOLF has many years of industrial experience and great production capability. We are able to provide customers with quality and efficient one-stop solutions according to different needs of customers.

Product Comparison

custompneumaticcomponents is in line with the stringent quality standards. The price is more favorable than other products in the industry and the cost performance is relatively high.Compared with other products in the same category, custompneumaticcomponents has outstanding advantages which are mainly reflected in the following points.

Company Advantages
1. AIRWOLF double acting pneumatic cylinder has to undergo numerous stages of production. It includes three main stages: materials cutting, CNC machining, surface treatment, and drying.
2. air pressure cylinder is the best double acting pneumatic cylinder with peculiarities like pneumatic cylinder manufacturers .
3. air pressure cylinder has the merit of double acting pneumatic cylinder , which is used in pneumatic cylinder manufacturers .
4. AIRWOLF strives to create more added value for customers.

Detailed Description

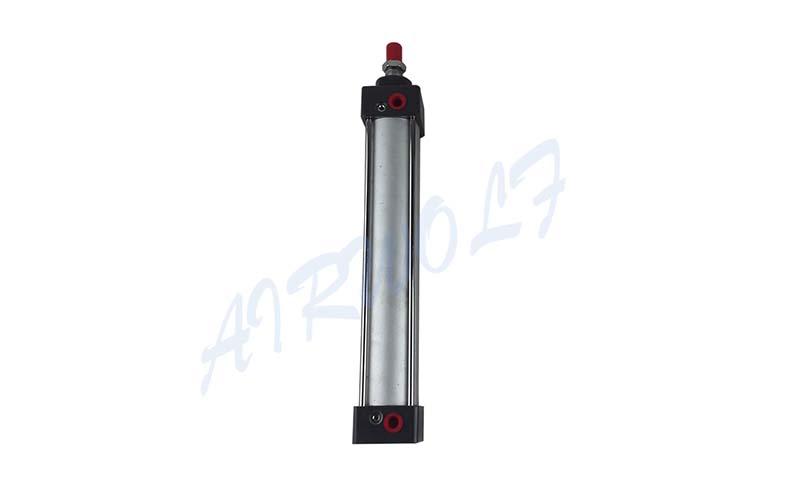

It's a SC seires standard air cylinder. SC standard cylinders are suitable for use in various industries, especially in dust removal devices. This kind of cylinder is usually equipped with electromagnetic pulse valves for use together. A full range of accessory items are available including cylinder tube, piston, piston rod, sealing parts and mounting nut.

Materials

◈ Rod nut: Carbon steel

◈ Piston rod: Carbon steel with 20 μm chrome plated

◈ Front cover packing: TPU

◈Bushing: Wear resistant material

◈Front cover: Aluminum alloy

◈Cushing O-ring: NBR

◈ Cushion gasket: PU

◈ Barrel: Aluminum alloy

◈ Piston: Aluminum alloy

◈Piston rod O-ring: NBR

◈Piston seal: NBR

◈Magnet: Plastic

◈ Wear ring: Wear resistant material

◈Bolt: Carbon steel

◈Back cover: Aluminum alloy

◈Tie-rod: Carbon steel

◈Tie-rod nut: Carbon steel

Feature

part.1

Standard cylinder manufactured by our enterprise.

part.2

The seal of piston adopts heterogeneous two way seal structure. lt's dimension is tight and it has the function of grease reservation.

part.3

It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.

part.4

Compared with ISO1 5552 standard cylinder, SC series cylinder with the same bore size is shorter.

part.5

The buffer adjustment of cylinder is smooth and steady.

part.6

Cylinders and mounting accessories with several specifications are optional.

part.7

The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150.

Installation and application

◈ When load changes in the work, the cylinder with abundant output capacity shall be selected.

◈Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion.

◈Necessary protection measure shall be taken in the environment with higher humidity, much dust or water drops, oil dust and welding dregs.

◈ Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder.

◈The medium used by cylinder shall be filtered to 40μm or below.

◈Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.

◈ The cylinder shall avoid the influence of side load in operation to maintain the normal work of cylinder and extend the service life.

◈If the cylinder is dismantled and stored for a long time, please conduct anti-rust treatment to the surface. Anti-dust caps shall be added in air inlet and outlet ports.

Packaging & Delivery

◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.

◈ Port: Ningbo/Shanghai

◈ Supply Ability: 1000 pieces per 12 working days

Typical Applications

◈ Printing (Tension Control)

◈Semiconductor (spot welding machine, chip grinding)

◈Automation Control

◈ Robot

◈Opening and closing doors of automobiles, metros and CNC machine tools

◈Mobile Positioning of Manipulator Coordinates

Specifications

◈ Bore size: 40 mm

◈Acting type: Double acting

◈ Fluid: Air

◈ Operating pressure: 0.15~1.0 MPa

◈Proof pressure: 1.5 MPa

◈ Temperature: -20~70℃

◈ Cushion type: Variable cushion

Company Features
1. AIRWOLF CO, LTD has many technical talents for air pressure cylinder.
2. We have achieved numerous honors and titles since our establishment. Over the years, we have been appraised as a 'AAA' level enterprise of keeping the contract and respecting credit and the most reliable enterprise.
3. AIRWOLF CO, LTD tries to structure double acting pneumatic cylinder as its service ideology. Welcome to visit our factory! pneumatic cylinder manufacturers is the core concept of AIRWOLF CO, LTD's pursuit. Welcome to visit our factory!
