control pulse jet valve design norgren series custom dust blowout

Product Information of control pulse jet valve design norgren series custom dust blowout

Company Advantages
1. AIRWOLF pulse jet valve design is produced by the following required testings. It has passed the mechanical testing, chemical flammability testing and met safety requirements for furniture. Airwolf Automation has developed a large customer base, covering over 230 countries
2. AIRWOLF CO, LTD has established unsurpassed customer partnerships with many famous brands in domestic market. Airwolf Automation has developed a wide distribution network in over 13 countries
3. pulse jet valve design has the advantages of pneumatic pulse valve , and reduced overall cost. Airwolf Automation has an efficient service team, responding to customer's questions within 24h
4. All defects of the product have been accurately detected and then removed, guaranteeing consistent quantity. Airwolf Automation offers a comprehensive portfolio of pneumatic components
5. Especially designed for pneumatic pulse valve , pulse jet valve design is also comfortable at the same time. With nearly 15 years of experience, Airwolf Automation offers the highest level of technical support

Detailed Description

FEATURES

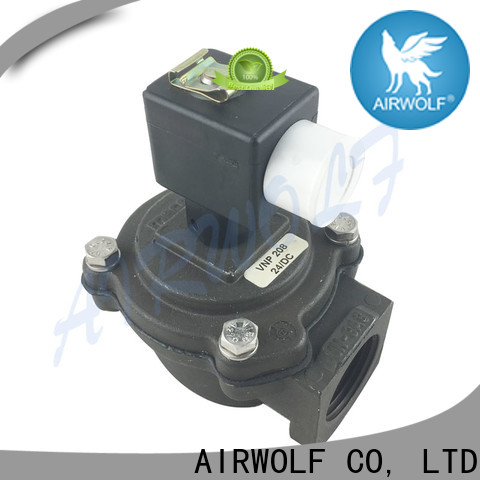

The 200 SERIES is a range of diaphragm valves suitable for dust collector applications, in particular for reverse pulse-jet filter cleaning of filter bags, cartridges, envelope filters, ceramic filters and sintered metal fibre filters. The 200 Series valve has the inlet port at 90° to the outlet port. The 200 Series range comprises 6 models, from ¾” to 2½”, all with threaded female Gas connections. The 1½” model is available in single and double diaphragm versions, while the 2” and 2½” are all double diaphragm valves. The special design assures an extremely fast opening time, high flow rates and easy installation.

control pulse jet valve design norgren series custom dust blowout-1

CONSTRUCTION

◈Base-plate: Anodised aluminium

◈ FLUIDS:Filtered air and oil free

◈ PRESSURE RANGE: From 0.5 to 7.5 bar

◈ COIL INSULATION : Class H

◈ ELECTRICAL PROTECTION :IP65 EN60529

◈ DIAPHRAGM :NBR

◈ DIAPHRAGM SPRING: Stainless steel

◈Electrical connection:Spades according to DIN 46244

control pulse jet valve design norgren series custom dust blowout-2

part.1

Bolts and screws are in stainless steel. The 200 Series is
available in the following versions:
• VNP, with integrated solenoid pilot
• VEM, with remote pneumatic connection.

control pulse jet valve design norgren series custom dust blowout-3

part.2

DIAPHRAGM Standard
Nitrile: −20°C/+80°C
Optional
Viton: −30°C/+200°C

control pulse jet valve design norgren series custom dust blowout-4

part.3

AMBIENT TEMPERATURE −20°C/+60°C

control pulse jet valve design norgren series custom dust blowout-5

part.4

VOLTAGE RANGE 12 V DC (supply +10% max.) 18 W
24 V DC (supply +10% max.) 18 W
48 V DC (supply +10% max.) 18 W
110 V DC (supply +10% max.) 18 W
24 V 50/60 Hz (supply +10% max.) 38/31 VA
48 V 50/60 Hz (supply +10% max.) 41/32 VA
115 V 50/60 Hz (supply +10% max.) 63/53 VA
220/240 V 50/60 Hz (supply +10% max.) 46/37 VA

control pulse jet valve design norgren series custom dust blowout-6

part.5

Upon request: Integral pilot valves with ATEX Certification: • ATEX II 3 D (94/9/CE); for the above approved
model the correct code to use is VEM+PV 24V/DCX
(solenoid coil is 24 V-DC/18 W and DIN connector in conformity with the ATEX Directive 94/9/CE) (PLG11-ATEX).
Remote pilot valves meet the requirements of: • ATEX
II 2 GD when mounted with PXA Pilot or CXD Enclosure
(94/9/CE).

◈Voltages:The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.

Packaging

control pulse jet valve design norgren series custom dust blowout-7

Package

◈Packaging Details:plastic bags,boxes, carton, pallet or as customer advice

◈Payment Terms:T/T, Western Union,Paypal

◈Supply Ability:1000 pieces per 12 working days.

Shipping

control pulse jet valve design norgren series custom dust blowout-8

◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.

◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

Technical data

control pulse jet valve design norgren series custom dust blowout-9

◈Weight:0.5kg

Company Features
1. Over the years, AIRWOLF CO, LTD has been providing customers with pneumatic pulse valve and unparalleled customer service, making us one of the most effective suppliers in the industry. In order to become a more professional pulse jet valve design supplier, AIRWOLF uses the most advanced technology and machines for production.
2. valve pulse jet engine is highly qualified in the industry.
3. AIRWOLF constantly upgrades the valved pulse jet engine production technology. AIRWOLF will continue to provide superior pulse valve function . Get info!
