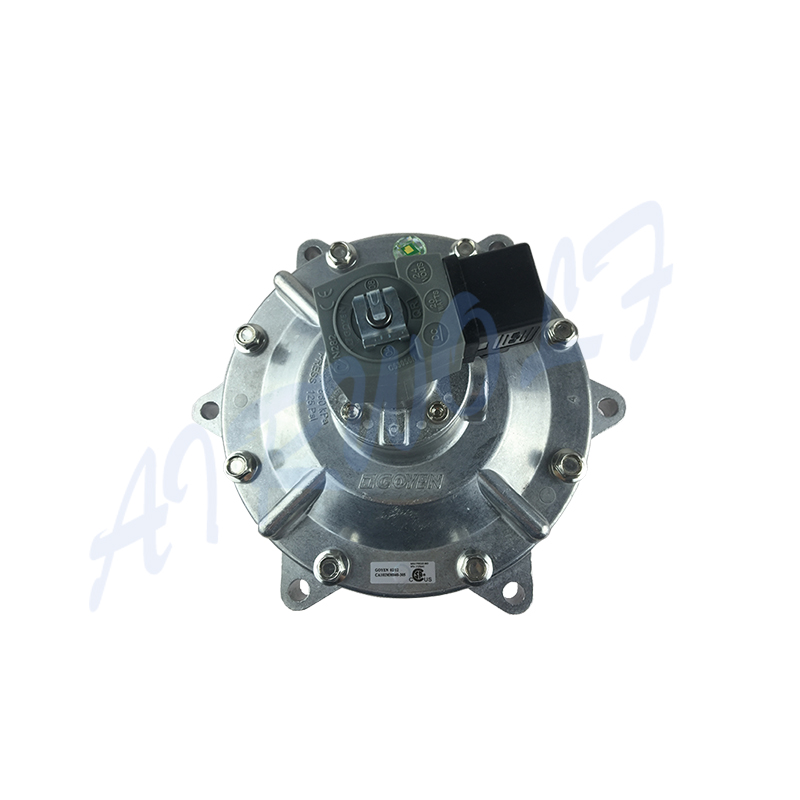

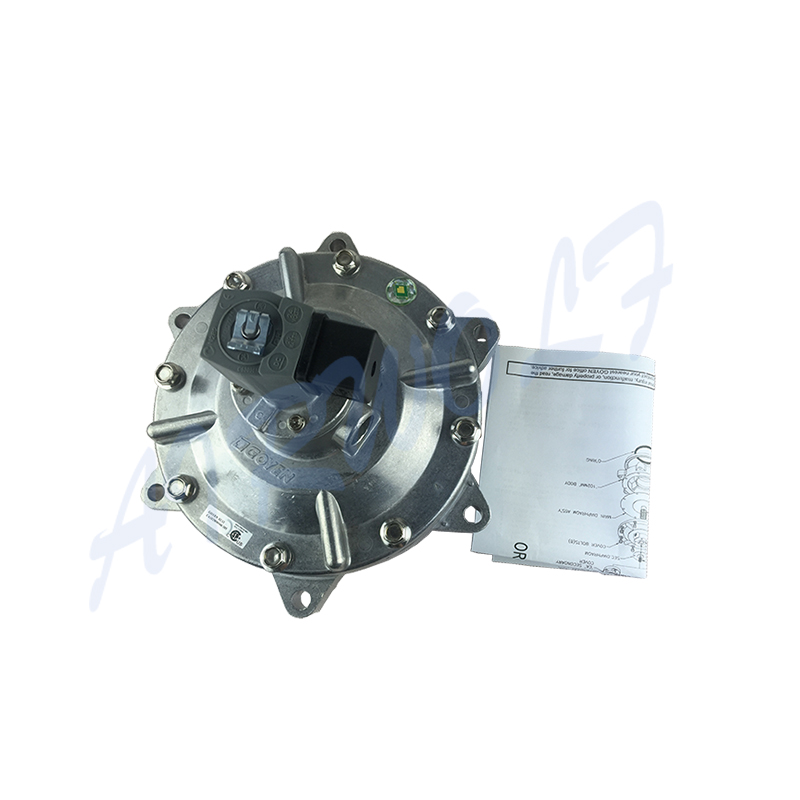

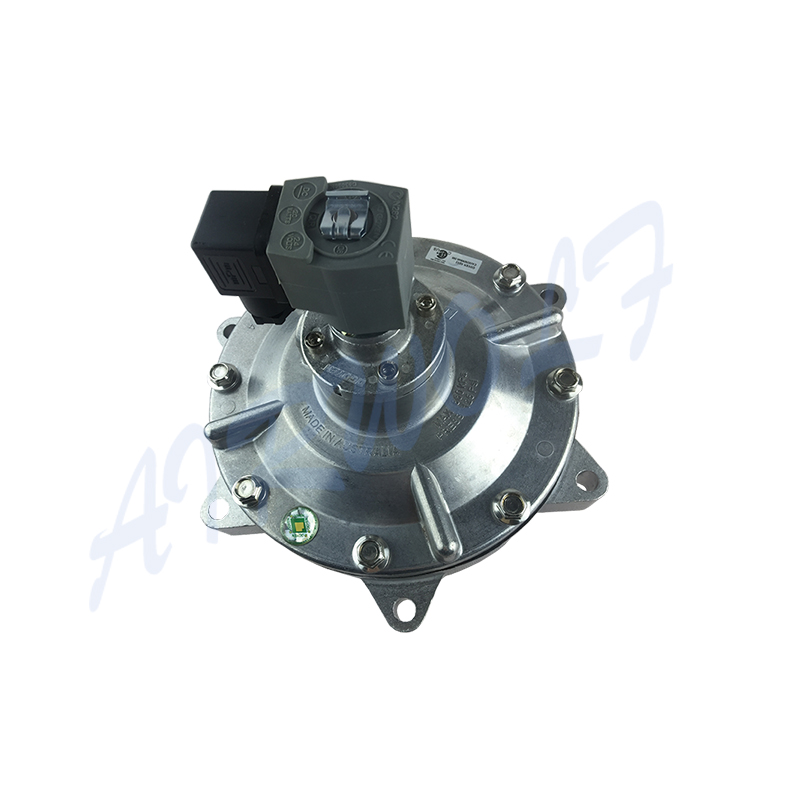

CA102MM K10200 4 Inch Goyen Type Pulse Jet Valve for Dedusting Use



Construction

◈ Model: CA102MM

◈ Body and Dresser Nuts: Diecast Aluminium

◈ Pilot repair kit: K0380 K0384

◈ Outlet Pipe: Schedule 40 wrought steel zinc passivated

◈ Spring: 304 SS

◈ Diaphragm and Seals: Nitrile or Viton



part.1

The electromagnetic pilot has large suction force and is sensitive and reliable in action.



part.2

All other parts of the same type and specification can be used and exchanged.

◈  Very high performance diaphragm valve designed to be mounted directly into the compressed air manifold. 1" and 1.5" models are supplied with outlet pipes to length specified, 3" model is supplied without outlet pipes.

◈Packaging Details: Standard Carton box,and other special packing according to customer's requirement.

◈Port: Ningbo/Shanghai

◈Delivery time: 1-3 work days

◈Spring damage. The springs on the pilot head of the pulse valve are easily damaged, which results in the long-term bleeding of the pulse valve to the nozzle.
   Solution: Replace the spring.

◈Damage of rubber pad. After using for a long time, the rubber pad on the pilot head of the pulse valve is easily damaged, resulting in the long-term bleeding of the pulse valve to the nozzle.
   Solution: Replace the rubber pad

◈Pilot dirt. Because the air intake is not clean, the fouling of the pilot is accumulated, resulting in the long-term intake of the nozzle or the pulse valve doesn't work after electrification.
   Solution: Clean the pilot.

◈Damage of diaphragm. After long-term operation, the diaphragm is easy to oxidize, resulting in leakage of the pressure relief port, and the pulse valve doesn't work.
   Solution: Change diaphragm.

◈ Port size: 4"

◈ Color: Slivery

Before conducting any maintenance activity on the system ensure that components are fully isolated from pressure and power supplies. Pressure and power should not be reapplied until the valve has been fully assembled. Diaphragm and pilot inspection should be conducted annually.

Dust collector applications, in particular for reverse pulse jet filter cleaning and its variations, including bag filters, cartridge filters and envelope filters, ceramic filters and sintered metal fibre filters.
