Autel Type Diaphragm valve repair kit 1 1/2 inch PTFE AE1440B White



Structure

◈ A Optional Fitting: Nickeled Brass

◈1 Screw M6: SS

◈4 Diaphragm 3/4":TPE

◈8a STD Diaphragm 1"1/2:TPE

◈8b HT Diaphragm 1" 1/2 Kit:VITON+PTFE



part.1

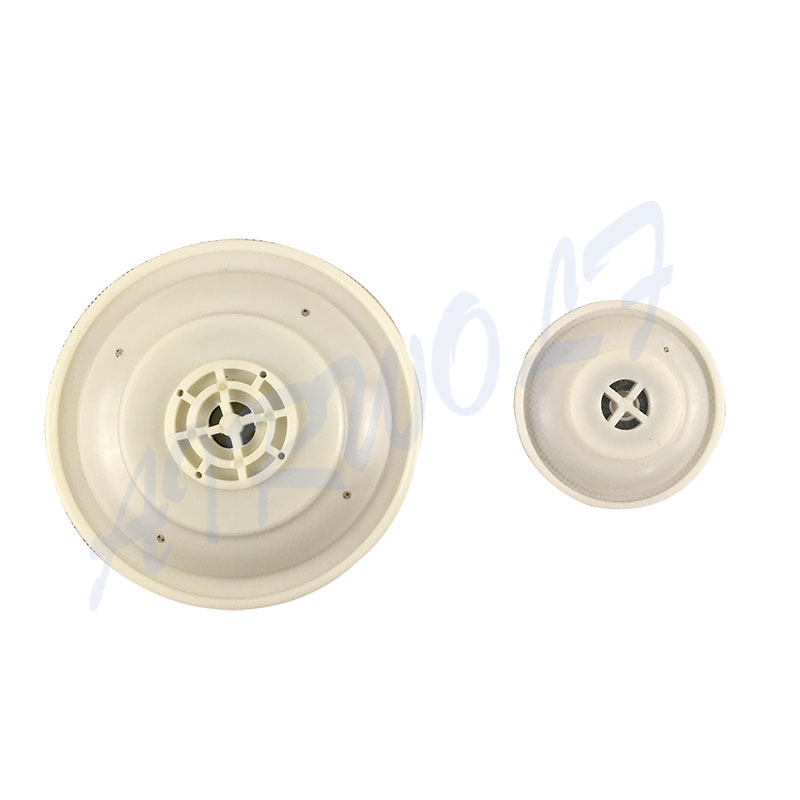

The 1-1/2-inch diaphragm consists of a 3/4-inch small diaphragm and a 1-1/2-inch diaphragm respectively.



part.2

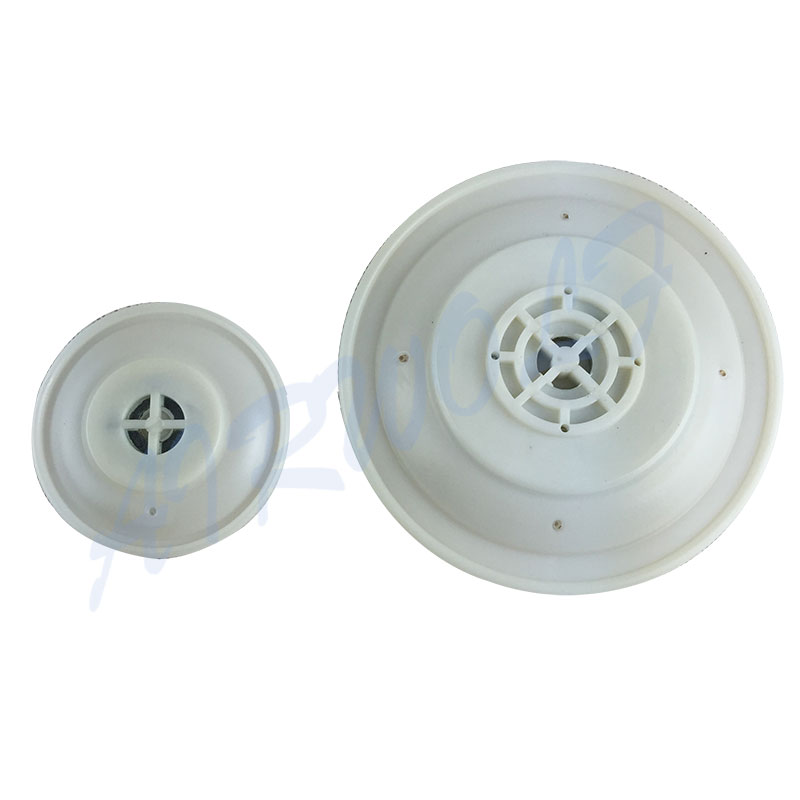

This repair kit has a large air outlet in the middle, so air can flow through it easily.



part.3

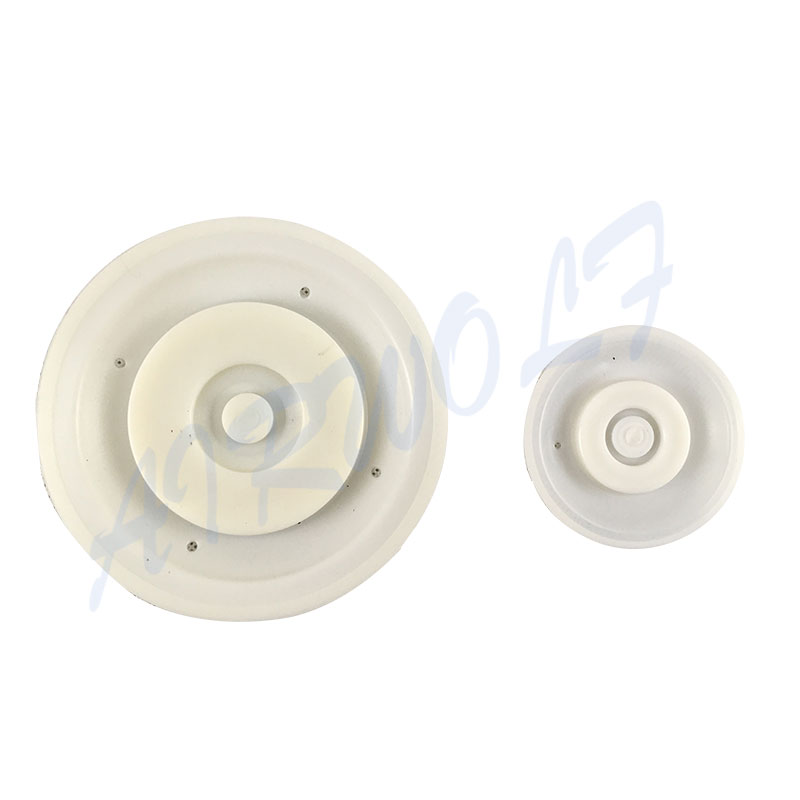

Autel 1-1/2" DN40 membranes has unique geometric diaphragm design , high speed from multiple diaphragm to reach the highest peak in an instant.



part.4

Material: TPE or PTEF.Its lifespan is about 1 million cycles.



◈The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation.

◈The high flow, angle type bodies in combination with the special main diaphragm assemblies give the unique operating features required for dust collector service applications.

◈The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions.

◈The design with integral compression fittings will facilitate installation because there is no need for threaded piping.

Quality Standards

◈The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.
