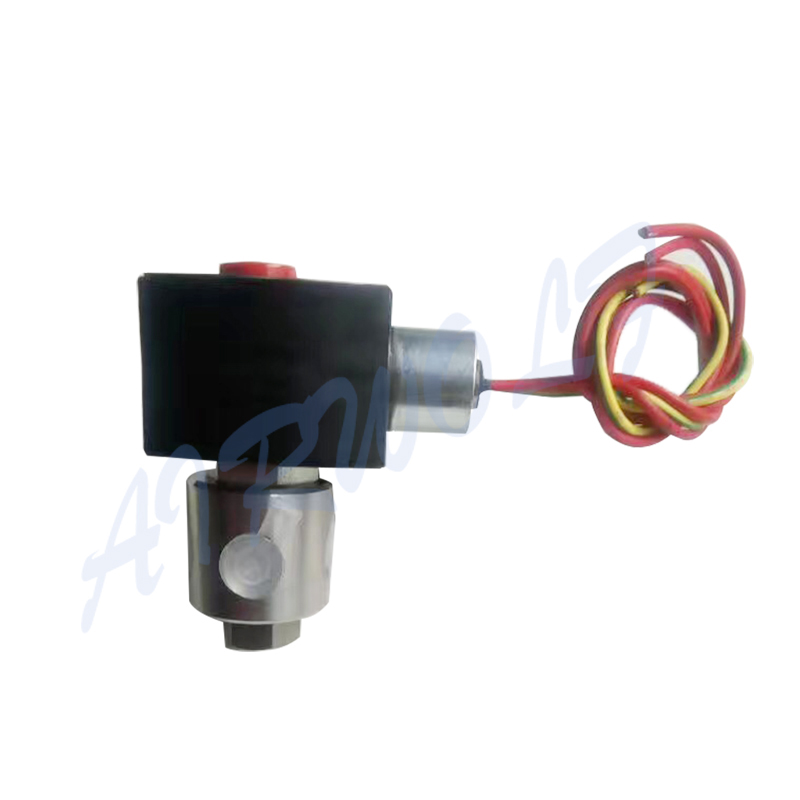

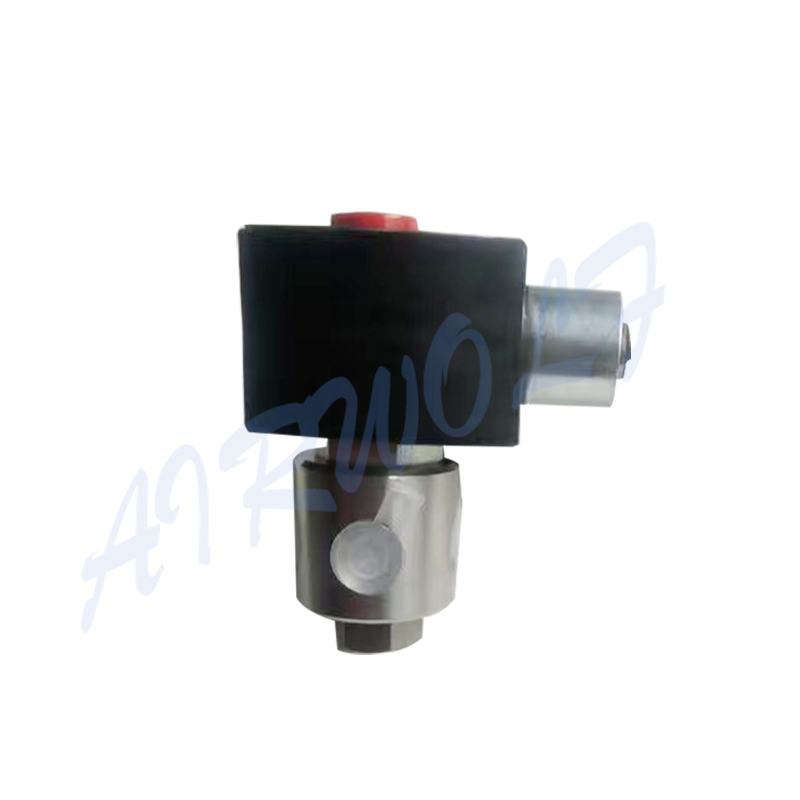

◈ Model: EF8320G202
◈ Type: 3/2 way
◈ Nominal Ambient Temp. Ranges:
AC: -40°F to 125°F (-40°C to 52°C)
DC: -40°F to 104°F (-40°C to 40°C)
◈ Standard Voltages: 24, 120, 240, 480 volts AC, 60 Hz (or 110, 220 volts AC, 50 Hz). 6, 12, 24, 120, 240 volts DC. Must be specified when ordering. Other voltages are available when required.
No Minimum Operating Pressure Differential required
Specification
| Valve Parts in Contact with Fluids | ||
| Body | Brass | 303 Stainless Steel |
| Seals and Disc | NBR | |
| Core Tube | 305 Stainless Steel | |
| Core and Plugnut | 430F Stainless Steel | |
| Core Springs | 302 Stainless Steel | |
| Shading Coil | Copper | Silver |
| Disc-Holder | POM | |
| Core Guide | POM (10.1 and 17.1 Watt only) | |
