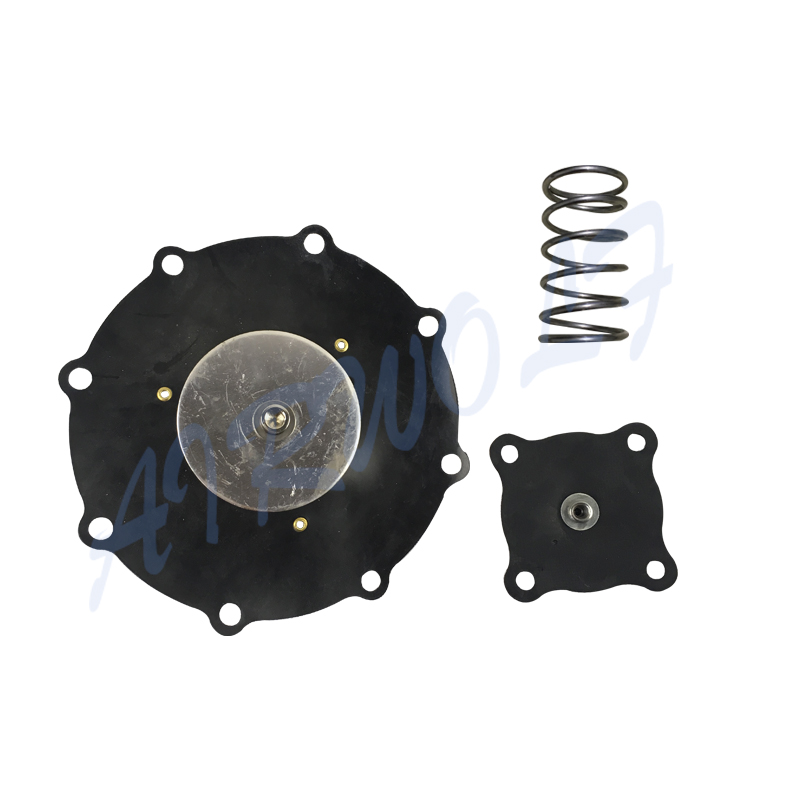

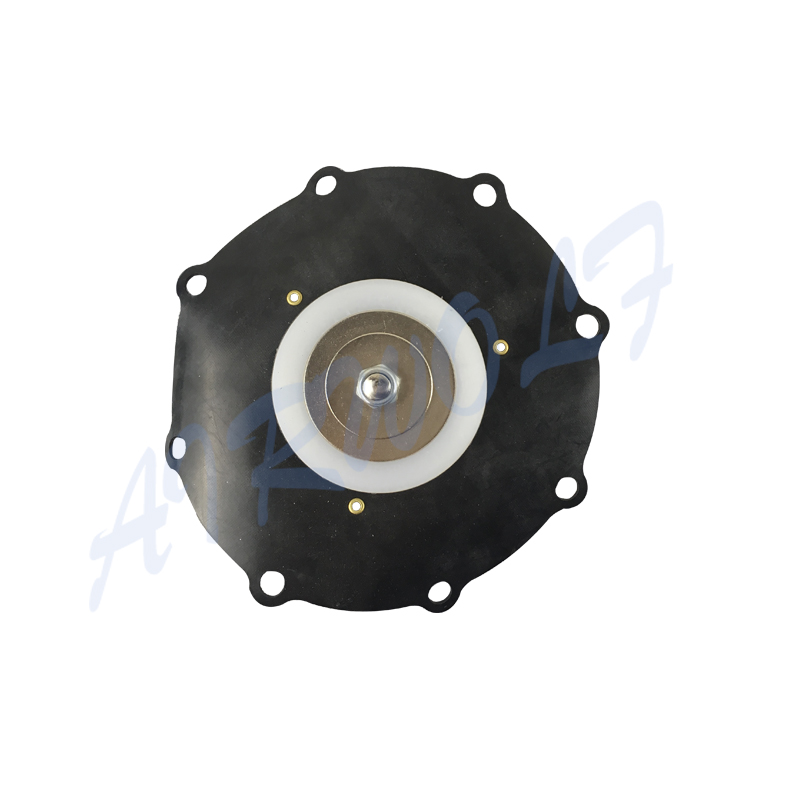

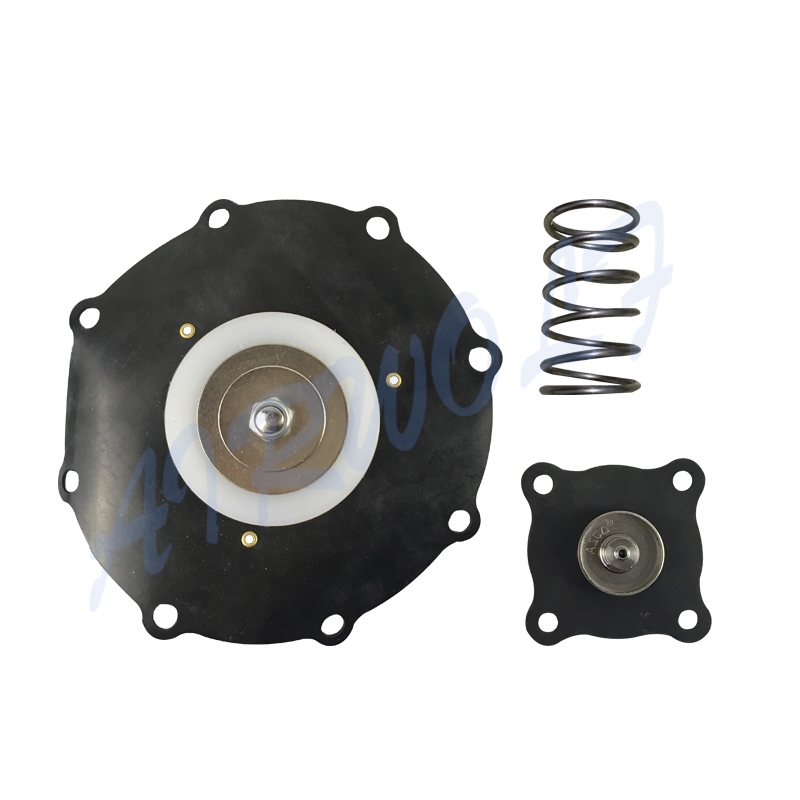

Diaphragm repair kit C113928 was suitabled for the pulse valve of ASCO series, SCXE353.060. The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions
◈Model: C113928
◈Differential pressure (PS): 0,35 - 8,5 bar [1 bar = 100kPa]
◈Ambient temperature range: -20 to +75 ℃ or 180℃
◈Material: Buna or Viton
◈Spanlife: 2 years or 1.5 million
The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted on the same basic valve.
Advantages
1. Good air tightness
2. Aging resistance
3. Long service life
4. Strong oil resistance
5. High temperature resistance
| Ordering Code | Fitted Valve Code | Valve port size | Material |
| C113443 | G353A041,G353042, | 3/4", 1" | TPU / NBR |
| C113444 | SCG353A043, SCG353A044 | 3/4", 1" | TPU / NBR |
| C113825 | G353A045 | 1 1/2" | NBR /BUNA |
| C113826 | G353A046 | 1 1/2" | NBR /BUNA |
| C113827 | SCG353A047 | 1 1/2" | NBR /BUNA |
| C113685 C113686 | SCG353A050,SCG353A051,G353A048,G353A049 | 2" , 2 1/2" | NBR /BUNA |
| C113928 | SCEX353.060 | 3" | NBR /BUNA |
