ASCO Type C113685 C113686 SCG353A050 SCG353A051 Diaphragm Repair Kits

Minimum Order Quantity: 1 piece

Price: Negotiation

Packaging Details: Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement

Delivery Time: within 1-10 working days after payment

Payment Terms: T/T , Western Union，Paypal

Model: C113685 C113686

MOQ: 1

Payment: T/T, Western Union

Place of Origin: Ningbo, China

Brand: Airwolf

Price: Get Latest Price

Inquire Online

Get the latest price

Quantity Needed：

Pieces

E-mail：

Product Information

Material: Nitrile, Viton

Certification: CE

Availability: OEM

Delivery Time: 1-3 work days

Start Port: Ningbo/Shanghai

Supply Ability: 10000 PCS/Week

Detailed Description

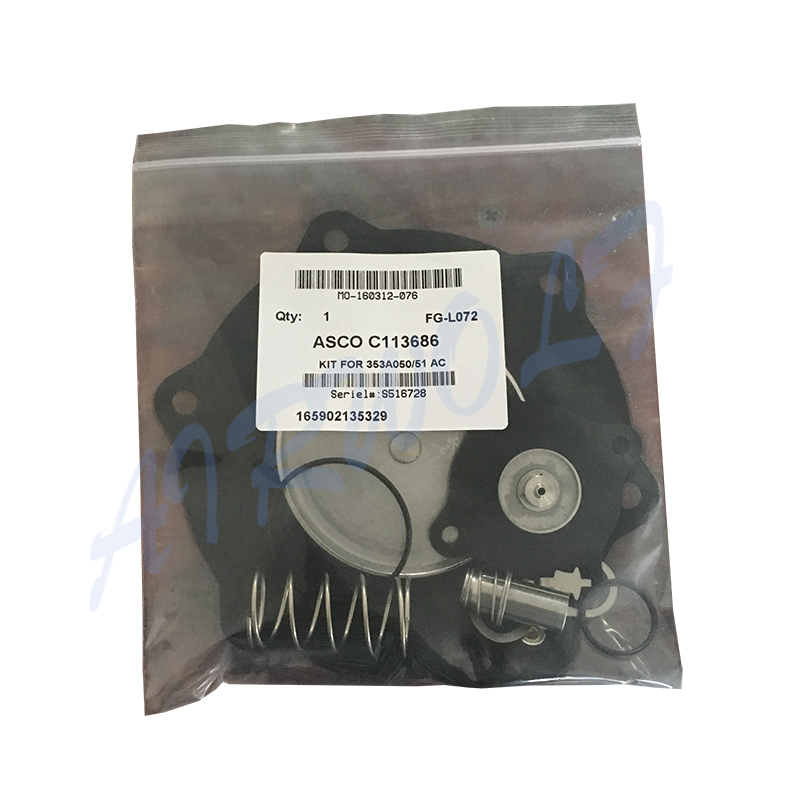

C113685 and C113686 are diaphragm repair kits for ASCO 2 Inch and 2-1/2 Inch pulse valve. Like G353A050 and G353A051. Have two material to chose: Viton and Nitrile.

Specification

◈Model: C113685, C113686

◈Color: Black

◈Working pressure: 0.05-1.0 Mpa

◈Working Temperature: -20ºC- +82 ºC

◈Cover: SS304

Feature

part.1

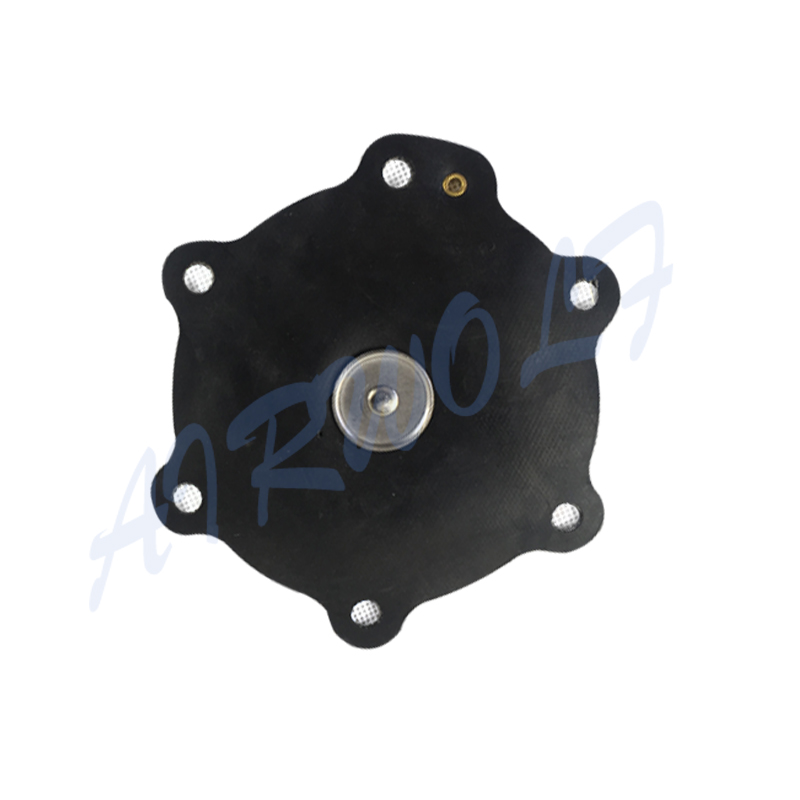

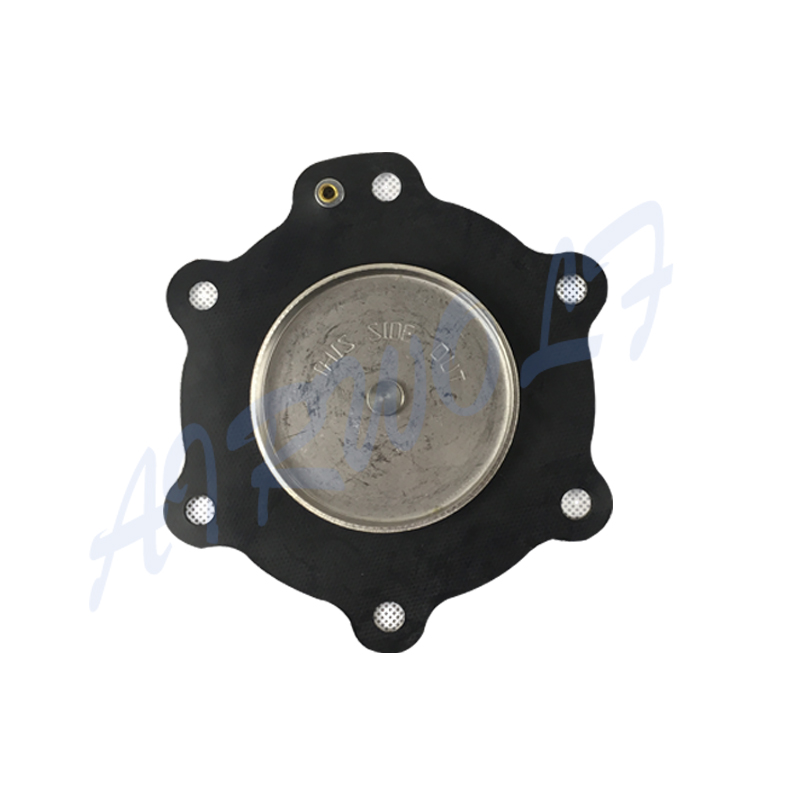

With six 8.4mm holes and a 4mm air hole.

part.2

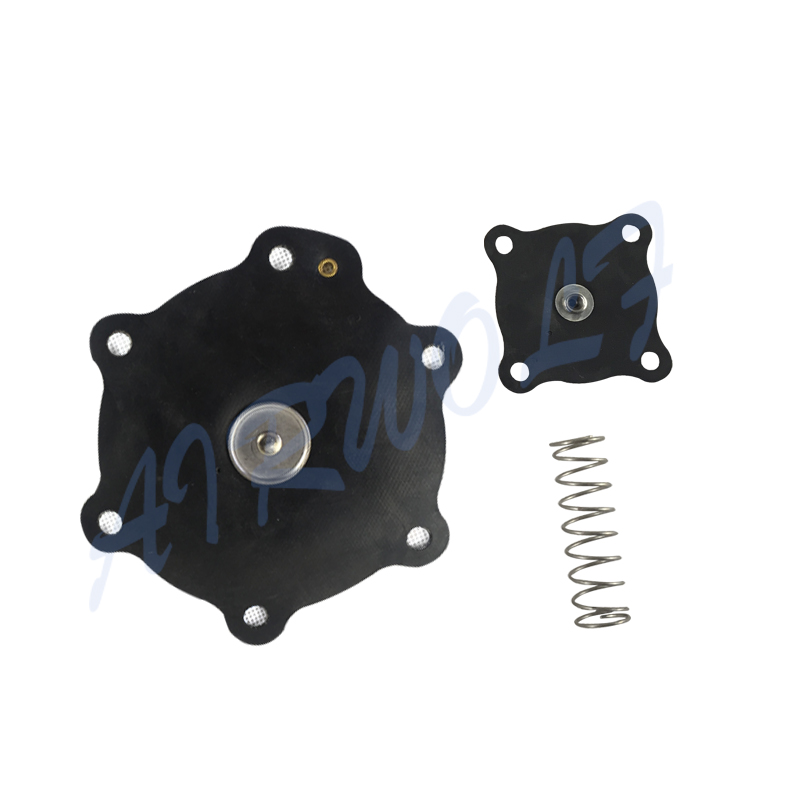

Materials
Diaphragm: Nitrile
Spring: Stainless steel

part.3

Lifespan:1 million cycles

part.4

Packing in high quality transparent sealed bags. It can be customized according to your requirements.

Advantages
1. Good air tightness
2. Aging resistance
3. Long service life
4. Strong oil resistance
5. High temperature resistance

Ordering Code	Fitted Valve Code	Valve port size	Material
C113443	G353A041,G353042,	3/4", 1"	TPU / NBR
C113444	SCG353A043, SCG353A044	3/4", 1"	TPU / NBR
C113825	G353A045	1 1/2"	NBR /BUNA
C113826	G353A046	1 1/2"	NBR /BUNA
C113827	SCG353A047	1 1/2"	NBR /BUNA
C113685 C113686	SCG353A050,SCG353A051,G353A048,G353A049	2" , 2 1/2"	NBR /BUNA
C113928	SCEX353.060	3"	NBR /BUNA
