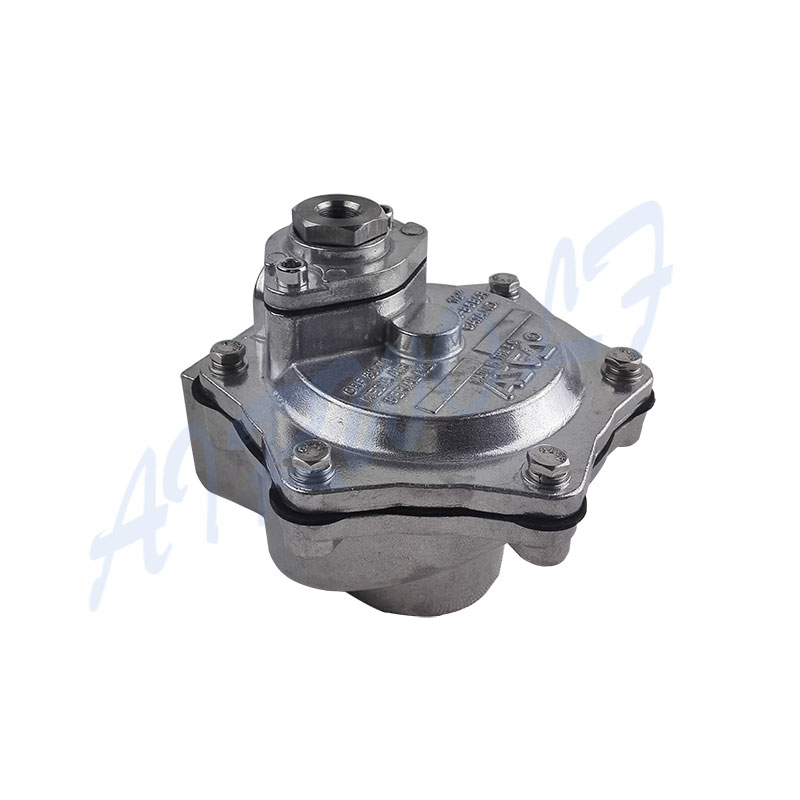

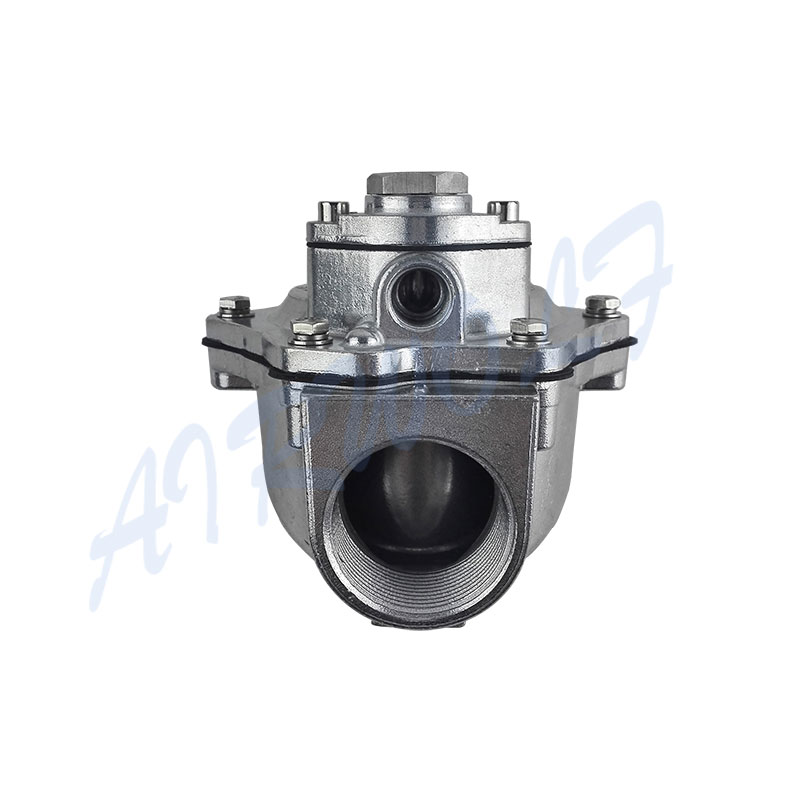

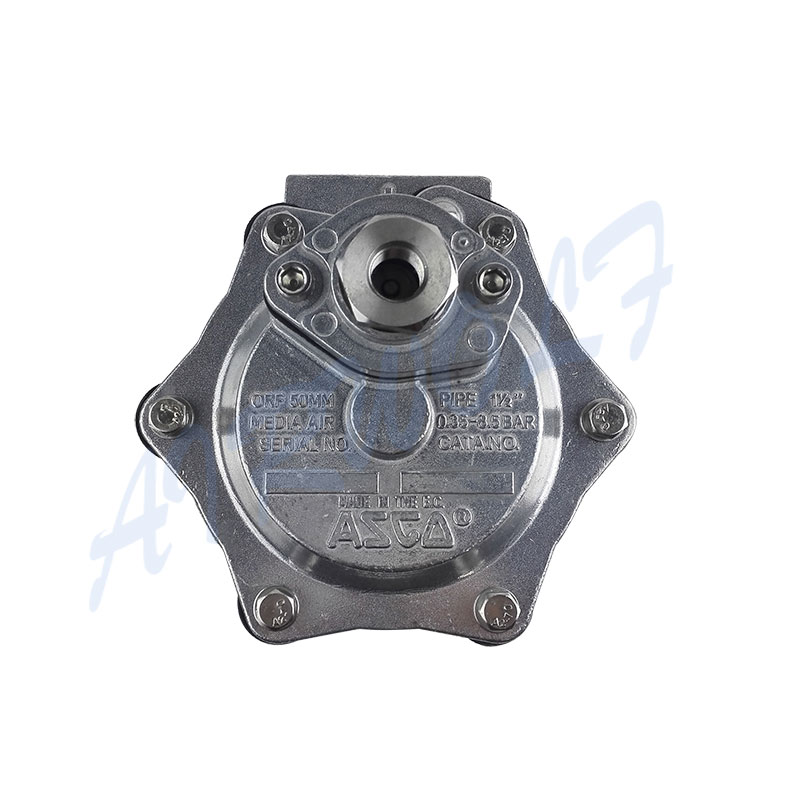

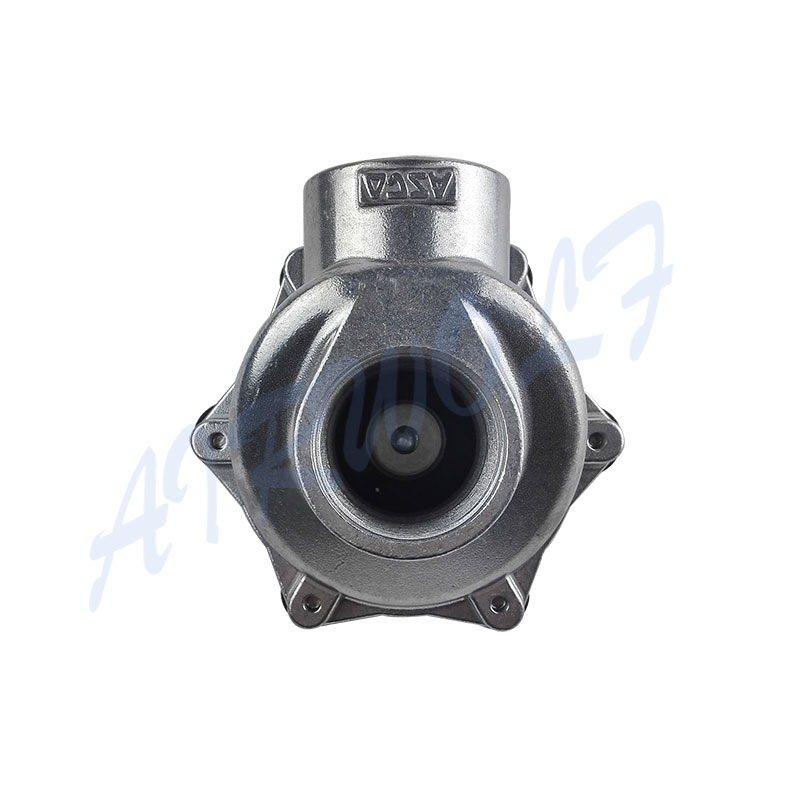

ASCO type 1-1/2 inch Aluminum alloy Double diaphragm G353A046 Pneumatic pulse jet valve



CONSTRUCTION

◈Body: Aluminum alloy

◈ Diaphragm:  TPE (hytrel)

◈ Ambient temperature range: -20 to +85°C

◈ Differential pressure (PS)  0,35 - 8,5 bar [1 bar = 100kPa]

◈ Electrical safety:    IEC 335

◈ Shading coil: Copper

◈ Size:3/4"

◈ Type:Normal Colse



part.1

The valves with long operating life,even under extreme conditions.



part.2

All parts are now accessible for cleaning or replacement.



part.3

ASCO components are intended to be used only within the technical characteristics as specified on the nameplate. Changes to the equipment are only allowed after consulting the manufacturer or its representative. Before installation depressurise the piping system and clean internally.The equipment may be mounted in any position.The flow direction and pipe connection of valves are indicated on the body.



part.4

After maintenance, operate the valve a few times to be sure of
proper operation.



part.5

Before pressurising the system, first carry-out an electrical test. In case of remote pilot solenoid valves, energise the coil a few times and notice a metal click signifying the solenoid operation.

◈Voltages:The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.

Package

◈Packaging Details:plastic bags,boxes, carton, pallet or as customer advice

◈Payment Terms:T/T, Western Union,Paypal

◈Supply Ability:1000 pieces per 12 working days.

◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.

◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.

◈Weight:0.7kg
