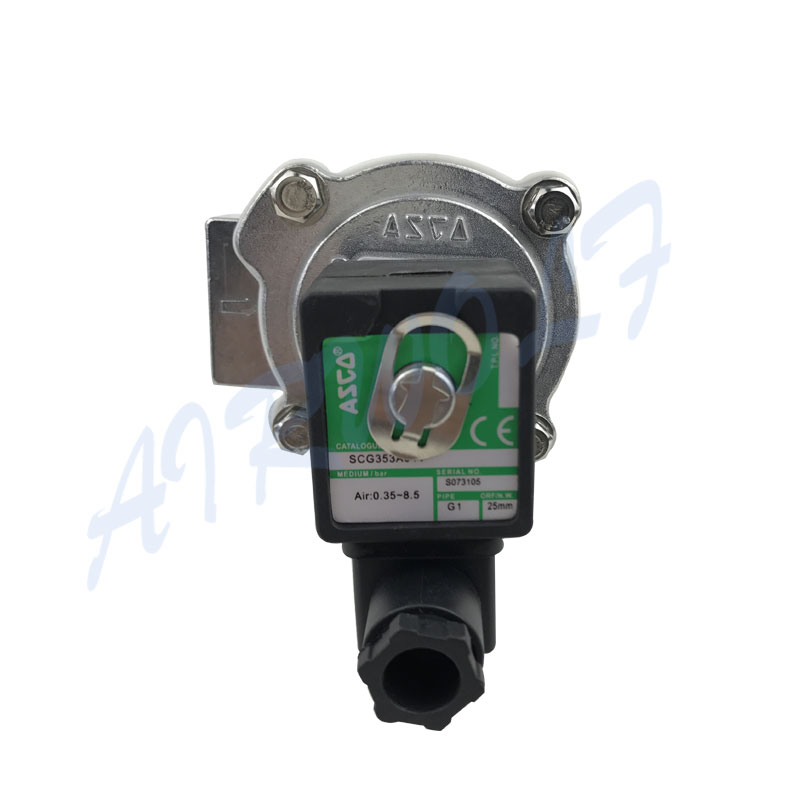

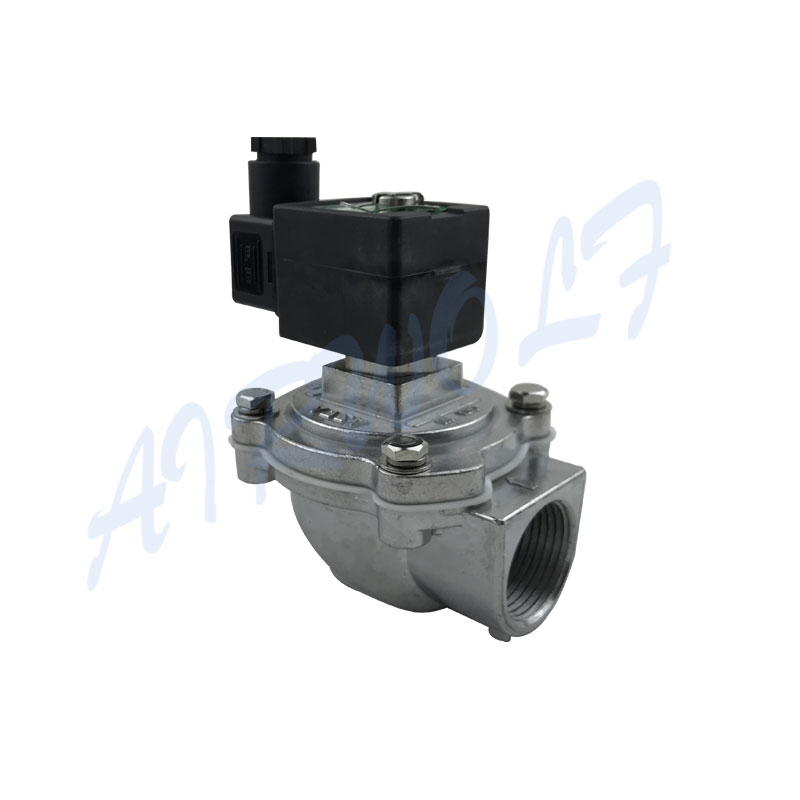

FEATURES
1.The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation
2.The high flow, angle type bodies, springless construction, in combination with the special diaphragm assemblies give the unique operating features required for dust collector service applications
3.The design with integral compression fittings will facilitate installation because there is no need for threaded piping
4.Built-in silencers guarantee noise free operation and avoid foreign particles entering the valve
5.The integral operators are provided with epoxy moulded F-class coils. Various optional waterproof and explosionproof solenoids for use in potentially explosive atmospheres (gas & dust) according to Directive ATEX 94/9/EC can be mounted on the same basic valve (see page 45 till 52)
◈Body: Aluminium
◈ Diaphragm: TPE (hytrel)
◈ Ambient temperature range: -20 to +85°C
◈ Differential pressure (PS) 0,35 - 8,5 bar [1 bar = 100kPa
◈ Electrical safety: IEC 335
◈ Shading coil: Copper
◈ Size:1"
◈ Voltage:24VDC
◈ Type:Normal Colse
◈Voltages:The coil has a wide selection of coils available to meet your needs. Most coil terminations are available with our standard voltages of 12V and 24V in DC, and 120V and 240V in AC. Voltages 6V, 10V, 18V,36V, 48V DC and 440V AC are also available for many termination types at a slight premium. Contact your representative should your application call for voltages other than our standard offering.
◈Packaging Details:plastic bags,boxes, carton, pallet or as customer advice
◈Payment Terms:T/T, Western Union,Paypal
◈Supply Ability:1000 pieces per 12 working days.
◈If order is not big enough, we will provide Door To Door service, we cooperate with UPS,DHL,FEDEX,TNT all year round,we gurantee that the shipping price that we offer to you is the most favorable price among so many suppliers in China.
◈ By Air or By Sea through your forwarder is acceptable, if you have no forwarder in China, we also could find you cost-effective forwarder for your reference.
Technical data
◈Weight:0.75kg
