Asco 2.5-inch Diaphragm Repair Kit C113686 Pulse Valve Scg353a051 Dust...

Product Information

Delivery Time: 5-7

Start Port: Ningbo

Supply Ability: 5000

Product Description

Ordering Code	Fitted Valve Code	Valve port size	Material
C113443	G353A041, G353042	3/4", 1"	TPU / NBR
C113444	SCG353A043, SCG353A044	3/4", 1"	TPU / NBR
C113825	G353A045	1 1/2"	NBR / BUNA
C113826	G353A046	1 1/2"	NBR / BUNA
C113827	SCG353A047	1 1/2"	NBR / BUNA
C113685	SCG353A050, SCG353A051	2" ,2 1/2"	NBR / BUNA
C113686	G353A048, G353A049	2.5“	NBR / BUNA
C113928	SCEX353.060	3"	NBR / BUNA
Note: VITON materials are also available

ASCO Type C113685 C113686 NBR Diaphragm For Pulse Jet Valve

Brando is a dust collector diaphragm valve & diaphragm repair kits manufacturer for replace almost popular brands, suck like Goyen, ASCO, Mecair, Norgern, Joil, Turbo and so on. The following is C113685 / C113686 diaphragm repair kit for ASCO 2'' SCG353A050, 2 1/2'' SCG353A051 diaphragm valves. The all series of valves, related armature assembly and solenoid coil are all supplied.

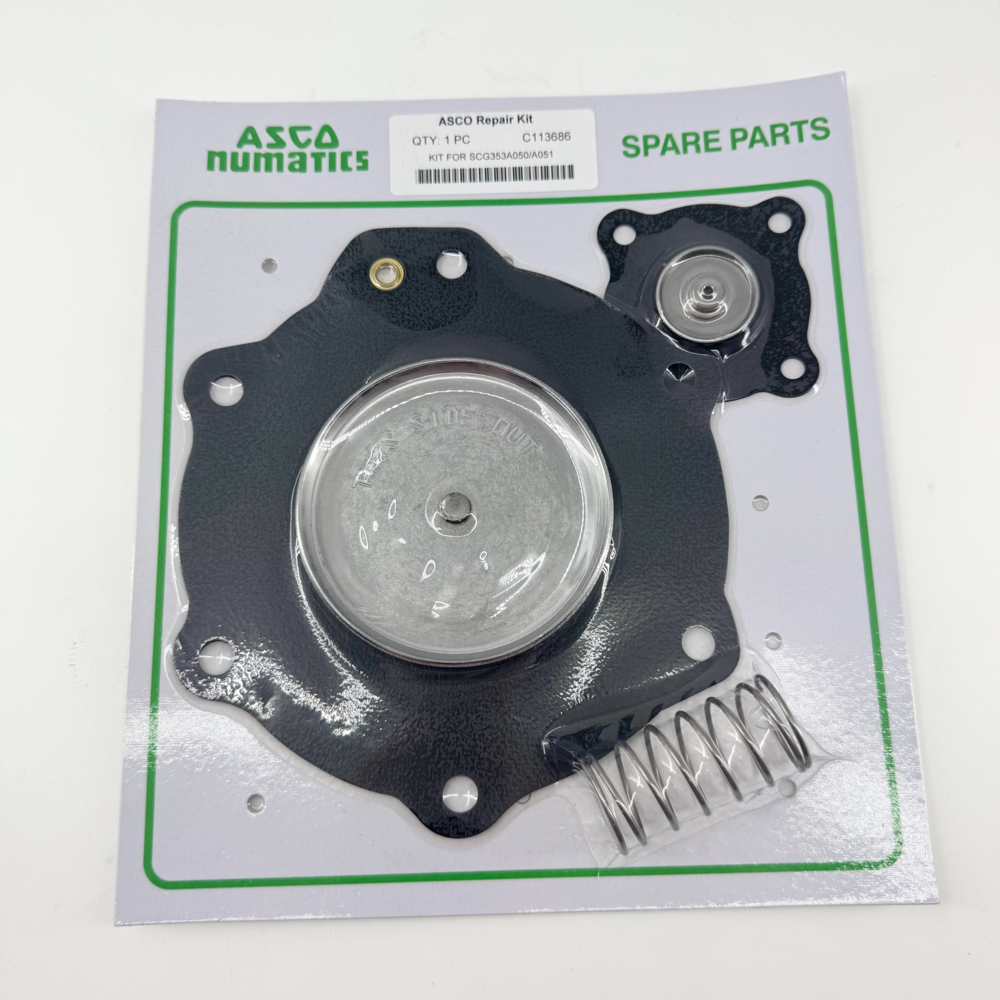

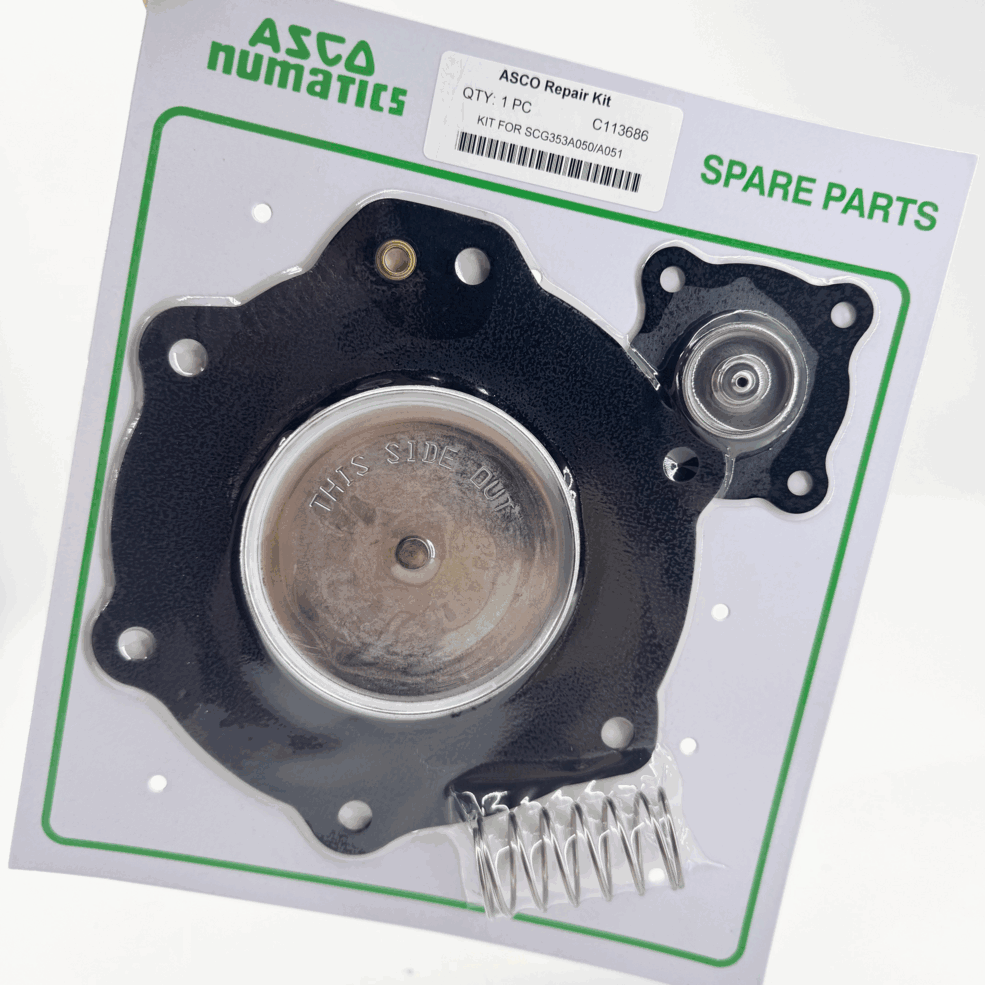

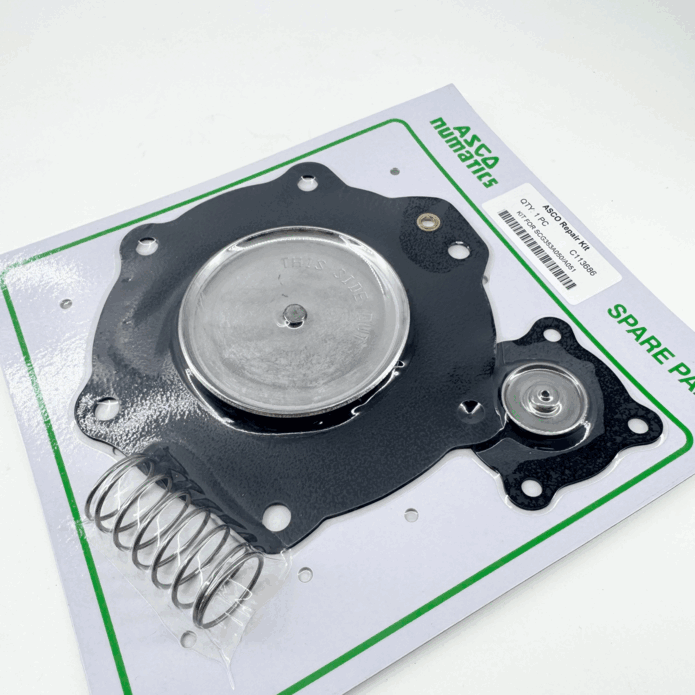

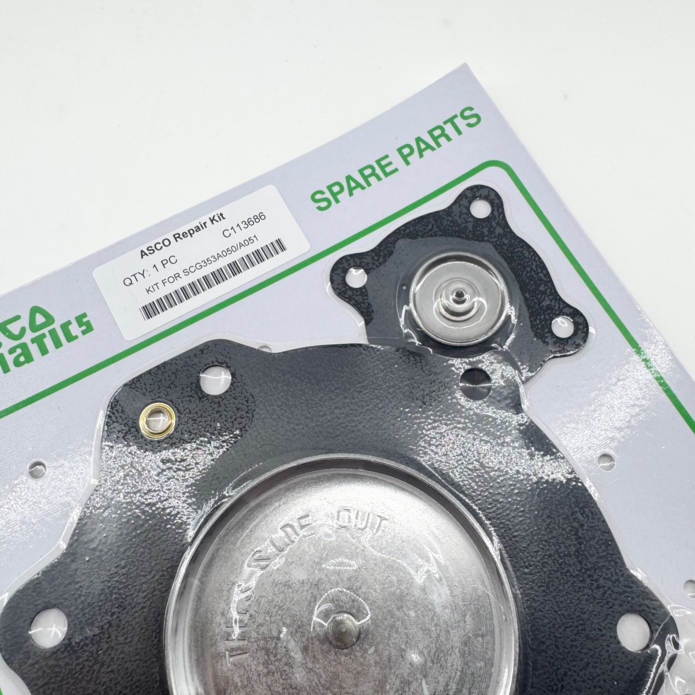

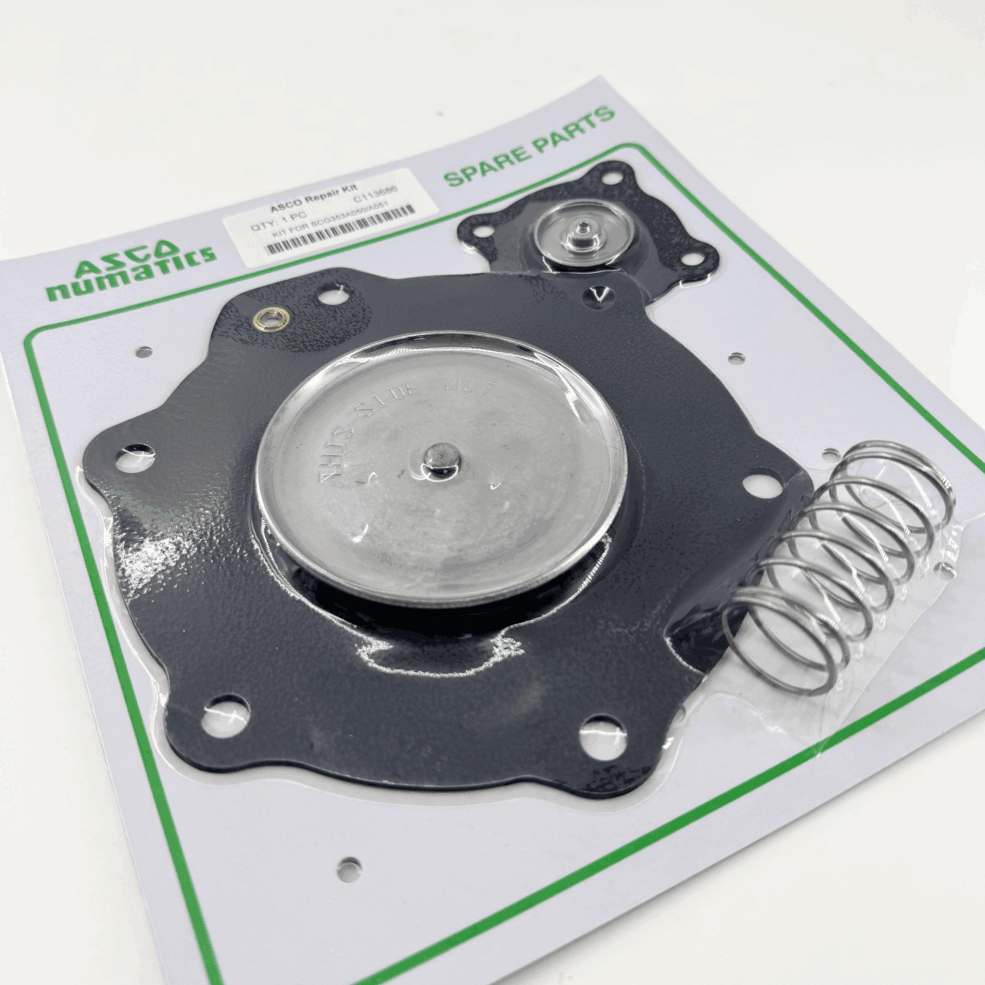

ASCO Replacement C113685 / C113686 is a diaphragm repair kit that helps you repair and replace ASCO valves sized 2” & 2 1/2''. The repair kit comes with 1 nitrile main diaphragm, 1 secondary diaphragm and 1 stainless steel spring to help replace SCG353A050, SCG353A051 valves.

1. Product Name: C113685 / C113686 Diaphragm Repair Kit
2. Diaphragm Material: NBR (Nitrile)
3. Diaphragm Outer Distance: 145mm
4. Center Distance: 145.5mm
5. Mounting Hole Size: 8.5mm
6. Applicable Valves: 2'' SCG353A050, 2 1/2'' SCG353A051
7. Spring: 1
8. Bleed Hole: 1
9. Packaging: Individual Plastic Bag Sealed

Products Show
