Material: Nitrile, Viton
Certification: CE
Availability: OEM
Delivery Time: 1-3 work days
Start Port: Ningbo/Shanghai
Supply Ability: 10000 PCS/Week
Company Advantages1. solenoid valve repair kit from AIRWOLF CO, LTD mainly uses high-end Nitrile Diaphragm repair kit materials.
2. This product is exquisitely handled to reduce the flashing screen problem even when it is dimmed to a very low level.
3. If there's one thing that's certain about wearing this garment, it's that it makes the wearer feel better.
4. People who wear it will feel cool and breathable. It can absorb the wearer's sweat and body odor, providing cool wearing experience.

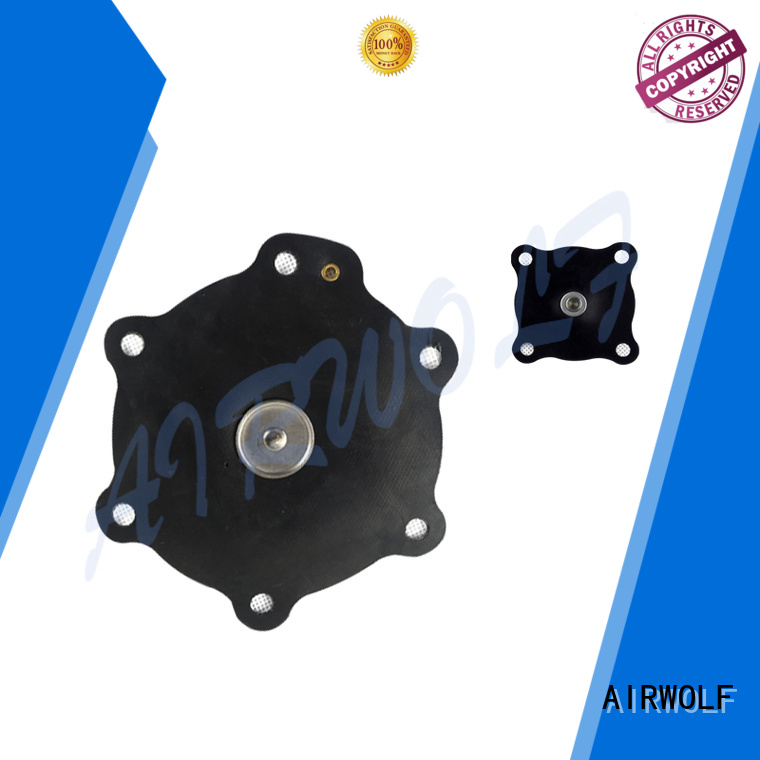

C113684 is diaphragm repair kits for ASCO 2 Inch and 2-1/2 Inch pulse valve. Like
G353A048 and G353A049. Have two material to chose: Viton and Nitrile.
◈Model: C113684
◈Color: Black
◈Working pressure: 0.05-1.0 Mpa
◈Working Temperature: -20ºC- +82 ºC
◈Cover: SS304Feature
part.1
The diaphragm consists of one or more layers coated on both sides. Diaphragms of different materials can be manufactured according to the requirements of use.
part.2
The injection life can reach 1 million times or use for 3 years.
part.3
It is used in pulse bag filter and installed in pulse valve to block compressed air pipeline.
part.4
Aging resistance
Long service life
Working Principle
When different pressure (or force) acts on both sides of the diaphragm of the pulse valve, the diaphragm moves to the lower side of the pressure, resulting in the displacement of the center of the diaphragm.
Ordering Code | Fitted Valve Code | Valve port size | Material |
C113443 | G353A041,G353042, | 3/4", 1" | TPU / NBR |
C113444 | SCG353A043, SCG353A044 | 3/4", 1" | TPU / NBR |
C113825 | G353A045 | 1 1/2" | NBR /BUNA |
C113826 | G353A046 | 1 1/2" | NBR /BUNA |
C113827 | SCG353A047 | 1 1/2" | NBR /BUNA |
C113685 C113686 | SCG353A050,SCG353A051,G353A048,G353A049 | 2" , 2 1/2" | NBR /BUNA |
C113928 | SCEX353.060 | 3" | NBR /BUNA |

Company Features1. As a well-known production-oriented enterprise, AIRWOLF CO, LTD has accumulated years of experience in the manufacturing of solenoid valve repair kit .
2. We have a team responsible for exports and distribution. They have years of experience in developing markets. This team helps oversee the distribution of our products to our customer base all over the world.
3. AIRWOLF has been always concentrating on the improvement of diaphragm valve repair. Please contact. Take every chance to achieve the value is the dream of every staff in AIRWOLF. Please contact. Our air valve repair kit can meet customers for different positioning and requirements of diaphragm valve repair kit . Please contact.
