Detailed Description

Series X6000 fittings have been designed to offer versatility and ease of installation without any compromise in quality or performance. They are suitable for applications in the pneumatics, fluids, chemical, medical, food and packaging industries.The fittings are practical and safe and allow the connection of fluids even in aggressive environments, the collet ensures excellent grip between the fitting and tubing.

The pneumatic joint is a quick joint mainly used for air piping and pneumatic tools. When the joint of the pipeline is connected or disconnected without a tool, the joint is not linked. When the ferrule of the mother body is moved to the other end, the stainless steel bead is automatically Rolling outward, the child body is broken due to the action of the spring force of the mother and the child together, and the valves of the child body and the mother body are respectively closed to instantaneously block the fluid flow.

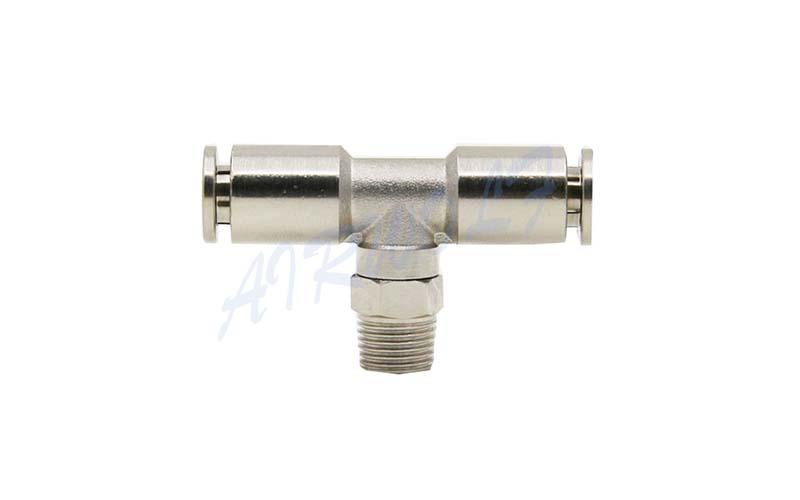

AIRWOLF steel pneumatic pipe fittings durable for piping system-1

Materials

◈Body: Stainless steel 316L

◈Seals:FKM Alimentary

◈Supporting ring:Stainless steel 316L

◈Clamping gripper:Stainless steel 301

◈Release bushing:Stainless steel 316L

Threads

◈ GAS conical ISO 7 (BSPT)

◈GAS cylindrical ISO 228 (BSP)

Feature

AIRWOLF steel pneumatic pipe fittings durable for piping system-2

part.1

High temperature resistance

AIRWOLF steel pneumatic pipe fittings durable for piping system-3

part.2

Easy to install

AIRWOLF steel pneumatic pipe fittings durable for piping system-4

part.3

Long lasting

AIRWOLF steel pneumatic pipe fittings durable for piping system-5

part.4

Wide range of applications, such as pneumatics, fluids, chemical, medical, food and packaging industries etc.

AIRWOLF steel pneumatic pipe fittings durable for piping system-6

part.5

Suitable for pneumatic pipelines, compressed air, nitrogen connections, pipelines can be frequently loaded and unloaded at work positions

Specification

AIRWOLF steel pneumatic pipe fittings durable for piping system-7

AIRWOLF steel pneumatic pipe fittings durable for piping system-8

◈Max Pressure:18 bar

◈Fluid:Compressed air and drinking water

◈Temperature:-15°C to 150°C

◈Diameters:4 - 6 - 8 -10 - 12 mm

◈Tube to connect:PA 6-12, Rilsan PA11, Polyethylene, PU, Polyester Hytrel

Dimensions

Model	A	C	D	E	F	H	L
X6430 4-1/8	4	4.3	R1/8	15.3	10	8	33.6
X6430 4-1/4	4	4.3	R1/4	15.8	10	10	33.6
X6430 6-1/8	6	8.8	R1/8	16.1	11.9	8	44.6
X6430 6-1/4	6	5.8	R1/4	18.6	13	10	38.6
X6430 8-1/8	8	8.3	R1/8	17.3	15	8	48.8
X6430 8-1/4	8	8.3	R1/4	18.5	15	10	48.8
X6430 10-1/4	10	10.7	R1/4	21.1	17.4	10	55.8
X6430 10-3/8	10	10.7	R3/8	20.9	17.4	11	55.8
X6430 12-1/4	12	9.5	R1/4	21.1	20	10	57
X6430 12-3/8	12	9.5	R3/8	20.9	20	11	57
X6430 12-1/2	12	15.6	R1/2	19.4	20	13	57
