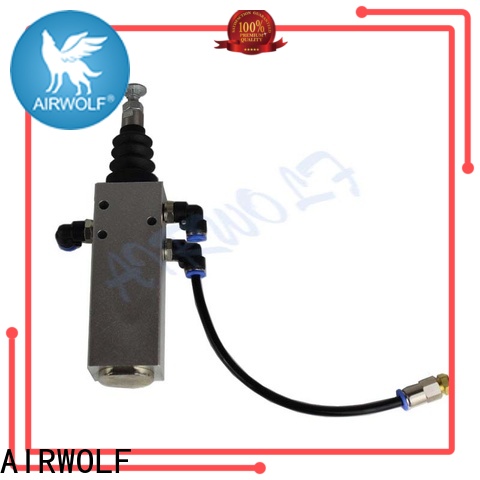

AIRWOLF ring dump truck control valve ask now water meter



Product Features

◈ Body Material: Aluminum

◈ Seal Material: HNBR

◈Working Pressure: 0.5-12 Bar

◈ Ambient temperature: -55℃-180℃

◈ Port Size: 1/8"

◈ Pressure reset and Spring resert Structure

◈ Flexible action

◈ Long Compression stroke

◈Manually adjust is Available

◈ Long service life

◈Able to coordinate with the Pneumatic control valve



part.1

Push the air control valve handle to the "lift" section



part.2

The cylinder is extended and the car body is lifted



part.3

When the cage body is lifted to the set Angle, the oil cylinder or support should contact and push the limit valve stem



part.4

lift valve to continue to lift the cylinder, the corresponding cylinder or support to further promote the limit valve stem



part.5

The lifting valve is reset to the initial state



part.6

Cylinder stop lifting.



Packaging

◈ Packaging Details:plastic bags,boxes, carton, pallet or as customer advice

◈ Payment Terms:T/T, Western Union,Paypal

◈Supply Ability:1000 pieces per 12 working days

◈To simplify the proces of choosing the right adapters and mounting equipment has prepared tippingvalve kits for tank mounted and chassis mounted valves. We have options with straight or 90 connectionsfor 3/4" & 1" high pressure hoses.

◈Pneumatic limit valve is often used in the hydraulic lifting device of dump truck. Its function is to immediately reset the lifting valve stem to the initial state when the car body is set with a certain lifting Angle. The high-pressure hydraulic oil flows back to the oil tank and makes the cylinder stop lifting the car body.
