Detailed Description

It is a 3/2 way Single solenoid valve for air,The acting is piloted,Solenoid valve is industrial equipment controlled by the electromagnetic.The solenoid operated spool valves have threaded port connections and "NAMUR"interface.belongs to the actuator.Offers Automatic industrial lined pneumatic valves for allpneumatic cylinders. It has good gightness and sensitive reaction,and available to form integrated valve group with the base to save installation space. Affiliated manual devices are equipped to facilitate installation and debugging.Several standard voltage grades are optional.

MATERIALS IN CONTACT WITH FLUID

◈ Body, end cover:Aluminium, black anodized

◈End cover (spring return):Glass fibre filled PA.

◈ Interface plates:Glass fibre filled PA.

◈Spool valve internal parts:Zamak, stainless steel, POM, aluminium.

◈Pilot internal parts:Refer to specific solenoid catalogue pages.

◈ Pilot end covers:Aluminium.

◈Core tube: Stainless steel.

◈Core and plugnut: Stainless steel.

◈ Core spring: Stainless steel

◈Seals: NBR

◈Top disc: PA.

◈Disc holder: POM

◈Cartridge (low power): Welded, stainless steel or aluminium

◈Seat: Brass

◈Seat insert: POM

◈Shading coil: Copper

◈Rider rings (low power): PTFE (NF/WSNF solenoids only)

Features

part.1

The monostable spool valves in conformity with IEC 61508 Standard (2010 route 2H version) have TUV (551 series) and EXIDA (551-553 series) certified with integrity levels: SIL 2 for HFT = 0 / SIL 3 for HFT = 1.

part.2

The same spool valve can be adapted for 3/2 NC or 5/2 functions for controlling double-acting and single acting actuators.

part.3

All the exhaust ports of the spool valve are connectable, providing better environmental protection.Particularly recommended for sensitive areas, such as clean rooms, and applications in the pharmaceutical and food processing sectors.

part.4

The valves offer environmental protection against the ingress of liquids, dusts or other foreign matter (environmentally-protected construction).

part.5

Can be externally piloted (external air pilot supply) to convert valve to zero minimum operation by flipping a gasket.

part.6

The solenoid valves satisfy all relevant EU Directives.

INSTALLATION

◈ The solenoid valves can be mounted in any position without affecting operation.

◈Pipe connections (G*) have standard combination thread according to ISO 228/1 and ISO 7/1. Pipe connections (G) have standard combination thread according to ISO 228/1.

◈ Installation/maintenance instructions are included with each valve..

OPTIONS

◈ Valves can also be supplied with FPM (fluorelastomer), EPDM (ethylene-propylene) seals, diaphragm and disc. Use the appropriate optional suffix letter for identification.

◈ Oxygen service, suffix NV, example: EF8551B401MO (Except pipe size 1/4).

Company Features
1. AIRWOLF CO, LTD plays a leading role in global marketplace of solenoid valves .
2. AIRWOLF makes good use of sophisticated manufacturing techniques to produce pneumatic solenoid valve .
3. AIRWOLF Pneumatic’s vision is to be a famous brand all over the world. Get more info! AIRWOLF will constantly develop its culture the strengthen the cohesion of the staff. Get more info! Our ambition is to win the market through our professional single solenoid valve and service. Get more info!

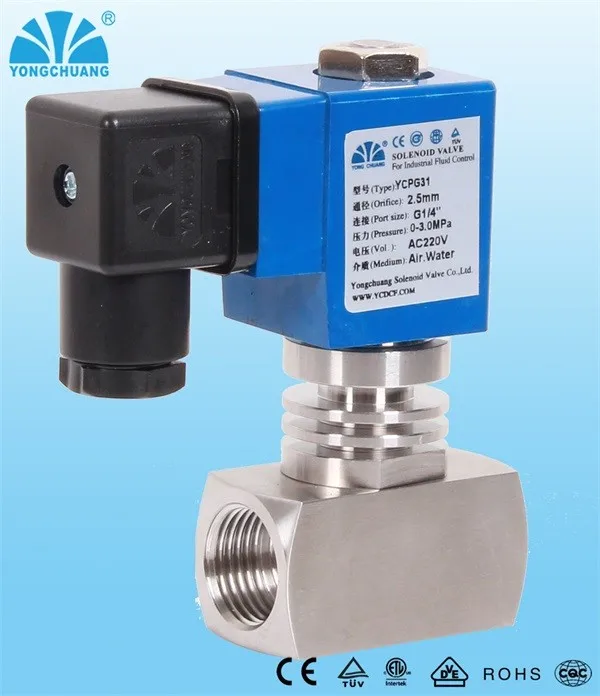

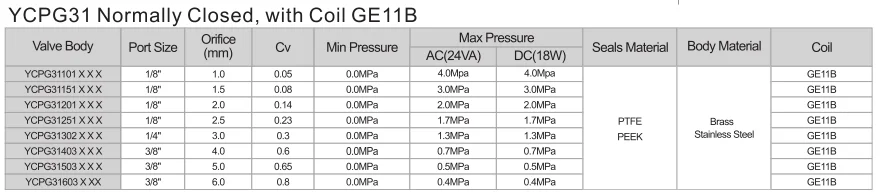

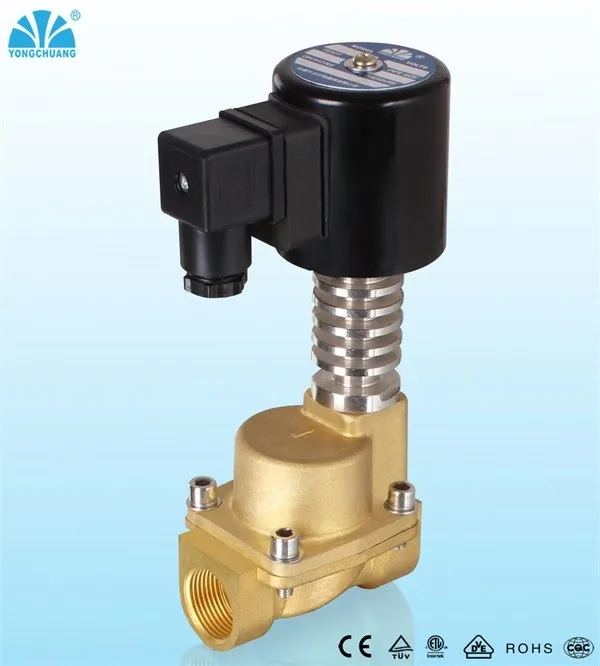

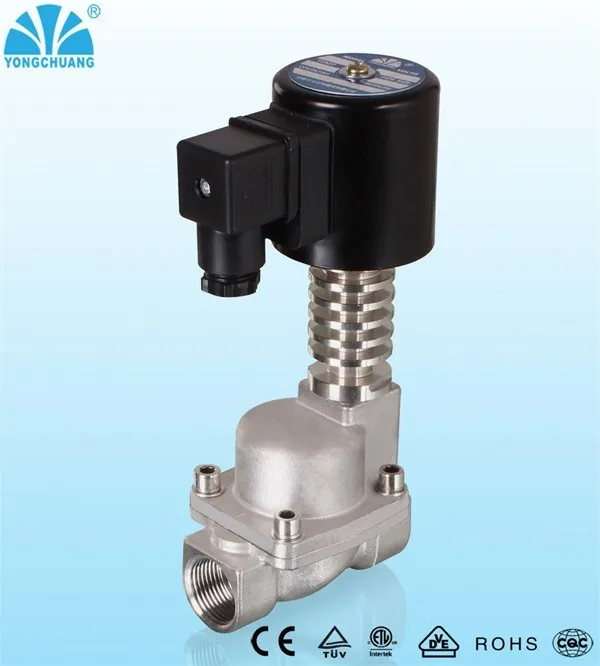

Ctic	1)Direct acting structure,low power 2)Long life time under steam and high temperature media 3)Suitable for long working pipe system.
Medium	Steam and hot water,oil.
Temperature	PEEK:-150°C to 350 °C PTFE seal :-20°C to 200 °C
Pressure	0.0-5.0Mpa
Port size	1/8',1/4',3/8'
Port thread	G,NPT
Orifice	1.0-6.0mm
Voltage	DC-12V,24V AC-24V,120V,110V,220V/50HZ
Tolerance	±10%
Coil	GE11B,5.5VA(AC),3.0W(DC),IP65,100%ED
Special coils
Material	Body- stainless steel, BRASS Seal- PEEK,PTFE Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304
